Electrical Component Locator And Harness Routing Views
›
Component Locator
›
Ground Views
›
G401, and G404

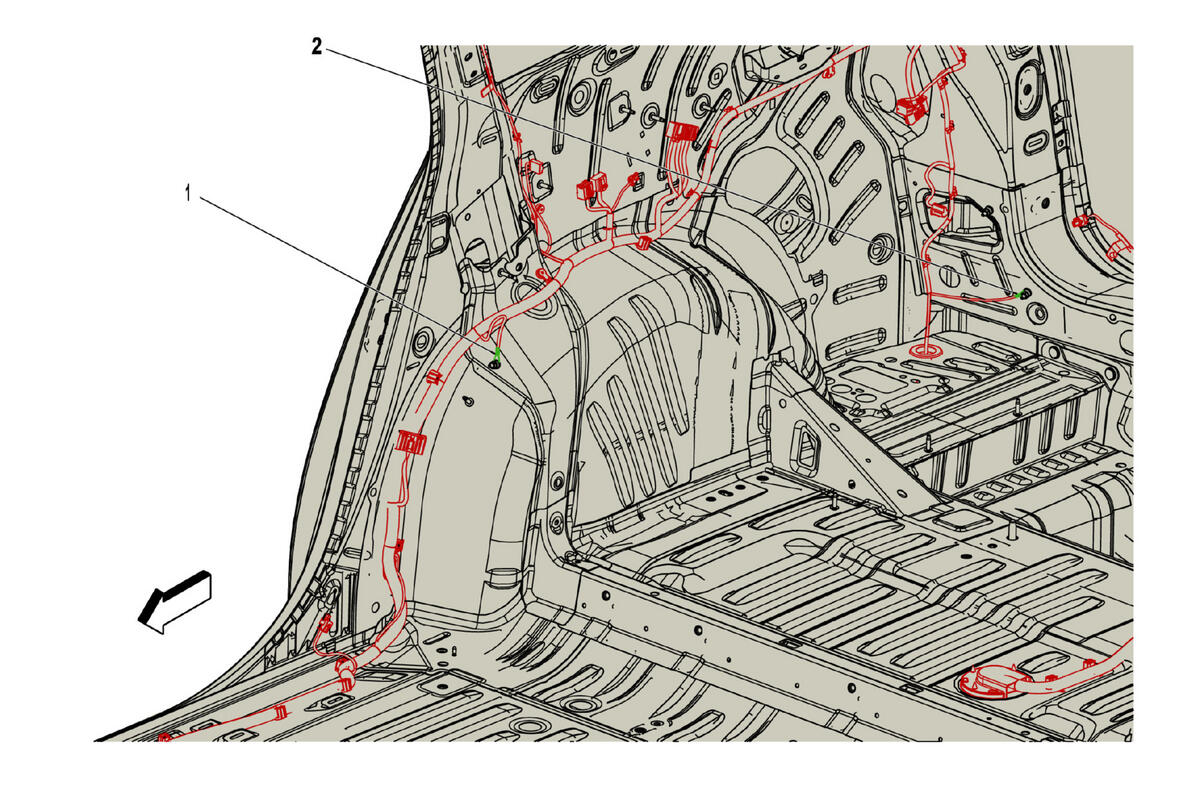

G401, and G404
Courtesy of GENERAL MOTORS COMPANY
G401, and G404
Harness Name
Callout
G401 Body Harness
1
G404 Body Harness
2
Courtesy of GENERAL MOTORS COMPANY
