Front Floor Console Armrest Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

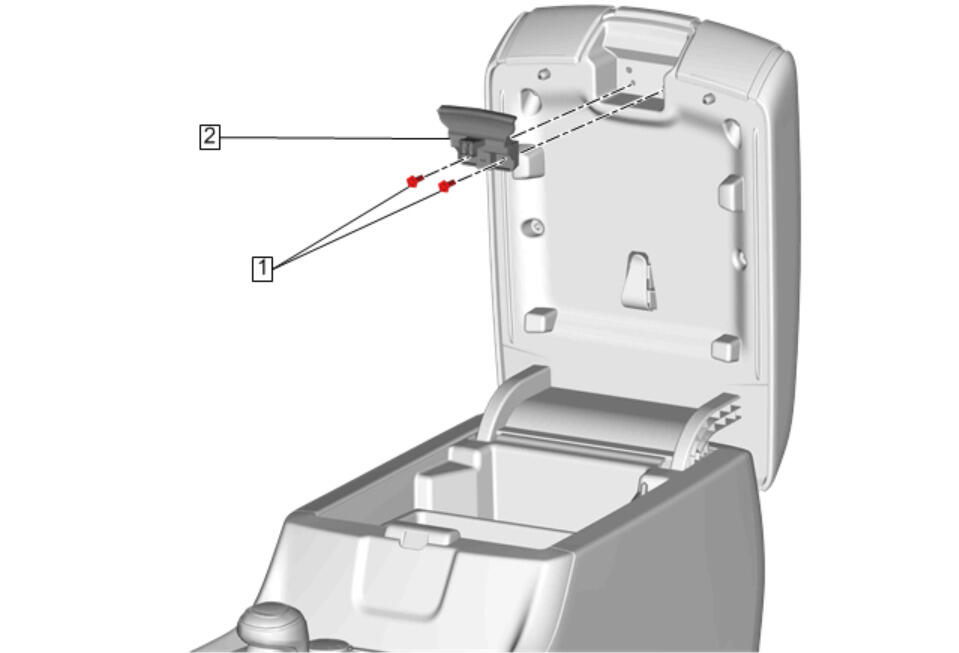

Callout	Component Name
Preliminary Procedure  Open the armrest cover.
1	Front Floor Console Armrest Latch Bolt[ 2x ] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Armrest Latch
