Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

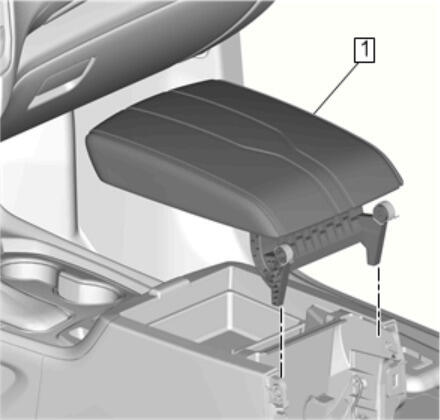

Install the front floor console armrest (1) to the front floor console.
Courtesy of GENERAL MOTORS COMPANY

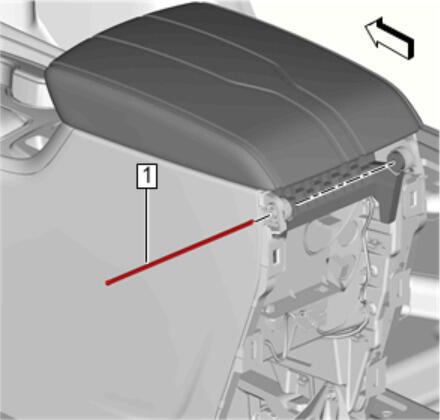

Attach the ends of the front floor console armrest hinge spring (1) to the front floor lower console.
Inspect the components and replace as necessary.
Courtesy of GENERAL MOTORS COMPANY

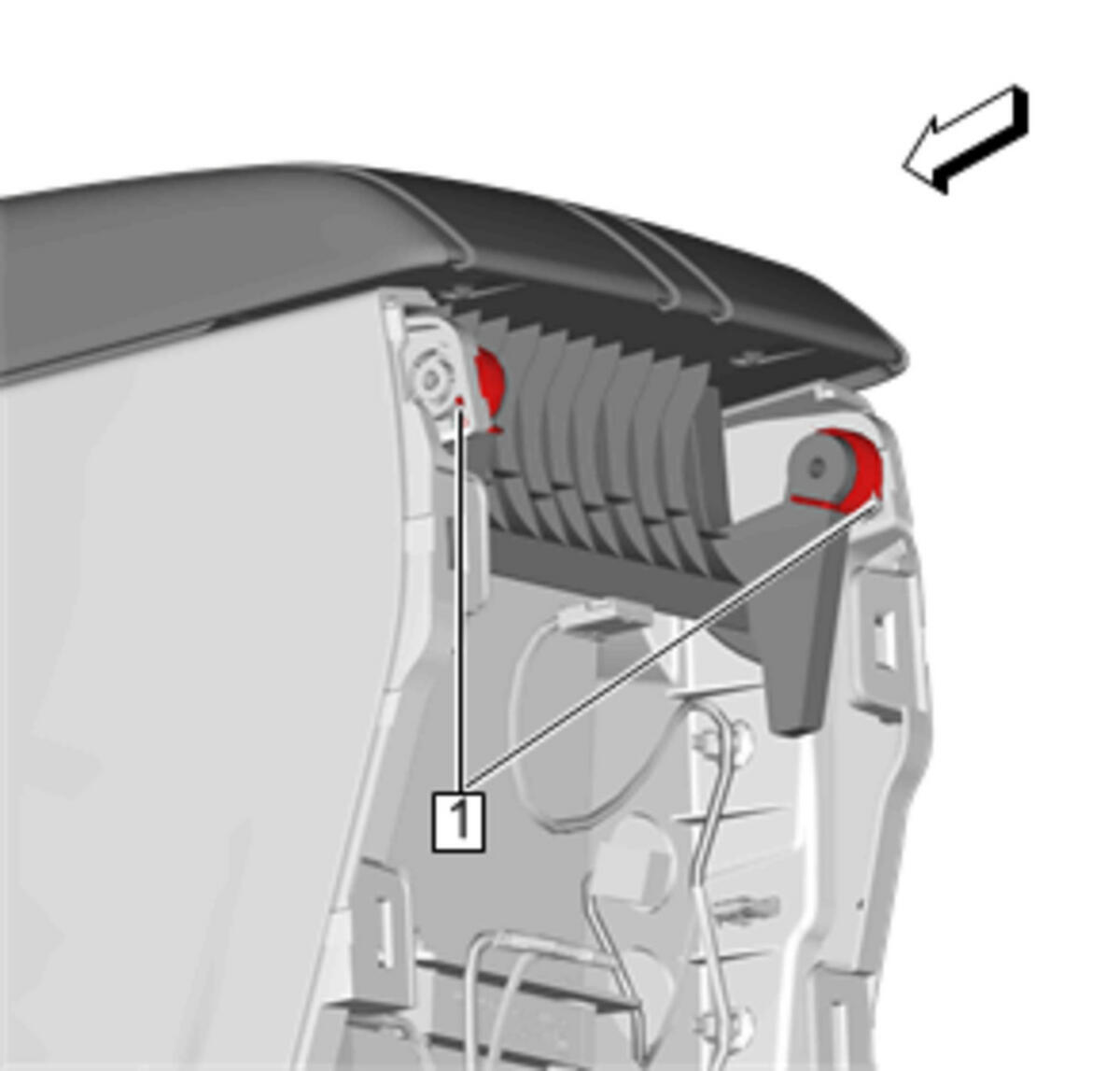

Install the front floor console armrest pivot pin (1) to the armrest.
Courtesy of GENERAL MOTORS COMPANY

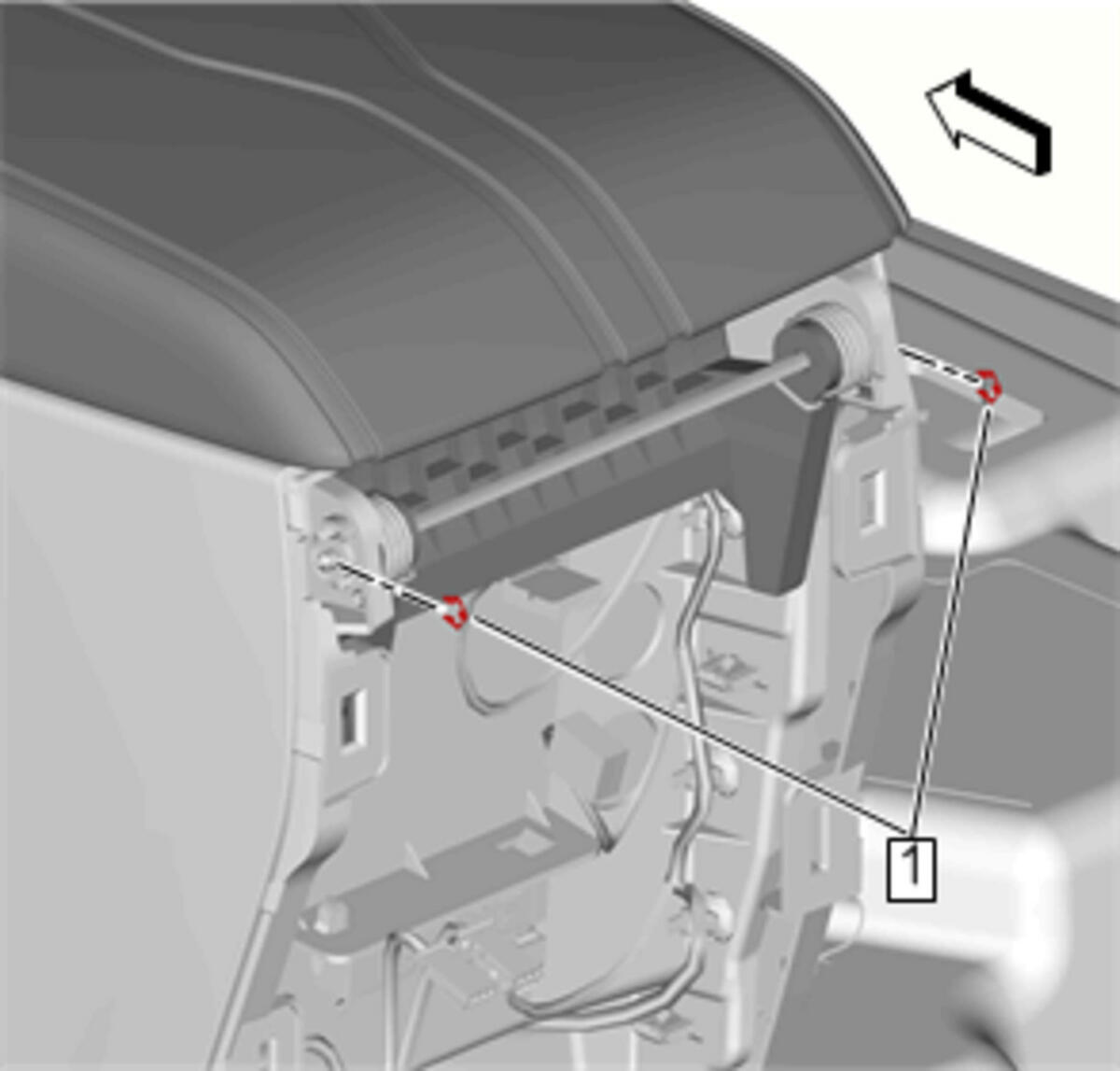

Install the front floor console armrest clips (1) to the end of the pivot pin.
Courtesy of GENERAL MOTORS COMPANY

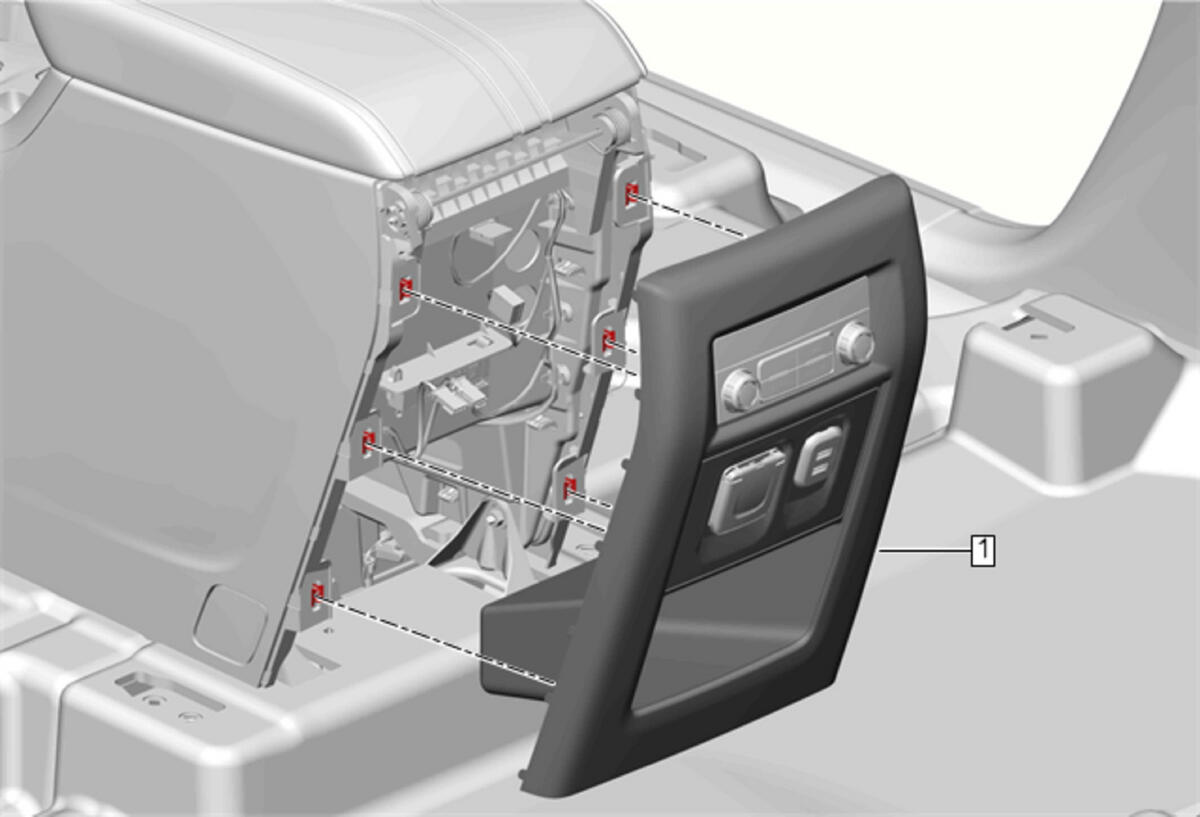

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement
