Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect all electrical connectors.
Instrument Panel Compartment Door Opening Frame (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

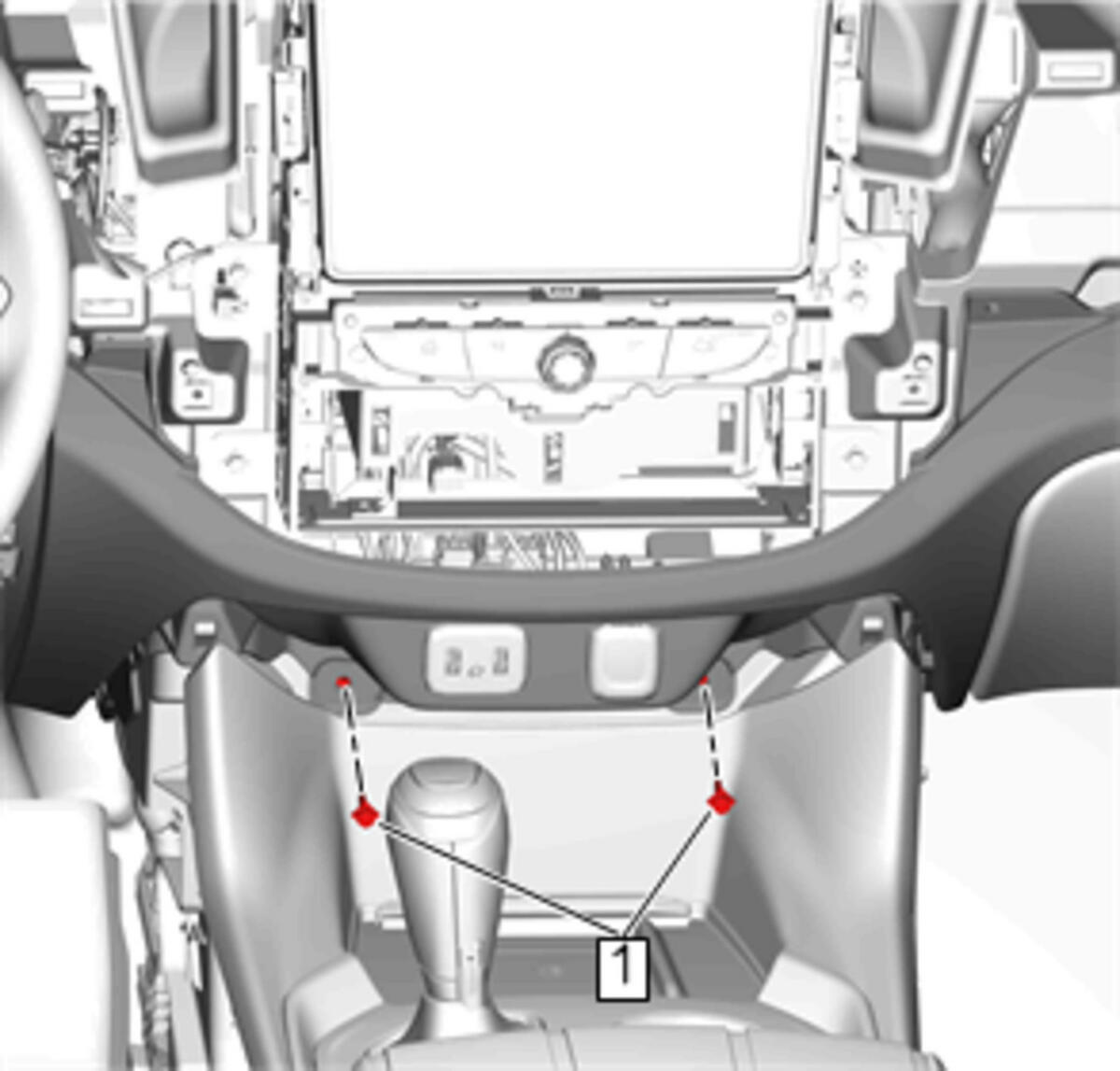

Instrument Panel Compartment Door Opening Frame Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

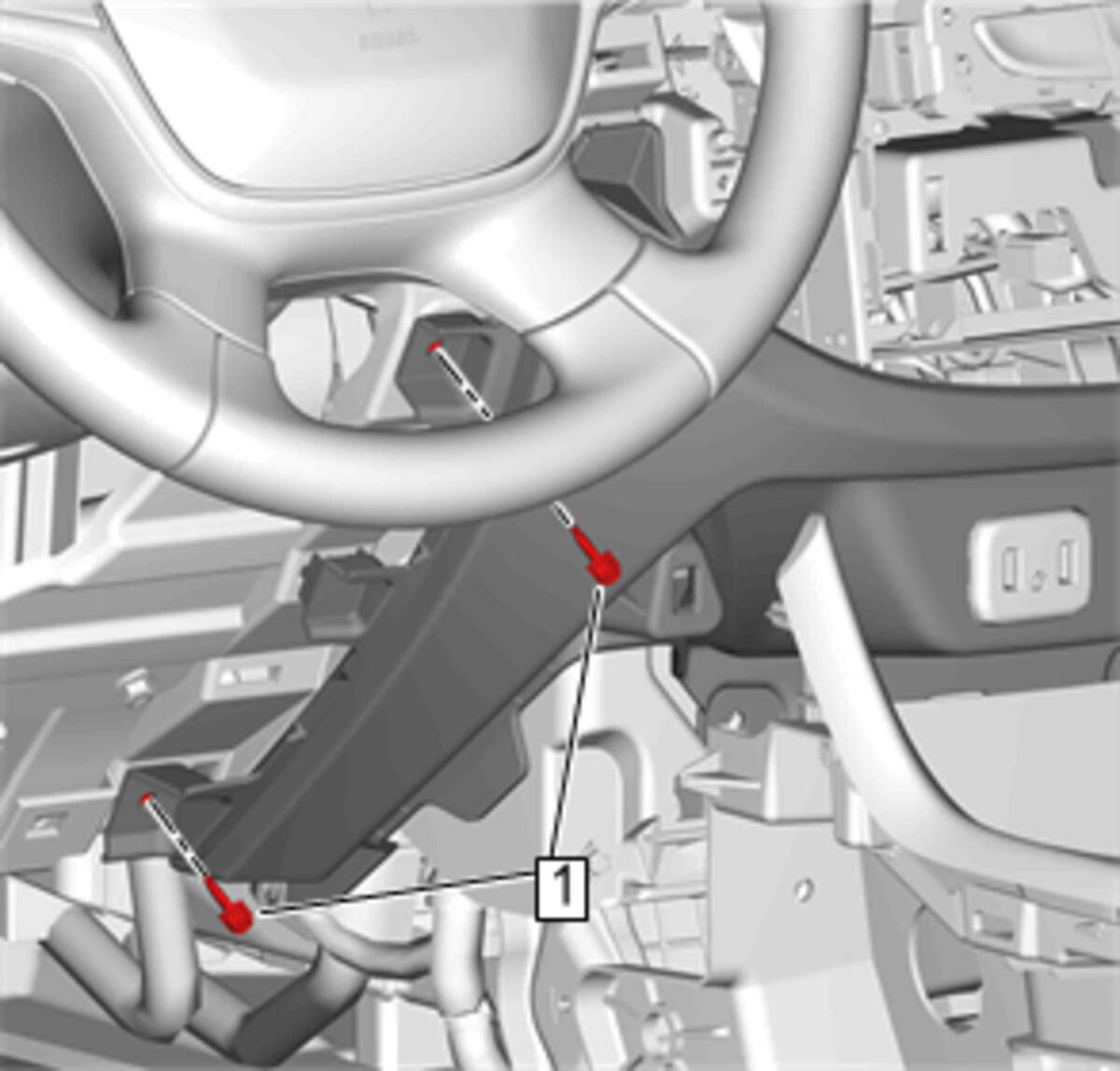

Instrument Panel Compartment Door Opening Frame Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

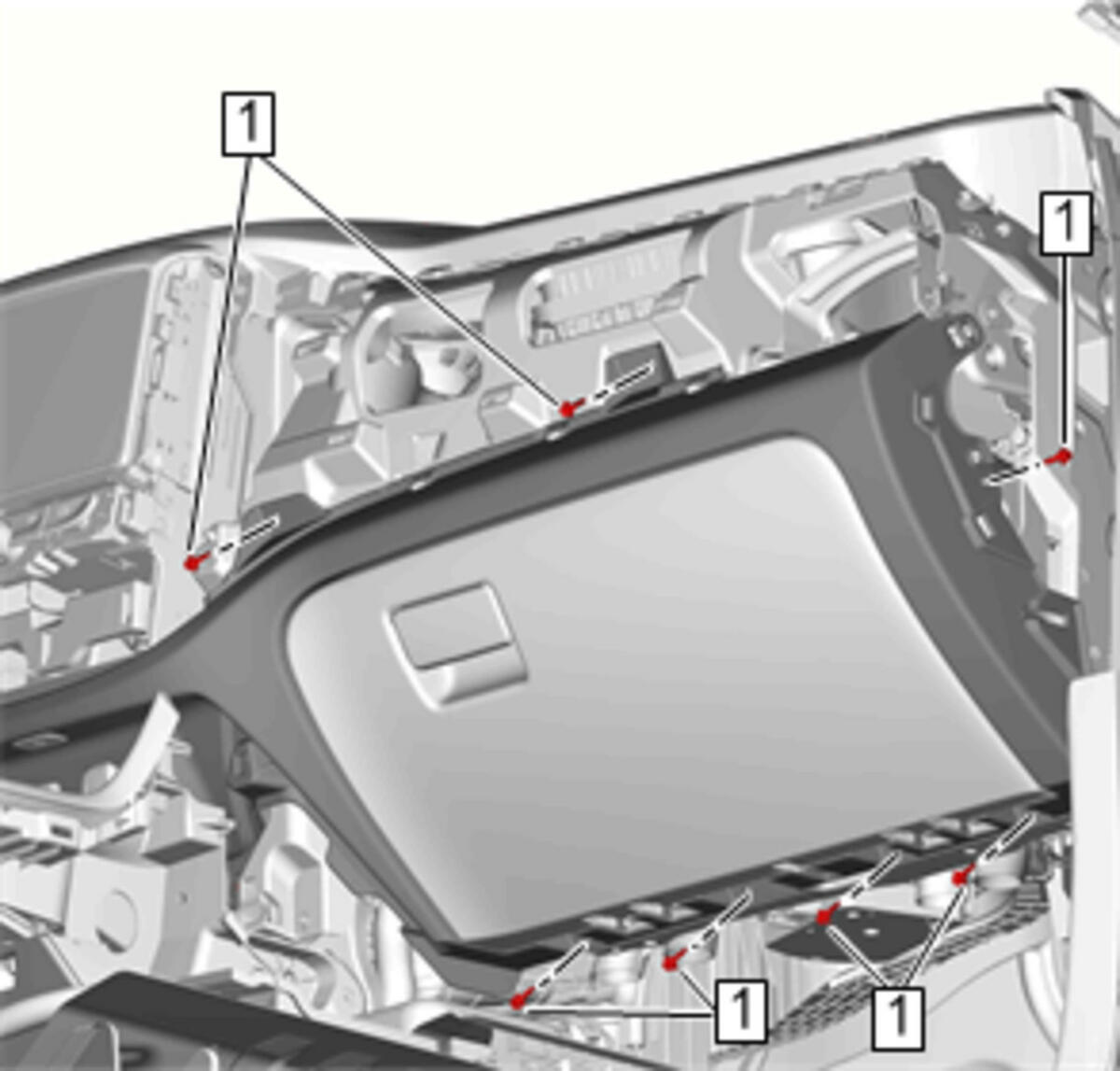

Instrument Panel Compartment Door Opening Frame Bolt (1) - Install and tighten [ 7x ] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When installing the front floor console take care in seating the auxiliary air conditioning air outlet duct to the front floor console rear air duct.

Carefully install the front floor console assembly guide pins into the instrument panel assembly.
Front Floor Console - Install - Front Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement
Instrument Panel Radio Front Trim Plate - Install - Instrument Panel Radio Front Trim Plate Replacement (IOR) , or Instrument Panel Radio Front Trim Plate Replacement (IOS, IOT)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side
