Installation Procedure

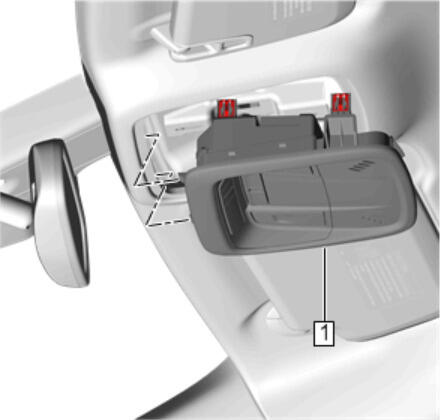

  1. GM4633907Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Insert the forward roof console (1) tabs into the headliner.

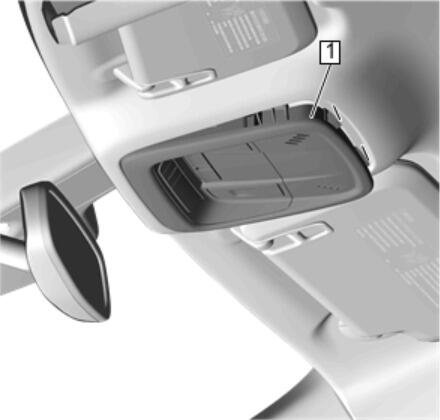

  3. GM4639588Courtesy of GENERAL MOTORS COMPANY

    Install the rearward roof console (1) tabs into the headliner.

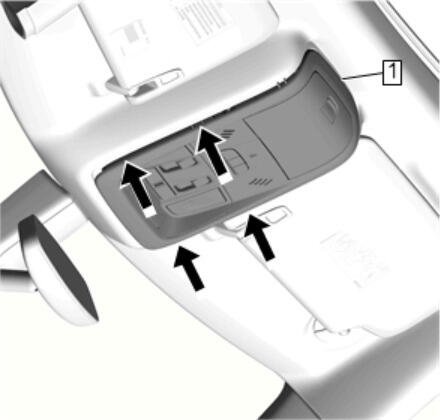

  4. GM4639586Courtesy of GENERAL MOTORS COMPANY

    Roof Console (1) - Install
