Exhaust Manifold Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

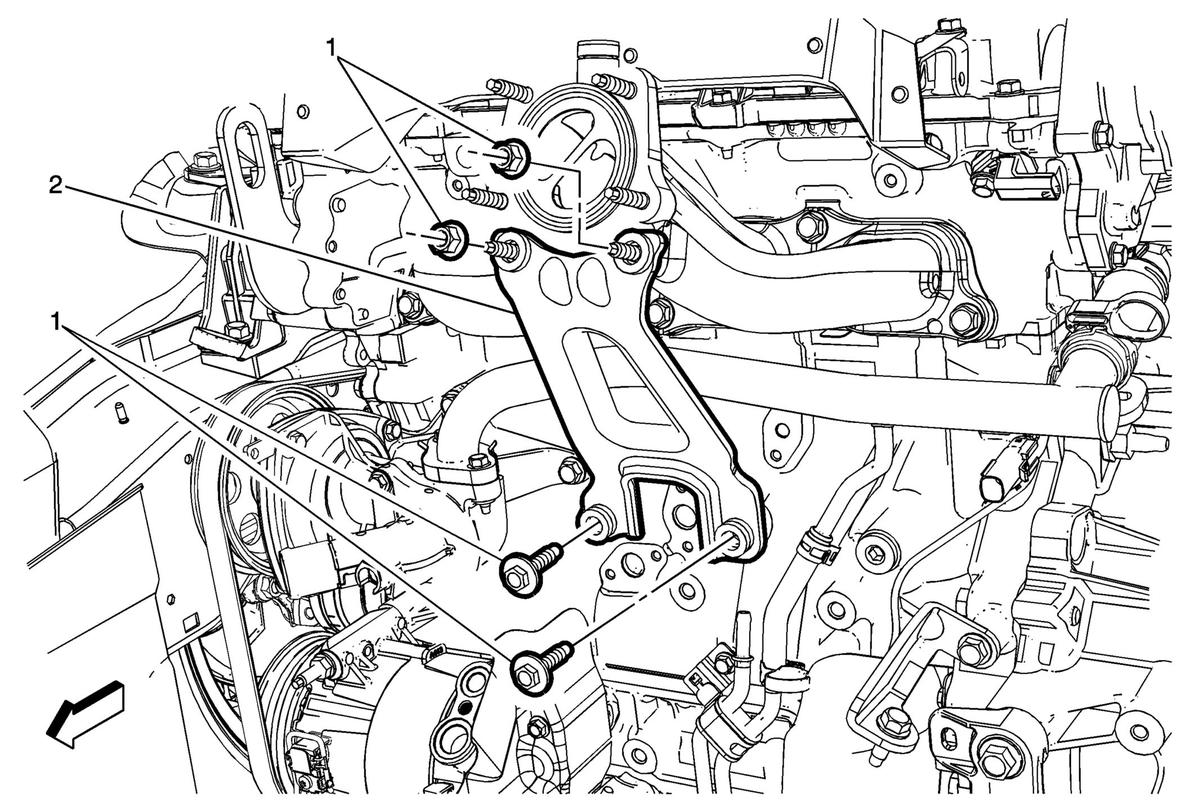

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Remove the turbocharger. Refer to .
1	Exhaust Manifold Brace Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  25 N.m (18 lb ft)
2	Exhaust Manifold Brace
