Exhaust Manifold Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

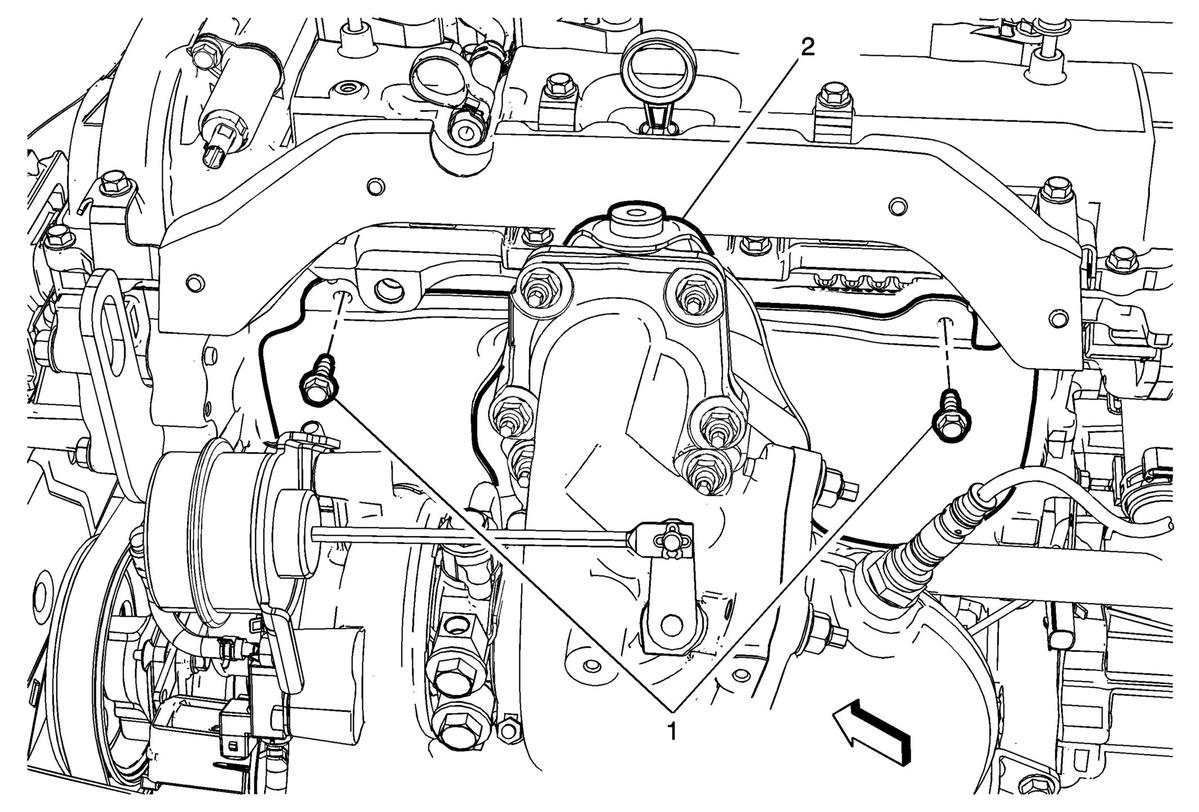

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Remove the turbocharger. Refer to .
1	Exhaust Manifold Heat Shield Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  14 N.m (10 lb ft)
2	Exhaust Manifold Heat Shield
