Inspection Procedure

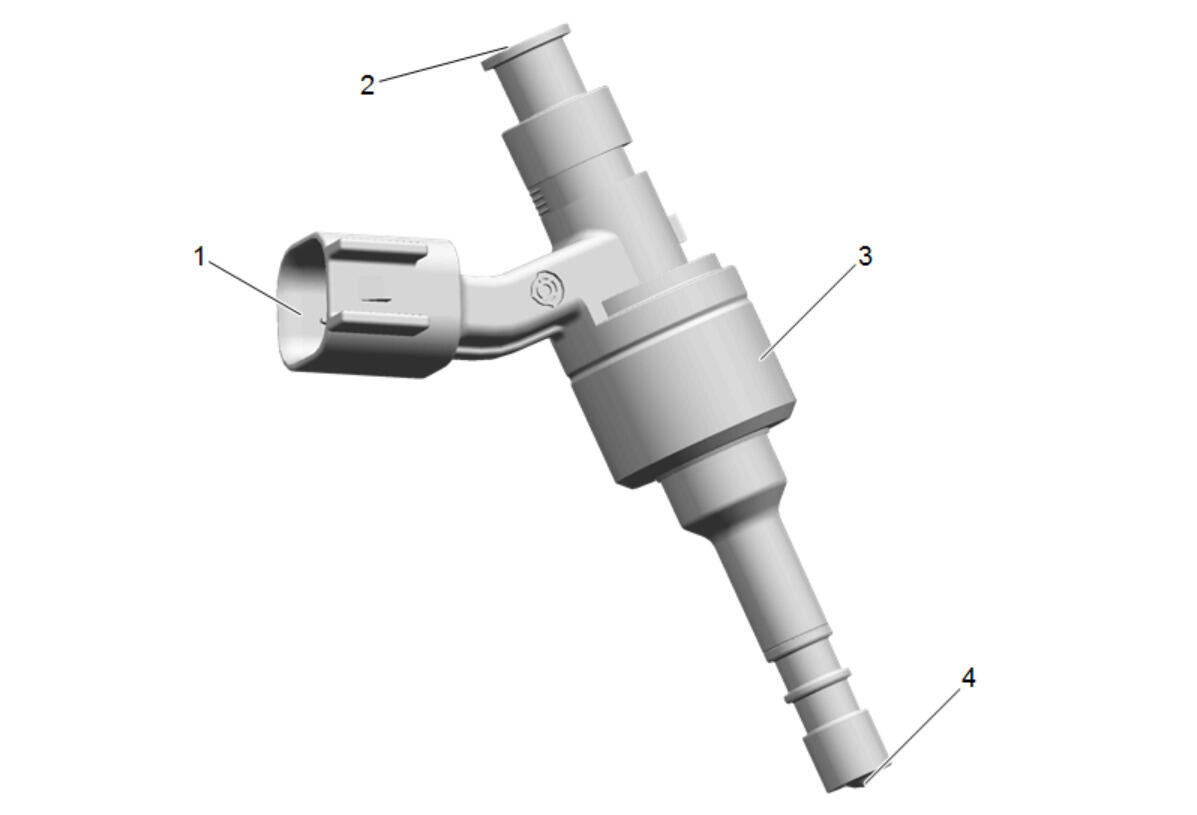

Inspect the fuel injectors for the following conditions:
- Damage to the fuel injector connector (1)
- Damage to the fuel inlet cone (2)
- Damage to the fuel injector body (3)
- Damage to the fuel injector tip (4)
- Replace the fuel rail or injector if any damage is found. Do not attempt to repair a fuel rail or injector.
