Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Seat Heating and Cooling

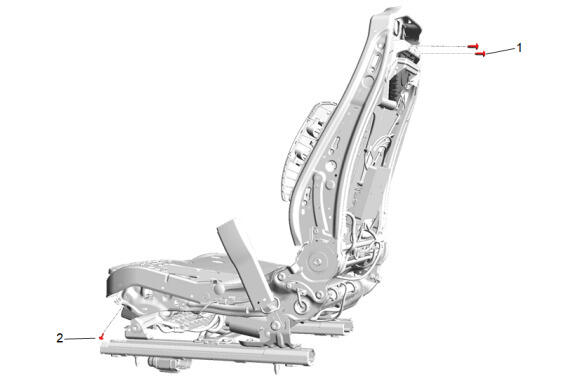

| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Back Ventilation Blower Bolt [2x] | - | - | 3 (27 lb in) | Front Seat Back Ventilation Blower Replacement |
| 2 | Front Seat Heater Vent Control Module Bolt | - | - | 2.5 (22 lb in) | Front Seat Heater Vent Control Module Replacement |
