Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

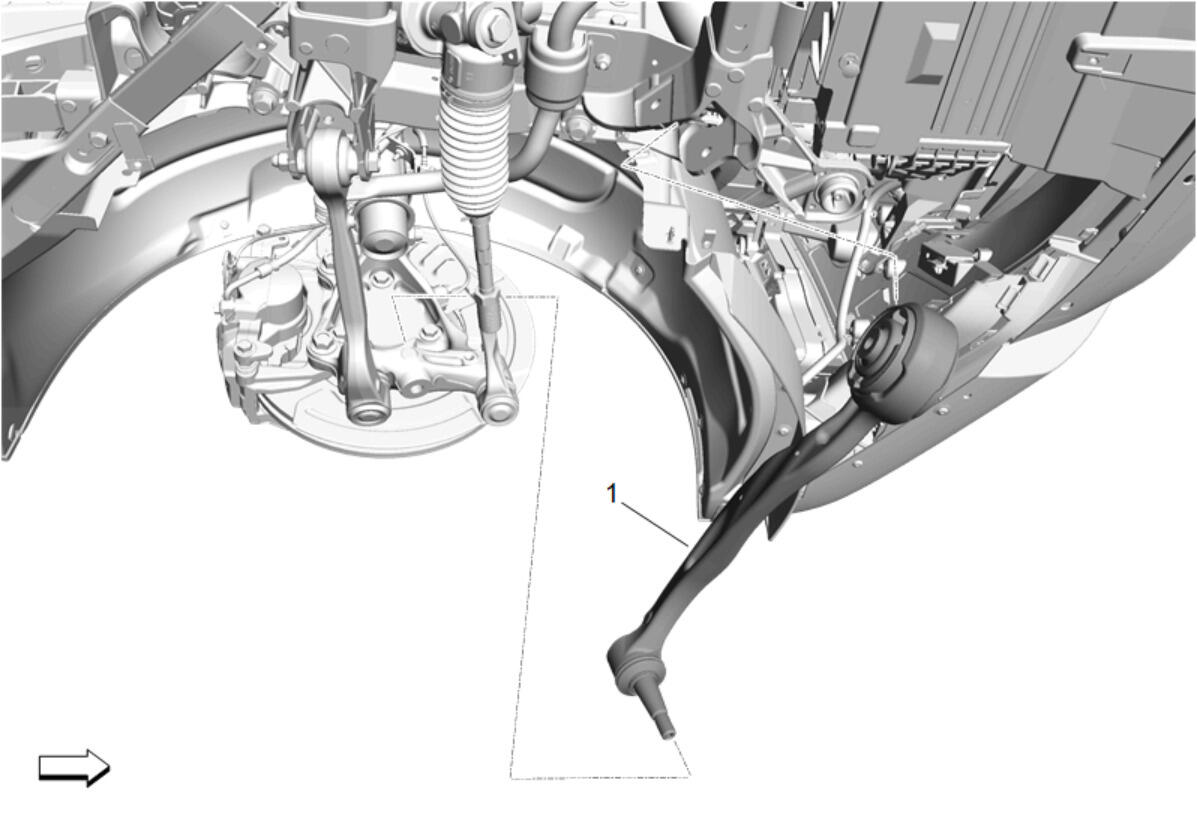

  1. GM5324714Courtesy of GENERAL MOTORS COMPANY

    Front Lower Control Front Link (1) - Install

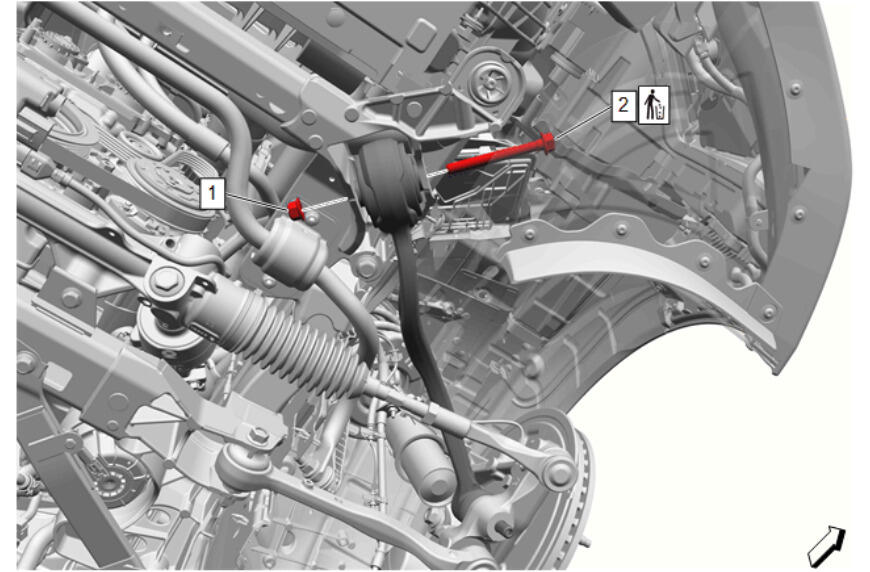

  2. GM5449506Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

    Front Lower Control Arm Front Bolt (2) - Install NEW

  3. Front Lower Control Arm Front Nut (1) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Lower Control Arm Front Bolt (2) - Tighten - Fastener Specifications

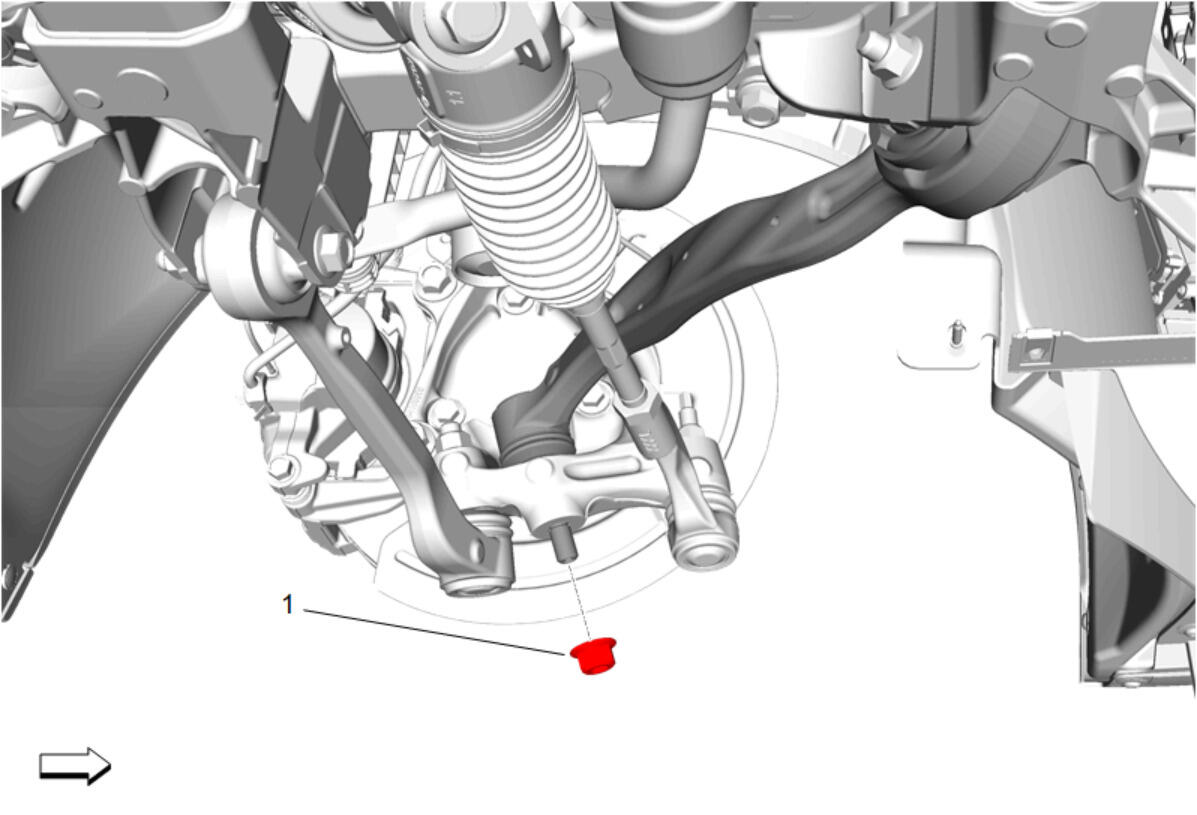

  5. GM5324712Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT allow the ball stud to rotate while tightening the nut.

    Front Lower Control Arm Ball Stud Nut (1) - Install and tighten - Fastener Specifications

  6. If equipped, install the electronic suspension wheel front vertical accelerometer retainers to the front lower control front link.
  7. GM5420502Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector (2) - Install

  8. Front Compartment Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
  9. GM5396496Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications

  10. Engine Front Splash Shield Retainer (2) - Install [2x]
  11. Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
  12. GM5396453Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications

  13. Engine Front Splash Shield Retainer (2) - Install [2x]
  14. Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications
  15. GM5407648Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector (1) - Install

  16. GM5407644Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector Retainer (3) - Install [2x]

  17. Front Bumper Fascia Center Air Deflector Bolt (2) - Install and tighten [5x] Fastener Specifications
  18. Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [6x] Fastener Specifications
  19. GM5468709Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [3x] Fastener Specifications

  20. GM5407645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [10x] Fastener Specifications .

  21. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  22. Remove the support and lower the vehicle.
