Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

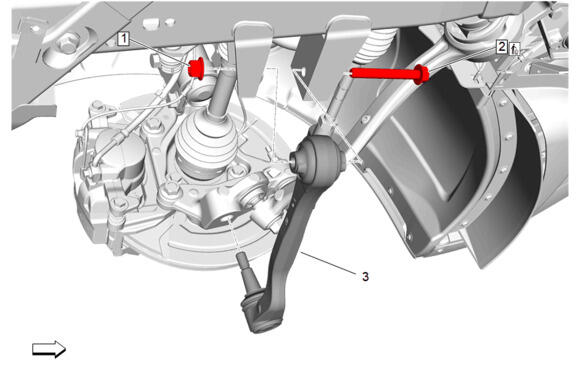

Front Lower Control Rear Link (3) - Install
- Front Lower Control Arm Rear Bolt (2) - Install NEW
- Front Lower Control Arm Rear Nut (1) - Install
- Front Lower Control Arm Rear Bolt (2) - Tighten - Fastener Specifications
- NOTE:
Do NOT allow the ball stud to rotate while tightening the nut.

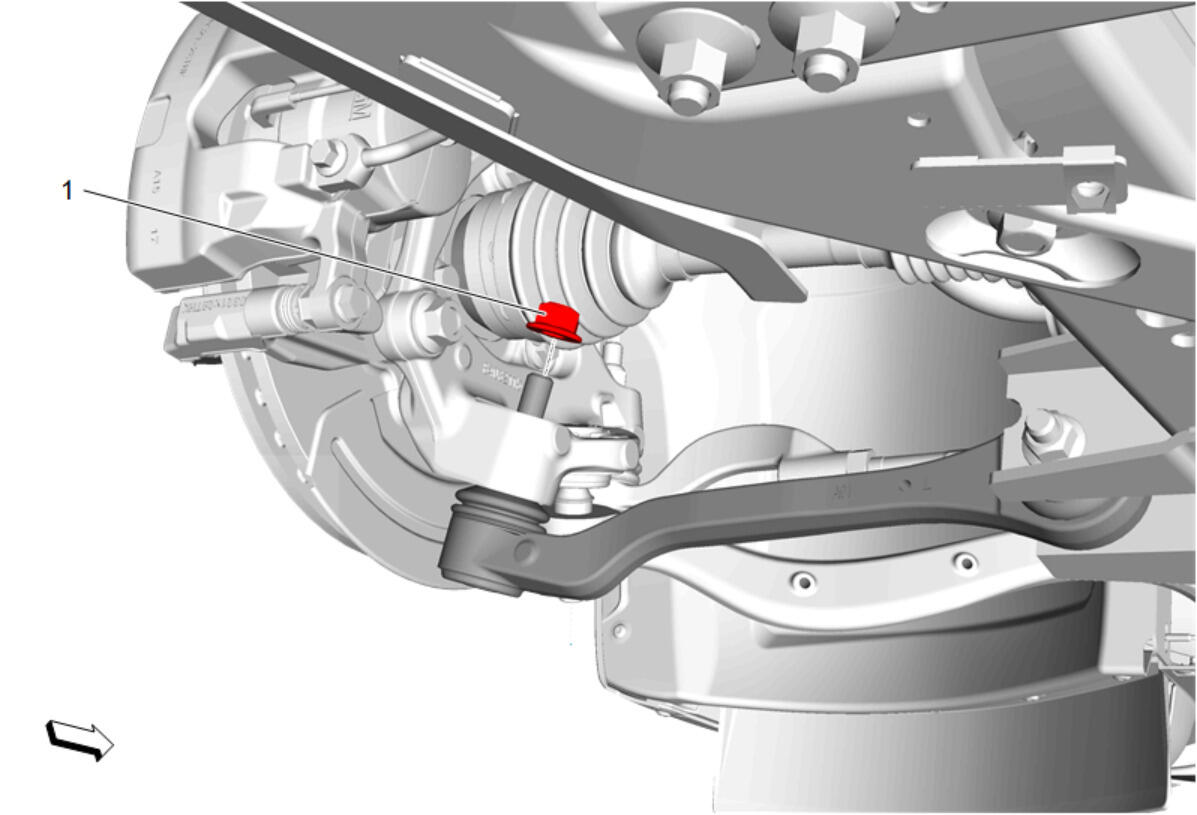

Front Lower Control Arm Ball Stud Nut (1) - Install and tighten - Fastener Specifications
Engine Front Splash Shield (2) - Install
- Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications
- Engine Front Splash Shield Retainer (3) - Install
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:
Refer to Fastener Caution .
