Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

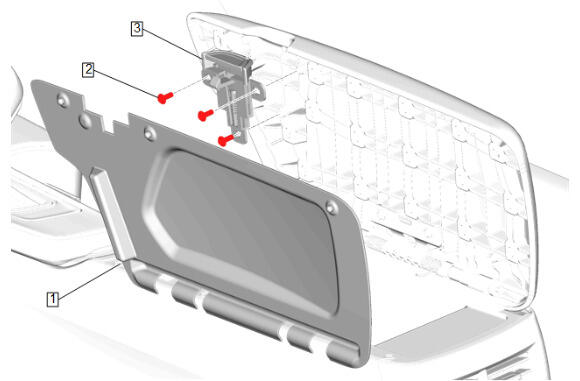

Front Floor Console Armrest Latch (3) - Install
- Front Floor Console Armrest Bolt (2) - Install and tighten [ 3x ] - Fastener Specifications
- Front Floor Console Inner Armrest (1) - Install
- Close the armrest cover.
CAUTION:
Refer to Fastener Caution .
NOTE:
When replacing the front floor console inner armrest, ensure that it is fully seated and flush to the outer armrest.
