Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

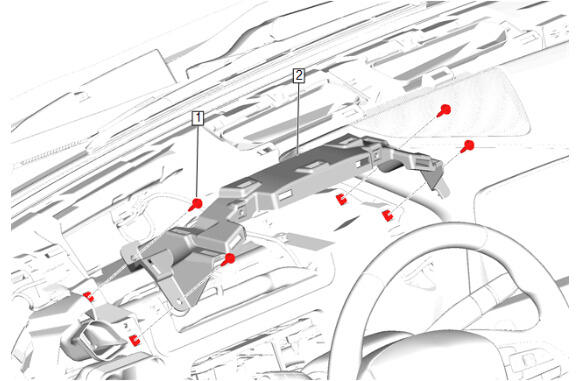

  1. GM5482963Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Upper Bracket Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

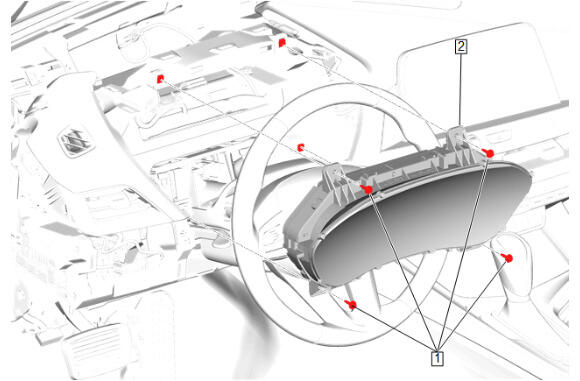

  3. GM5471872Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Instrument Cluster (2) - Install
  5. Instrument Cluster Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

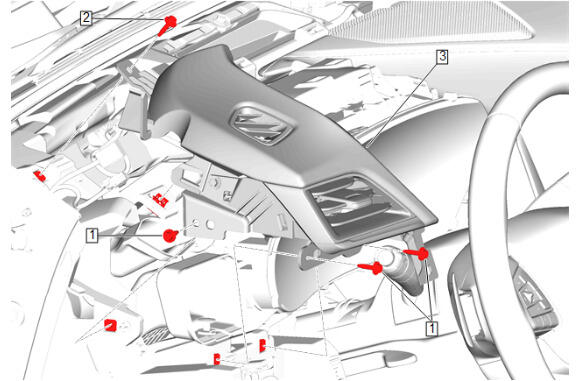

  6. GM5472797Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel upper trim panel and instrument panel trim plate applique assembly (3).

  7. Instrument Panel Outer Upper Bolt (2) - Install and tighten - Fastener Specifications
  8. Instrument Panel Accessory Trim Plate Bolt@Instrument Panel Carrier (1) - Install and tighten [ 3x ] - Fastener Specifications

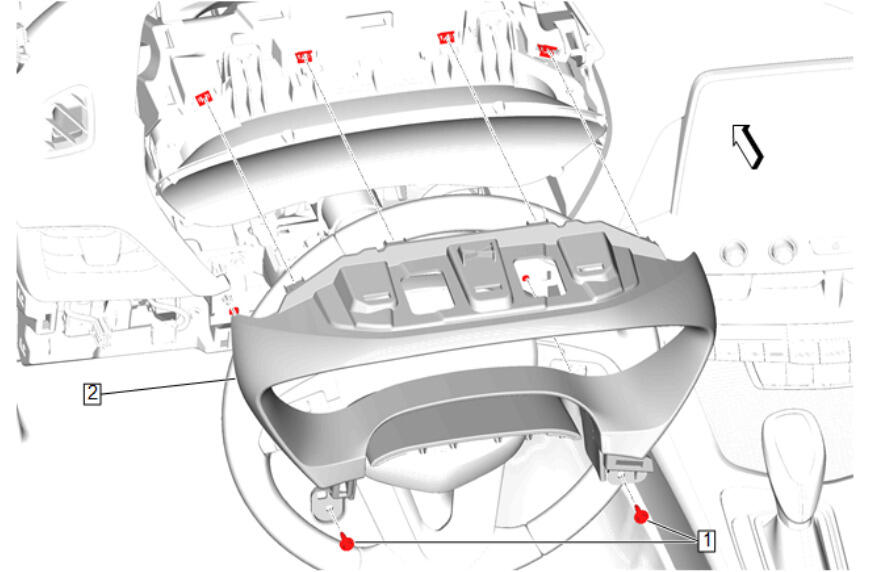

  9. GM5461572Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (2) - Install

  10. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

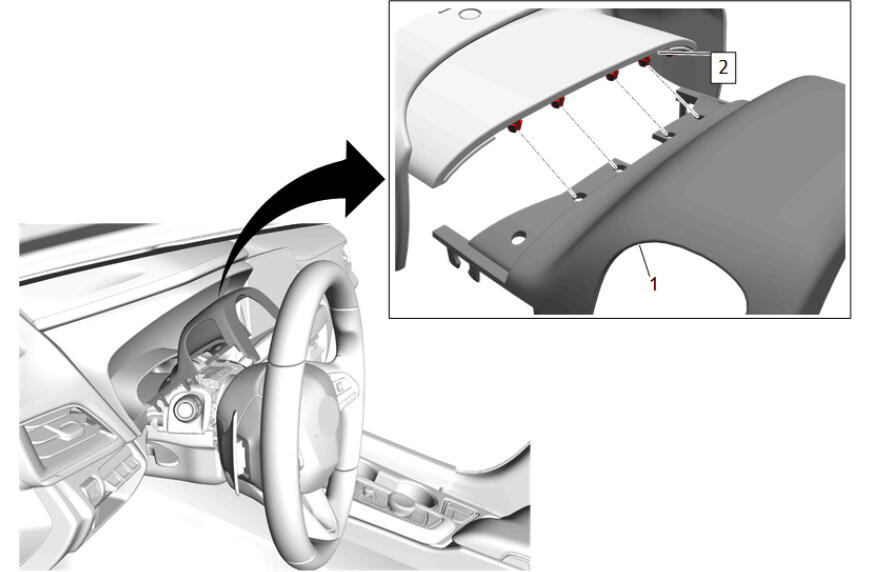

  11. GM5422822Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

  12. GM5422815Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

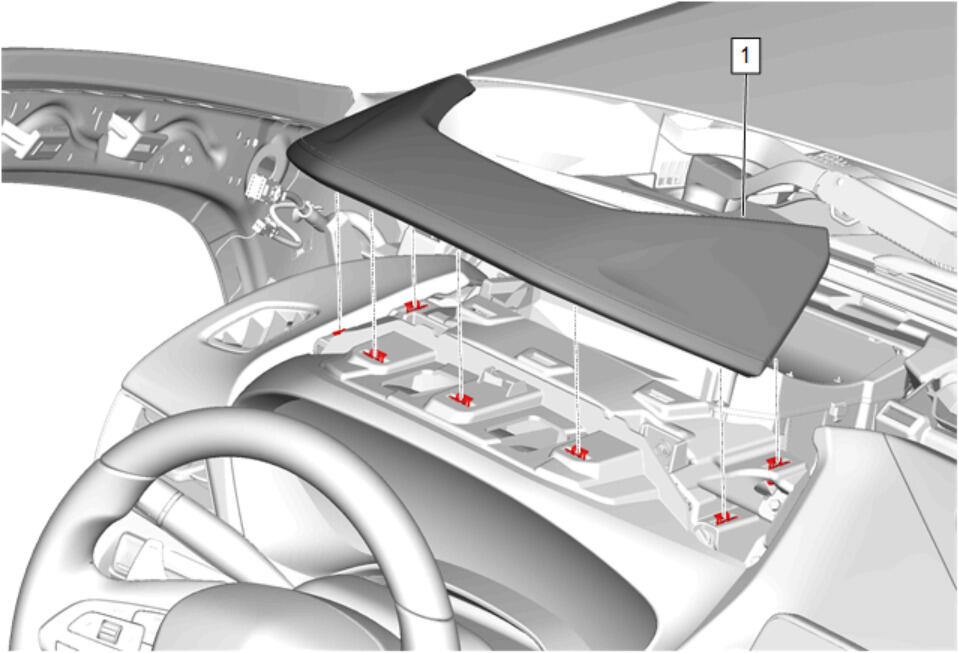

  13. GM5422006Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (1) - Install

  14. GM5421700Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  15. Instrument Panel Extension (1) - Install
  16. GM5423347Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  17. Windshield Garnish Molding Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  18. Align the retainer clips with the slots in the A pillar and press the windshield garnish moldings (1) into place.
  19. Windshield Garnish Molding (1) - Install [ 2x ]
  20. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  21. Instrument Panel Knee Bolster (1) - Install
  22. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  23. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [ 3x ] - Fastener Specifications
  24. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  25. Instrument Panel Center Trim Pad (1) - Install
  26. Return the steering column to its original position.
  27. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  28. Instrument Panel Lower Trim Panel Insulator (1) - Install
  29. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  30. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  31. Instrument Panel Insulator Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  32. Instrument Panel Insulator Nut (3) - Install and tighten [ 2x ] - Fastener Specifications
  33. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  34. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  35. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  36. Instrument Panel Lower Airbag - Driver Side (2) - Install
  37. Instrument Panel Lower Airbag Nut (1) - Install and tighten [ 2x ] - Fastener Specifications
  38. Enable the SIR System. SIR Disabling and Enabling .
  39. Perform the necessary programming and setup procedure:Control Module References
