Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- WARNING:
Never install the passenger airbag module into the instrument panel assembly that airbag module chute is cut. This may cause incorrect deployment when the passenger airbag is deployed.

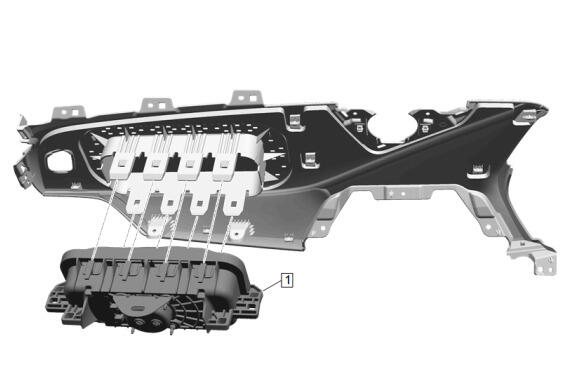

Position the passenger air bag module (1) on the air bag chute.
- Push the passenger airbag module (1) into the airbag chute until the hooks of airbag module are seated completely.
- Instrument Panel Upper Trim Panel - Right Side - Install - Instrument Panel Upper Trim Panel Replacement - Right Side
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Make sure that the passenger airbag is installed into the chute completely.
