Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
With a flat bladed plastic trim tool, start at the top to release the clip.
- Instrument Panel Radio Front Trim Plate (1) - Remove
With a flat bladed plastic trim tool, start at the top to release the clip.
- Instrument Panel Radio Front Trim Plate (1) - Remove
Radio Control Bolt (1) - Remove [2x]
- Disconnect the electrical connectors.
- Radio Control (2) - Remove
Instrument Panel Center Air Outlet Bolt (1) - Remove [3x]
- Instrument Panel Trim Plate (2) - Remove

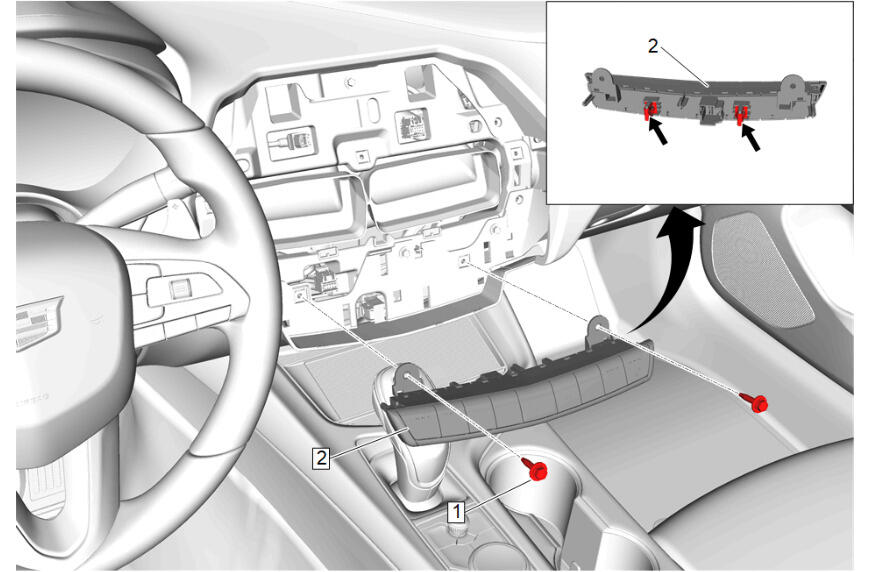

Heater and Air Conditioning Control Bolt (1) - Remove [2x]
- Heater and Air Conditioning User Interface Control (2) - Remove
- Disconnect the electrical connector.
Hazard Warning Switch Bolt (1) - Remove [2x]
- Pull the hazard warning switch (2) straight back to release.
- Hazard Warning Switch (2) - Remove
- Disconnect the electrical connector.
