Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

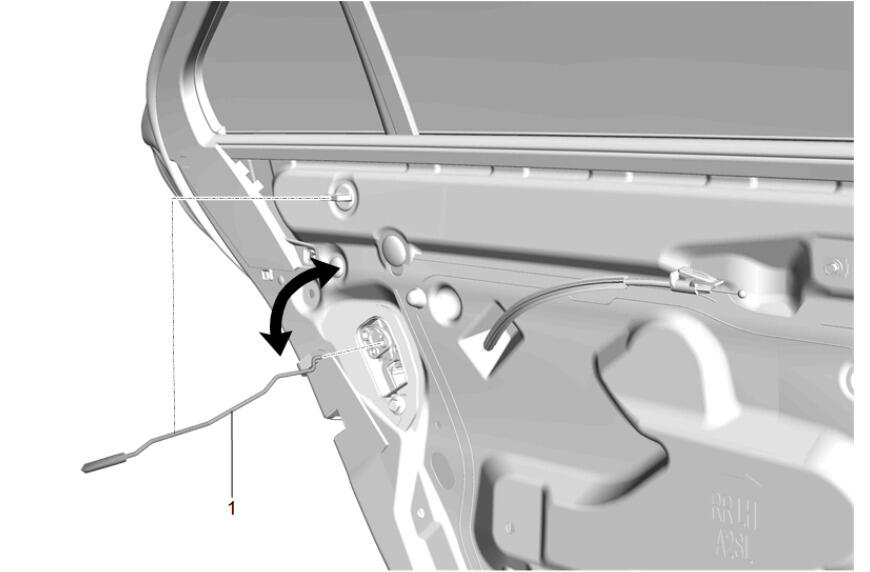

Rear Side Door Inside Handle Cable (1) - Install
Using the appropriate tool, close the rear side door latch access cover.
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Outside Handle Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The rear side door outside handle can not be installed until the counter balance is reset.

Reset the rear side door outside handle bracket counter balance as follows:
1. Grasp the rear side door outside handle bracket (1) with one hand.
2. From the back side of the counter balance (2) push forward on the counter balance until it can be held in place using the bracket clip (3).
Courtesy of GENERAL MOTORS COMPANY

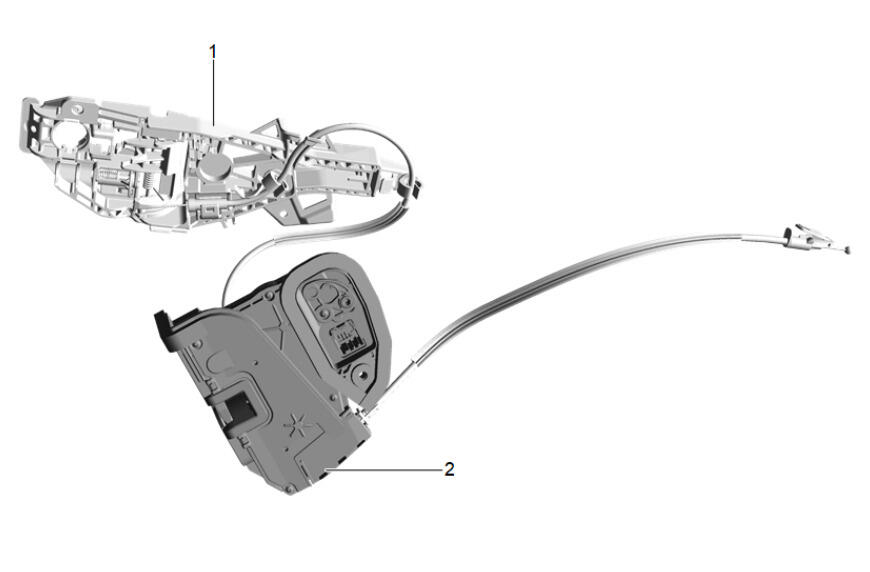

Install the rear side door outside handle bracket (1) and the rear side door latch (2) as an assembly.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

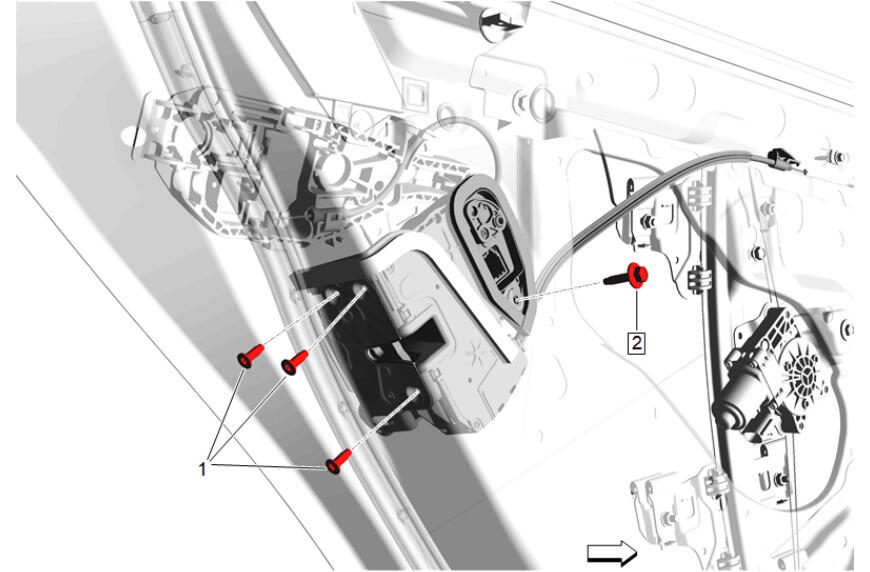

Rear Side Door Latch Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Rear Side Door Latch Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Ensure that the counter balance is reset and locked in the bracket clip. The counter balance can not be reset after the rear side door outside handle bracket has been reinstalled in the door.
- The rear side door outside handle bracket should be slid full rearward prior to tightening the rear side door outside handle bracket screw.
Rear Side Door Outside Handle Bracket Screw (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the front part of the rear side door outside handle (1) into the rear side door outside handle bracket.
Courtesy of GENERAL MOTORS COMPANY

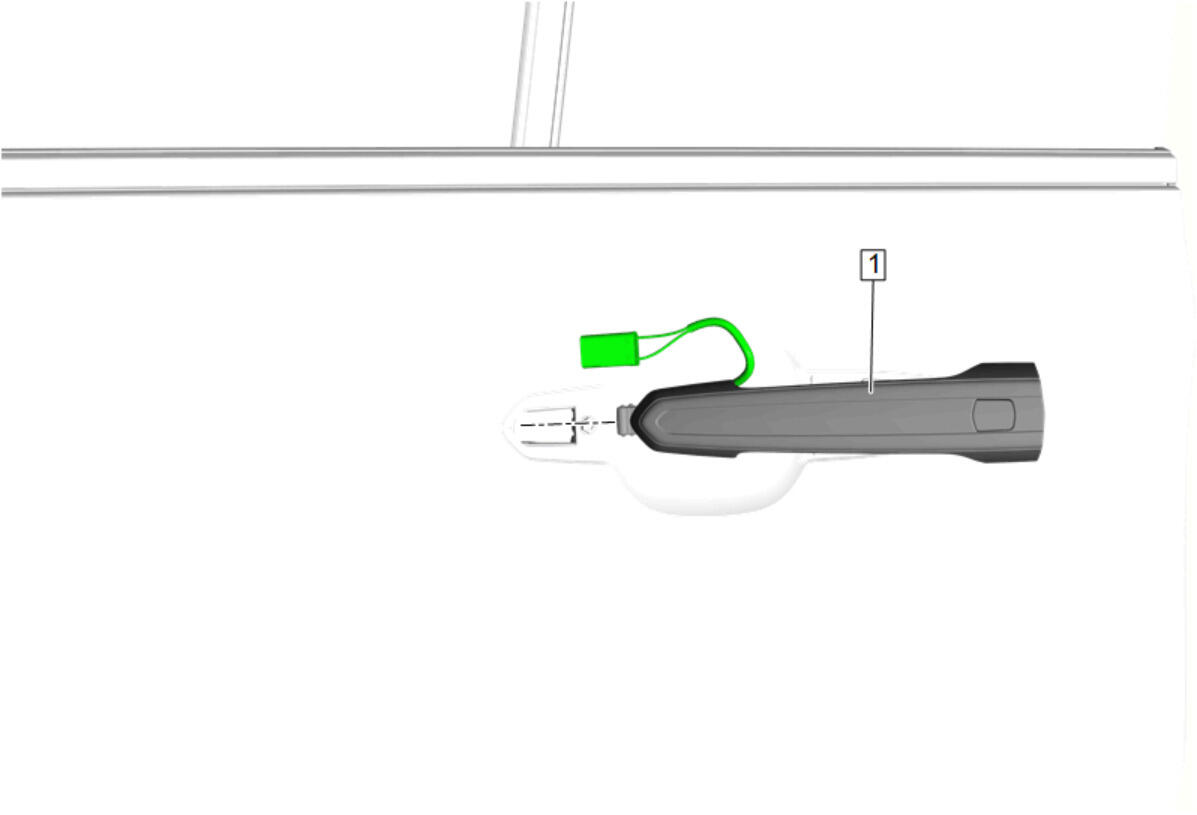

Install the rear part of the rear side door outside handle (1) into the rear side door outside handle bracket and slide the rear side door outside handle forward.
Courtesy of GENERAL MOTORS COMPANY

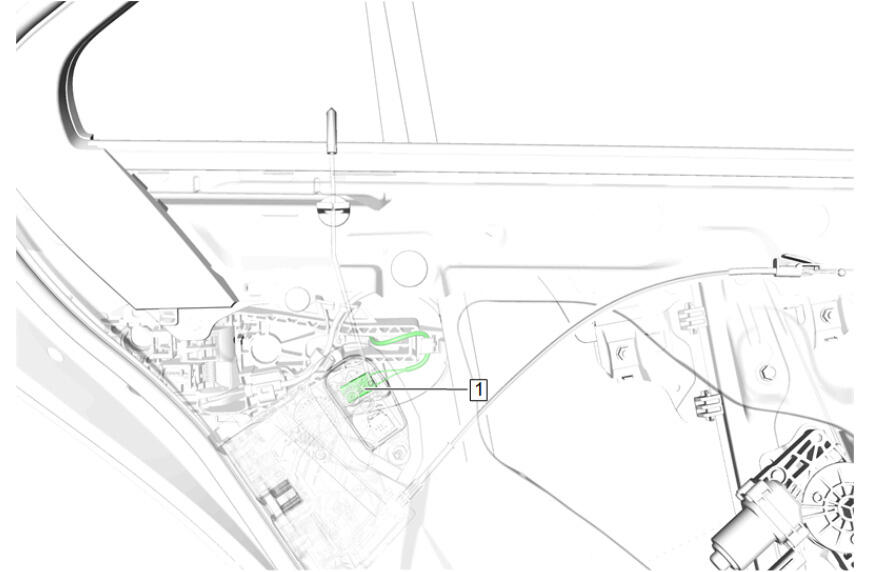

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

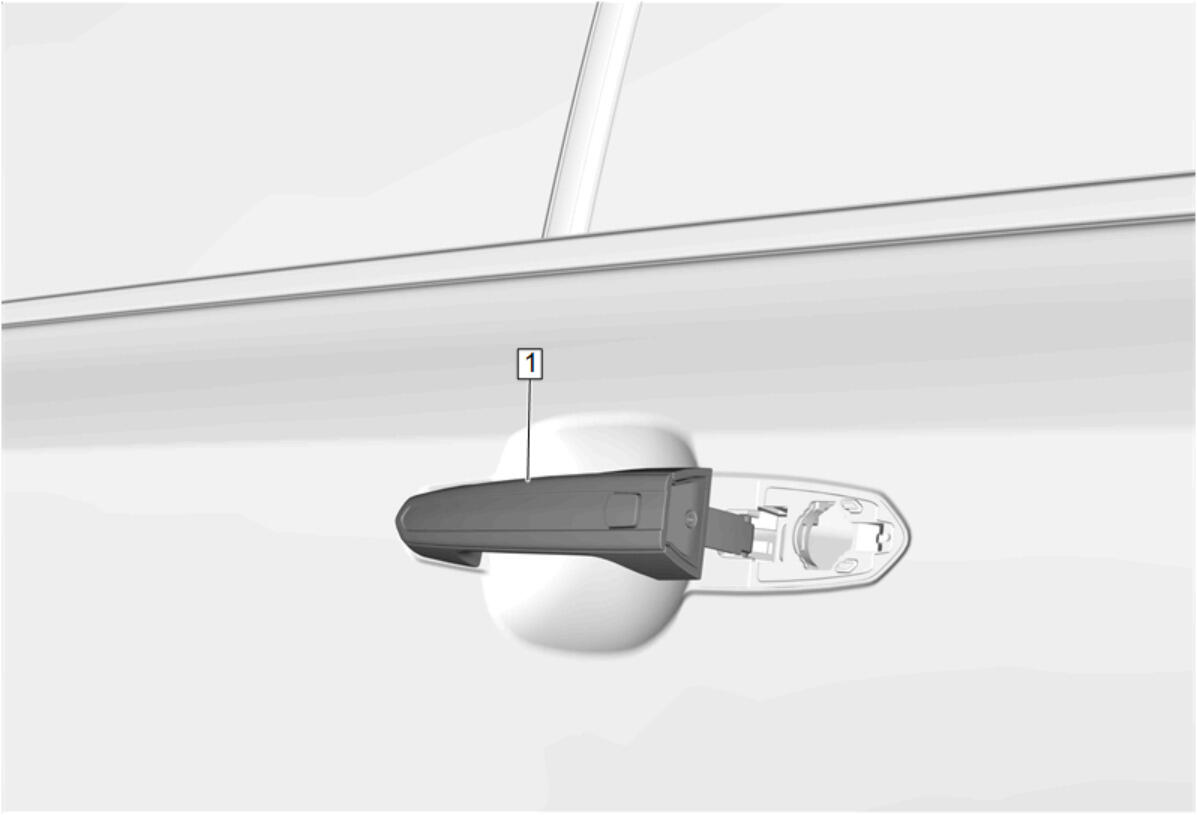

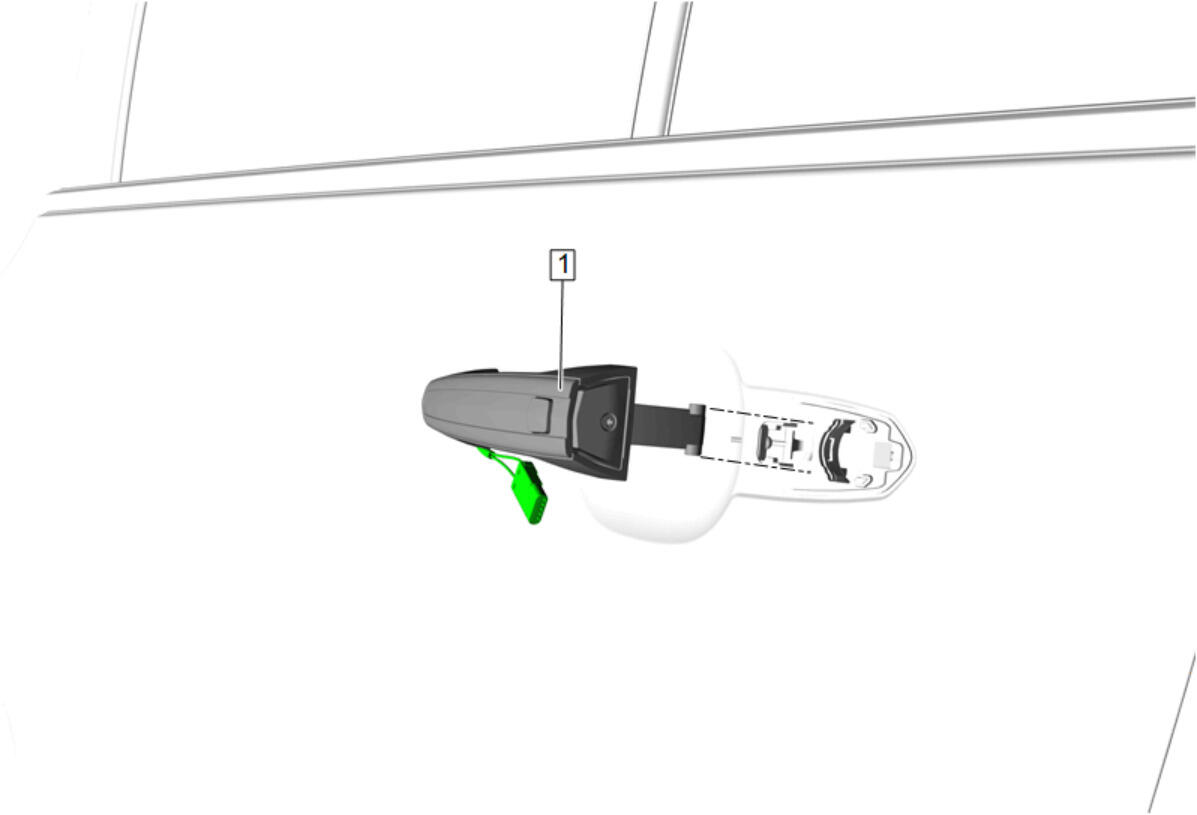

Pull the rear side door outside handle (1) outwards to the open position.
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Lock Cylinder Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

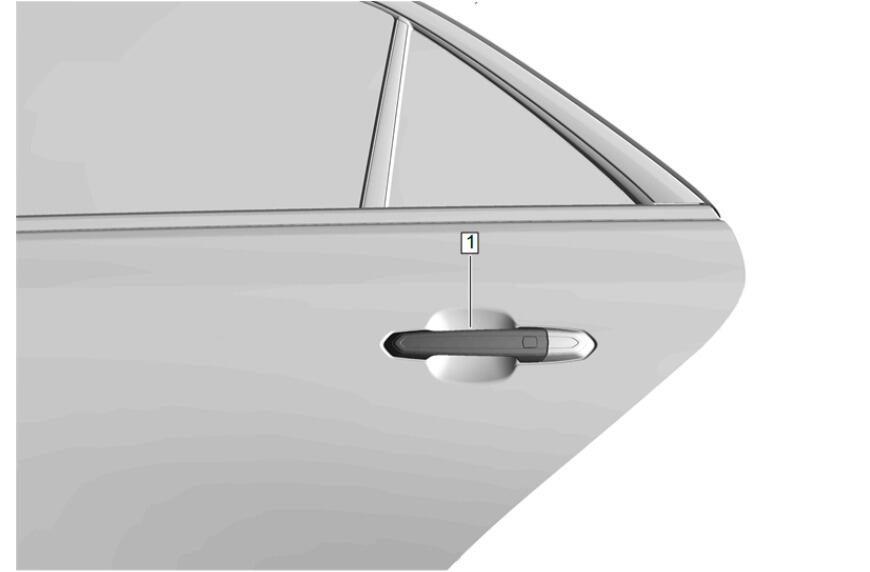

Place the rear side door outside handle (1) in the closed position.
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Lock Cover Bolt (2) - Tighten - Fastener Specifications

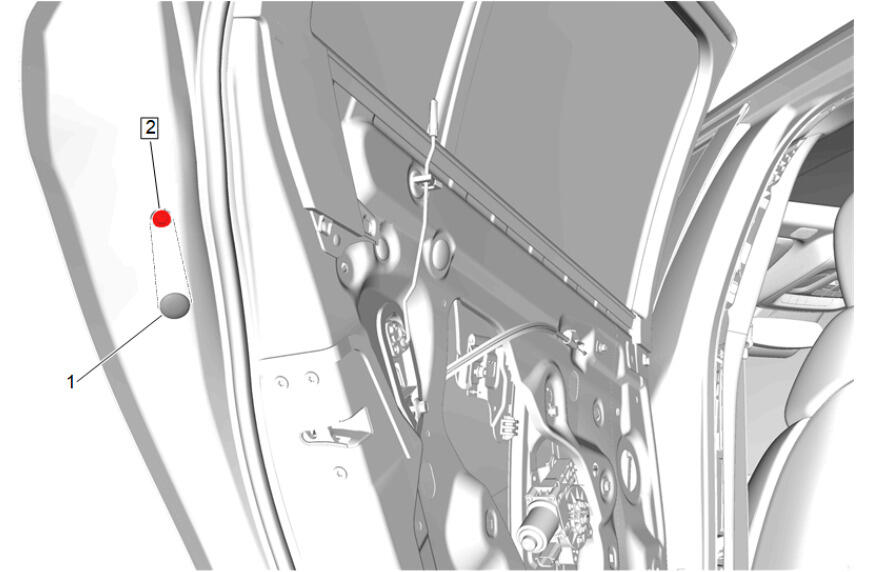

Rear Side Door Inner Panel Access Hole Plug (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Side Door Locking Rod Knob (1) - Install
Inspect the door latch, window, and outside handle for proper operation before installing the door trim.
Courtesy of GENERAL MOTORS COMPANY

NOTE:

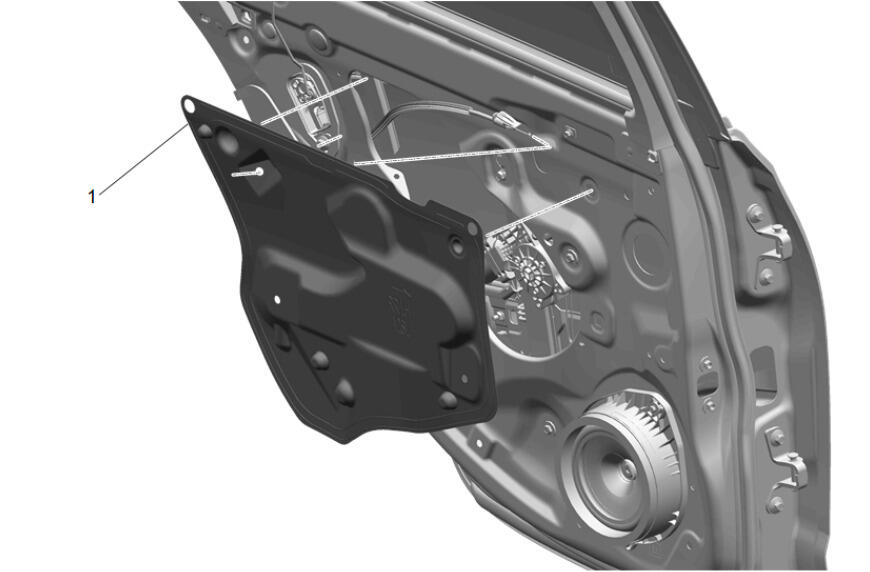

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route the rear side door inside handle cable through hole in deflector.
Rear Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

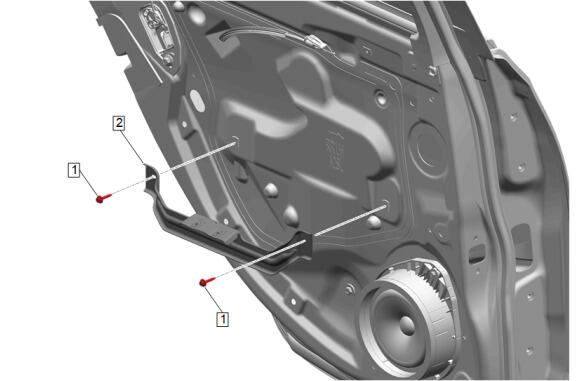

Rear Side Door Pull Handle Bracket (2) - Install
Rear Side Door Trim Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
