Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Perform the wheel alignment measurement and adjust all other settings prior to setting front toe. Wheel Alignment Measurement

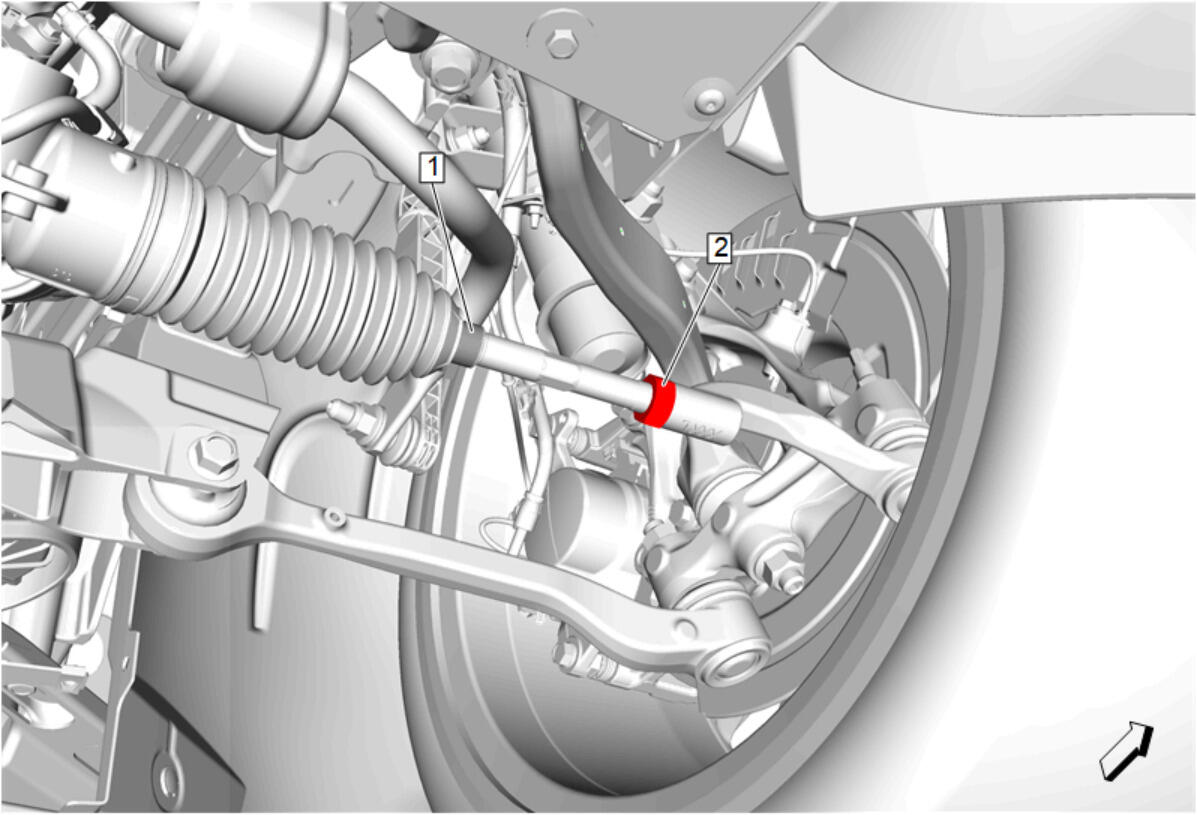

Steering Gear Boot Clamp(1) - Disengage
- Steering Linkage Inner Tie Rod Nut(2) - Loosen

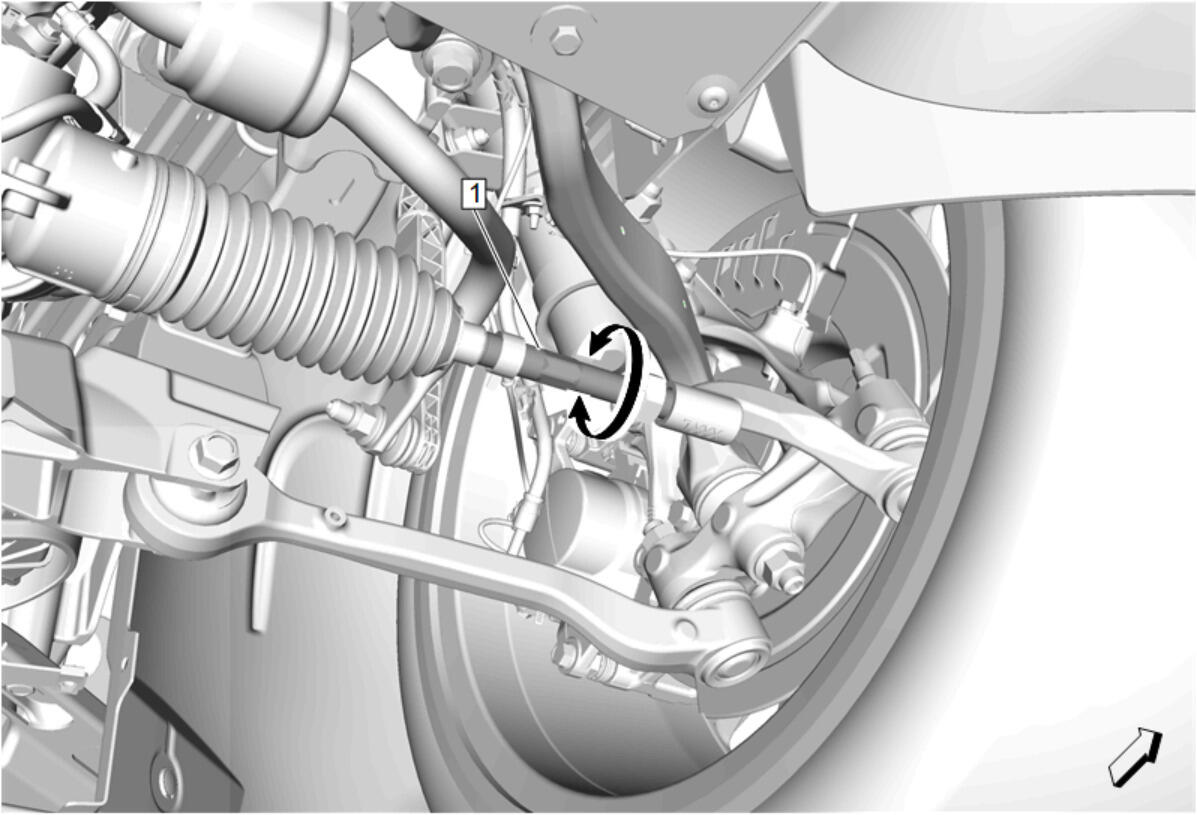

Rotate the inner tie rod (1) as necessary to achieve the required front toe specification setting. Wheel Alignment Specifications
- CAUTION:
Refer to Fastener Caution .
Steering Linkage Inner Tie Rod Nut(2) - Tighten - Fastener Specifications
- Steering Gear Boot Clamp(1) - Engage
- Check the front toe setting after tightening.
- Re-adjust the front toe setting if necessary.
- Center the steering wheel position sensor. Steering Wheel Angle Sensor Centering
