Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

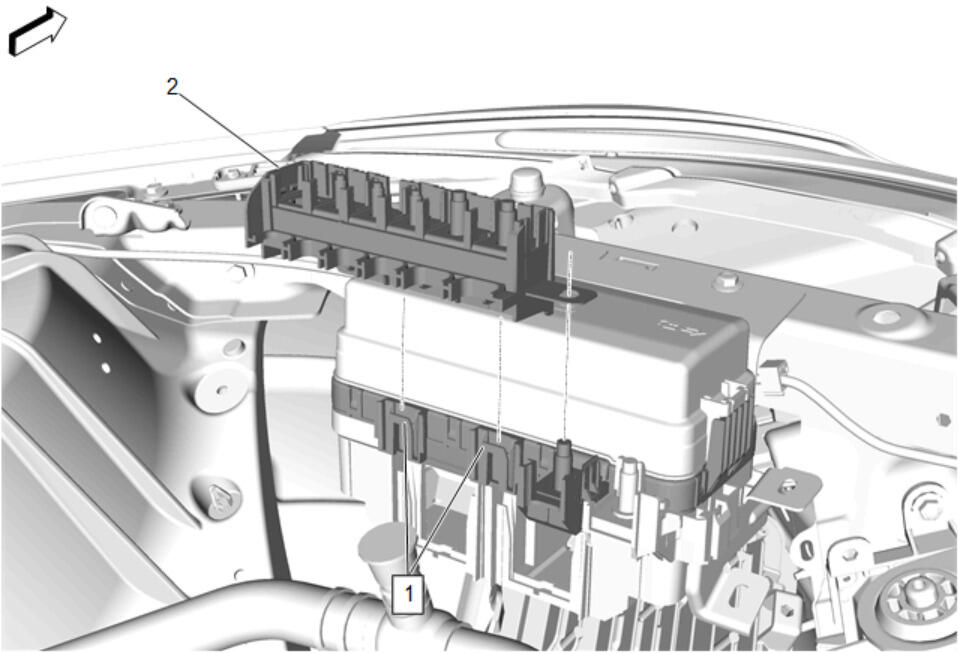

Battery Distribution Engine Compartment Fuse Block (2) - Install
- Retaining Tab (1) - Engage [ 2x ]

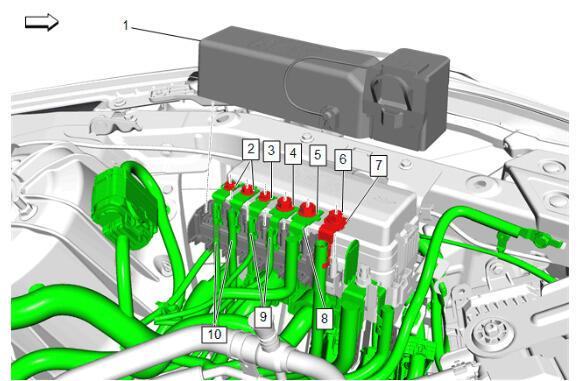

Forward Lamp Wiring Harness (10) - Install [ 2x ]
- Forward Lamp Wiring Harness Terminal Nut (2) - Install and tighten [ 2x ] - Fastener Specifications
- Engine Wiring Harness (9) - Install [ 2x ]
- Engine Wiring Harness Terminal Nut M6 (3) - Install and tighten - Fastener Specifications
- Engine Wiring Harness Terminal Nut M8 (4) - Install and tighten - Fastener Specifications
- Auxiliary Generator Battery Jumper Cable (8) - Install
- Auxiliary Generator Battery Jumper Cable Nut (5) - Install and tighten - Fastener Specifications
- Battery Positive Cable (7) - Install
- Battery Positive Cable Nut (6) - Install and tighten - Fastener Specifications
- Battery Distribution Engine Compartment Fuse Block Cover (1) - Install
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
