Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

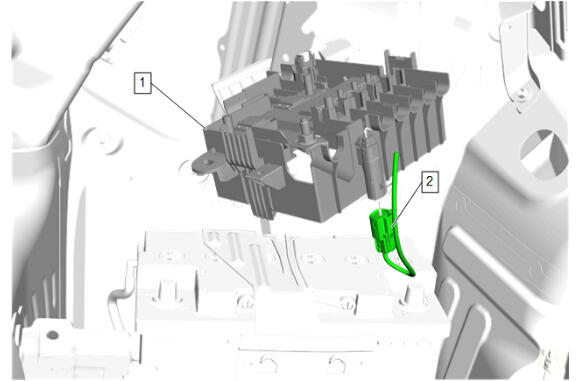

Electrical Connector (2) - Connect
- NOTE:

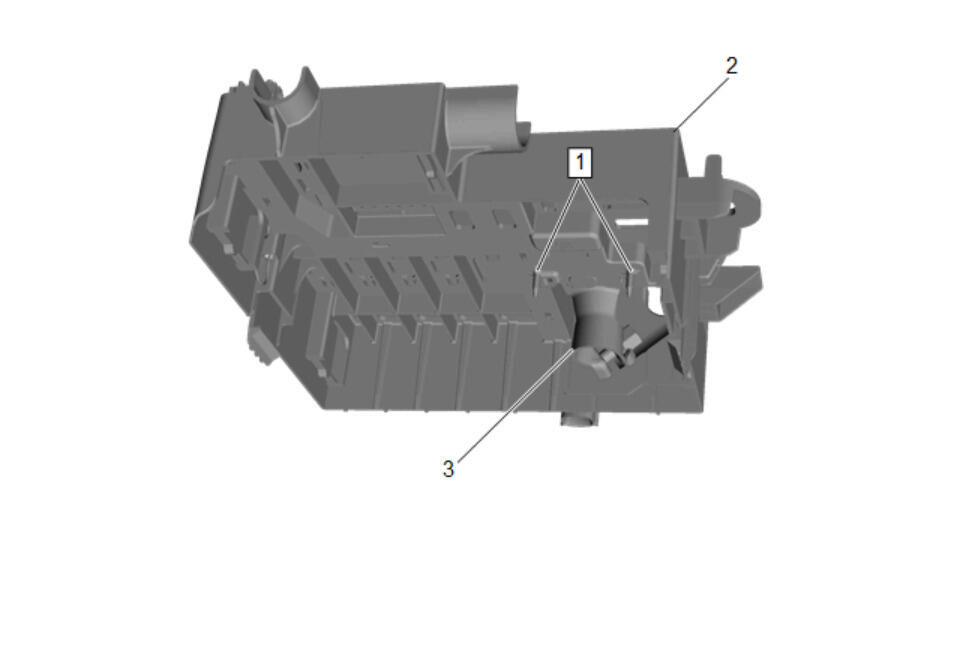

Make sure the collar (3) is properly aligned with the battery positive post.

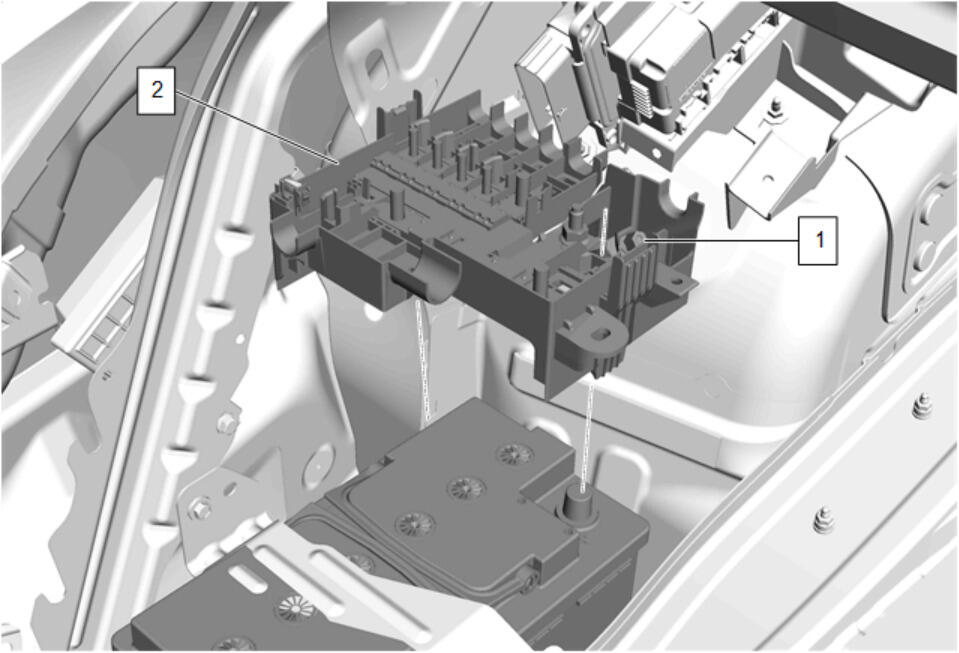

Using the locator pins (1), install the battery distribution fuse block (2) to the battery positive post.
Engage the 2 retaining tabs to the battery.

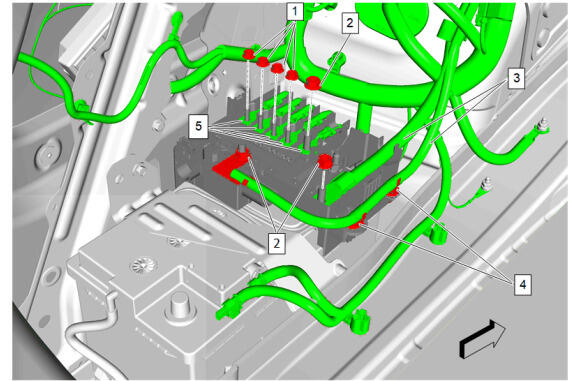

- Battery Positive Post Clamp Nut (1) - Tighten - Fastener Specifications
Body Harness Terminal (5) - Install [ 5x ]
- Battery Positive Cable (3) - Install [ 2x ]
- Body Harness Terminal Nut (1) - Install and tighten [ 4x ] - Fastener Specifications
- Battery Positive Cable Nut (2) - Install and tighten [ 3x ] - Fastener Specifications
- Retainer (4) - Engage [ 2x ]

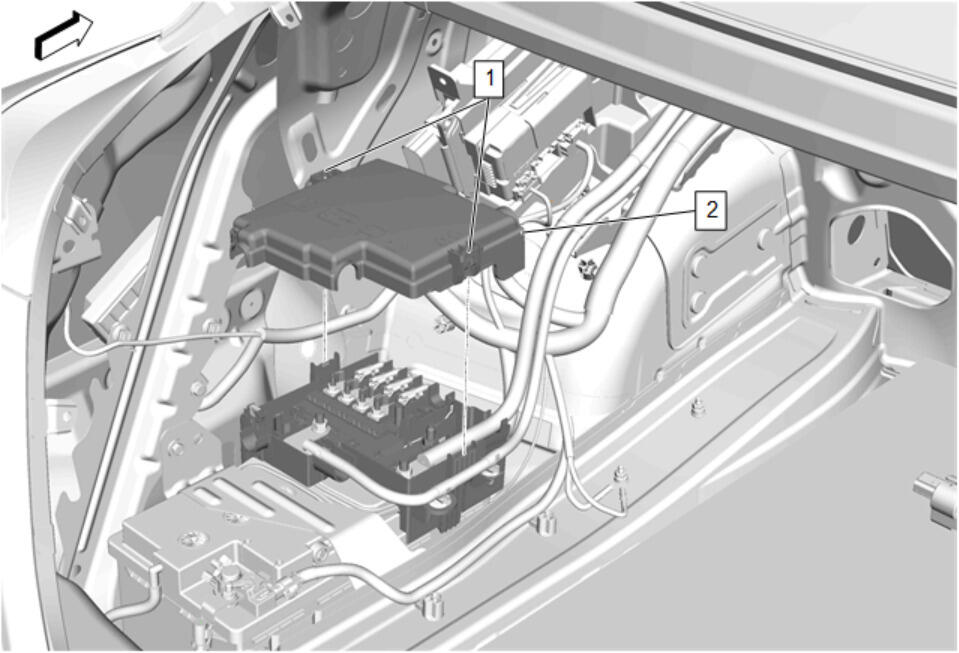

Engage the retaining tabs (1) and install the rear body fuse block cover (2).
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

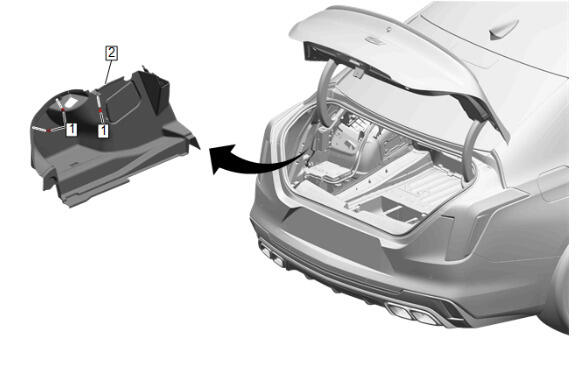

Rear Compartment Side Trim-Left Side (2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install [ 3x ]
Rear End Trim Finish Panel (1) - Install
Rear End Trim Finish Panel Opening Cover (1) - Install
Rear Compartment Floor Panel Trim (1) - Install
Cargo Tie Down Loop (3) - Install [ 2x ]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (1) - Install [ 2x ]
CAUTION:
Refer to Fastener Caution
