Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

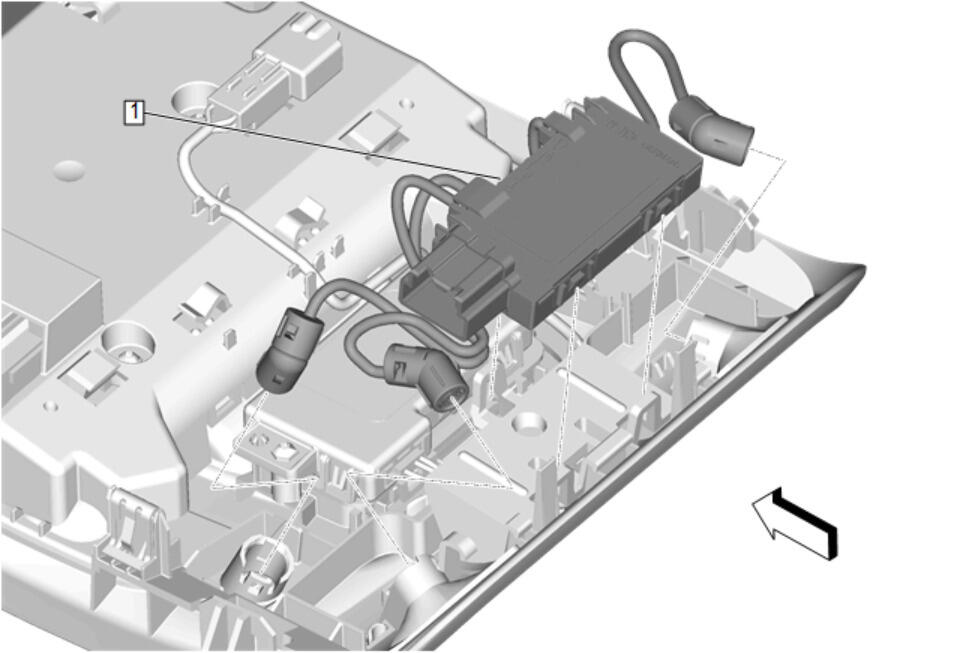

Content Theft Deterrent Sensor (1) - Install
- Install the 3 sensors to the roof console.
- Connect the electrical connectors.
 Courtesy of GENERAL MOTORS COMPANY
|
Install the roof console (1) and front roof console tab into the headliner.
 Courtesy of GENERAL MOTORS COMPANY
|
Push up both sides of the roof console (1) along the retaining clips to install.
