Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

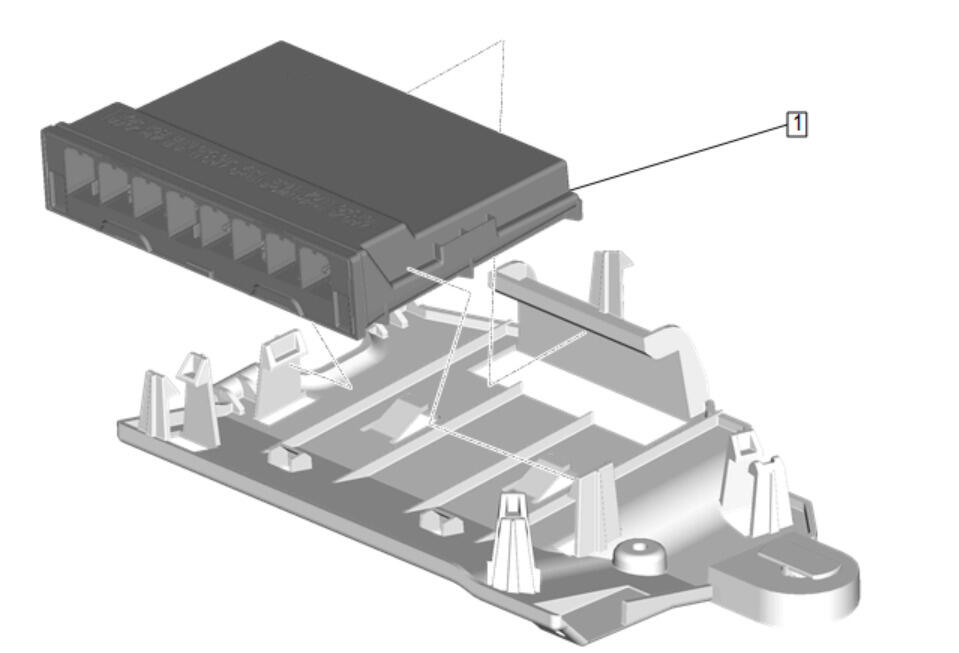

Install the body control module (1) to the body control module bracket.
Connect and position the wiring harness.
- Body Control Module Bracket (1) - Install
Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
- Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Perform the necessary programming and setup procedure:Control Module References
- Clear DTCs
CAUTION:
Refer to Fastener Caution .
