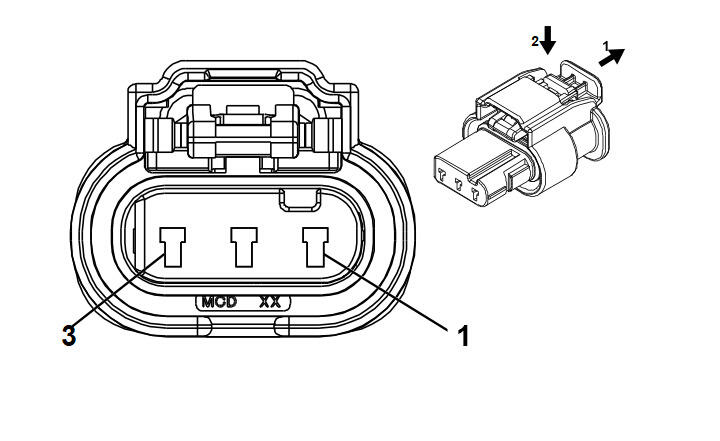

B55 Engine Hood Switch
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13506522
- Service Connector: 19368220
- Description: 3-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
4063 |
Hood Status A Signal |
I |
- |
| 2 |
0.5 |
BN / GN |
4064 |
Hood Status B Signal |
I |
- |
| 3 |
0.5 |
BK |
750 |
Ground |
I |
- |
