Rear Side Door Locking Rod Bellcrank Replacement

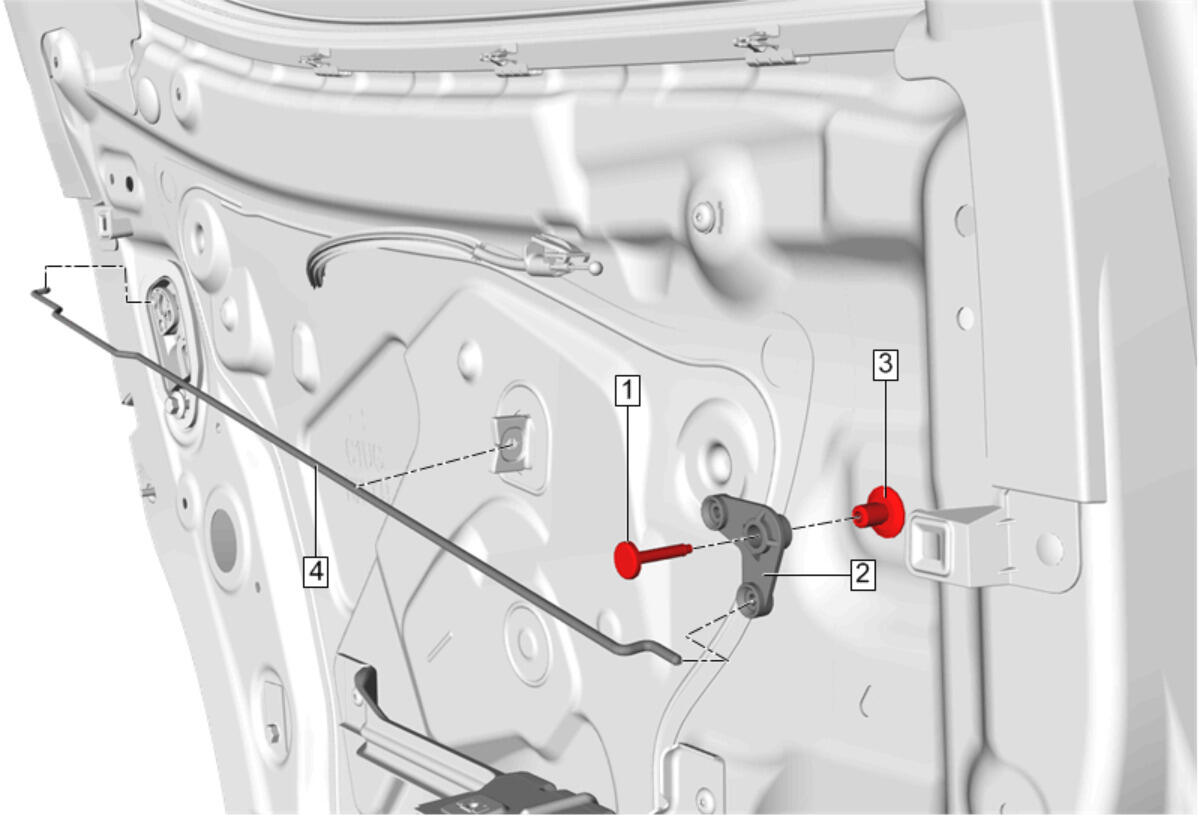

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Side Door Trim Replacement |
|
| 1 | Rear Side Door Locking Rod Bellcrank Center Retainer
NOTE:
Use a small flat-bladed tool to release the retainer from the center of the bellcrank. |
| 2 | Rear Side Door Locking Rod Bellcrank Center |
| 3 | Rear Side Door Locking Rod Bellcrank Retainer to Door |
| 4 | Rear Side Door Locking Rod Bellcrank Rod
NOTE:
Inspect the door lock system for proper operation before installing the door trim. |
