3rd Row Seat Folding Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)

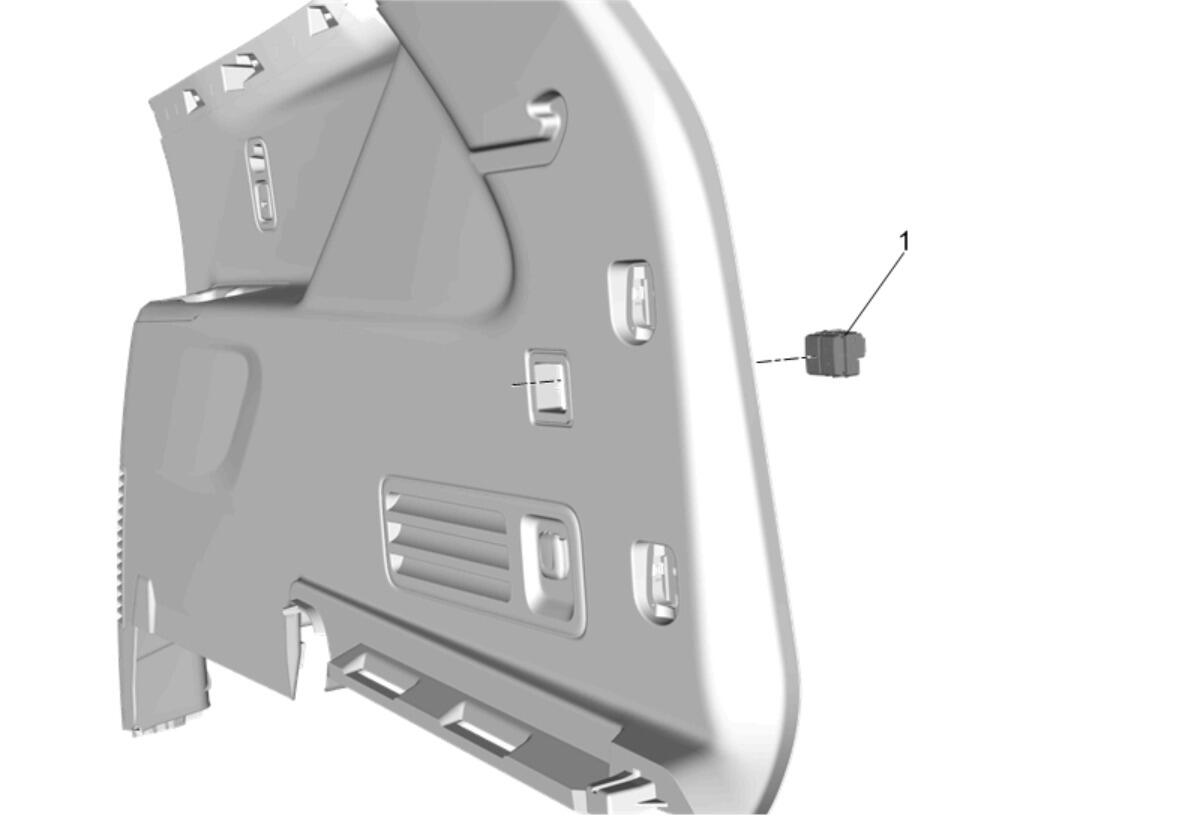

1	3rd Row Seat Folding Switch Procedure Use a plastic trim tool to release the switch from the trim panel. Disconnect the electrical connector.

Callout

Component Name

3rd Row Seat Folding Switch

Procedure
