Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

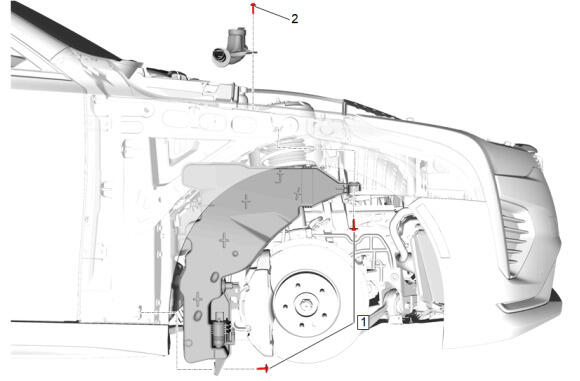

Washer System
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Washer Solvent Container Bolt [2x] | - | - | 9 (80 lb in) | Windshield Washer Solvent Container Replacement |
| 2 | Windshield Washer Solvent Container Filler Tube Bracket Bolt | - | - | 6 (53 lb in) | Windshield Washer Solvent Container Filler Tube Replacement |

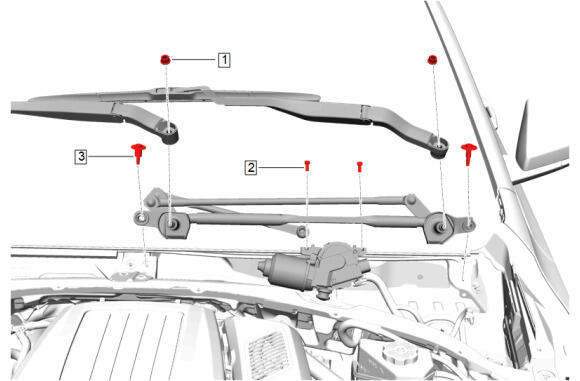

Wiper System
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Windshield Wiper Arm Nut [2x] | - | - | 30 (22 lb ft) | Windshield Wiper Arm Replacement |
| 2 | Windshield Wiper Motor Bolt [2x] | - | - | 7.5(66 lb in) | Windshield Wiper Motor Replacement |
| 3 | Windshield Wiper System Module Bolt [2x] | - | - | 9 (80 lb in) | Windshield Wiper Motor Replacement |
