Section 75 (Remote Functions)
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›

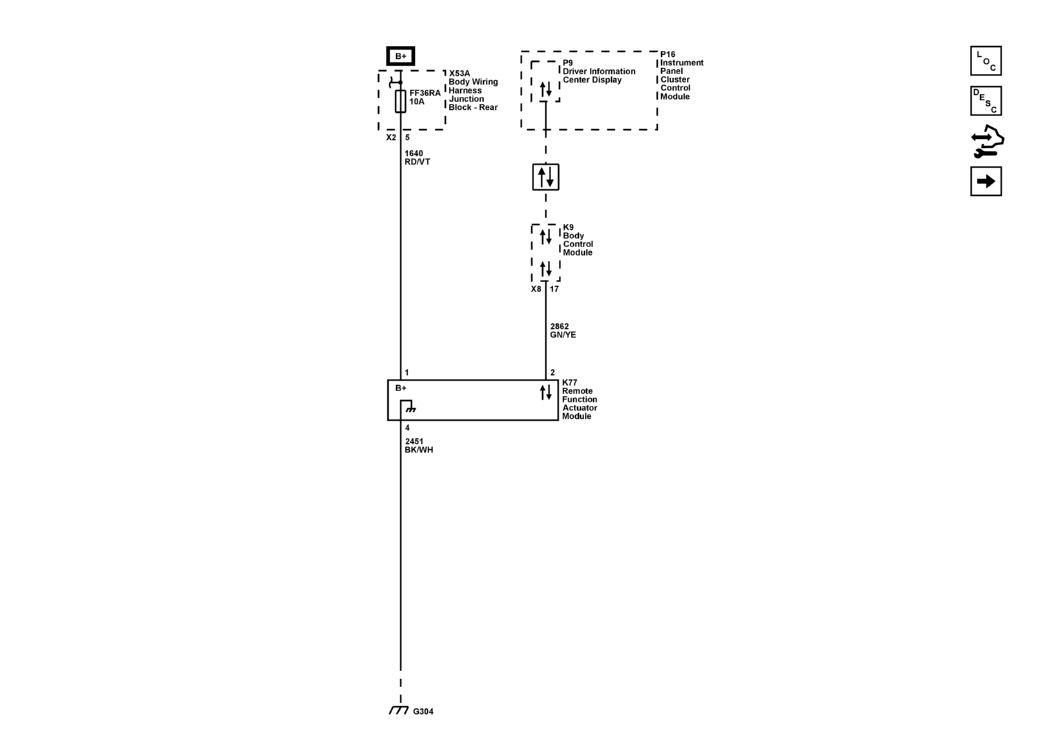

Keyless Entry - Active
Keyless Entry - Active
WARNING:
This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
