Electrical Component Locations
›
Electrical Center Identification Views
›
Electrical Center Identification Views
›

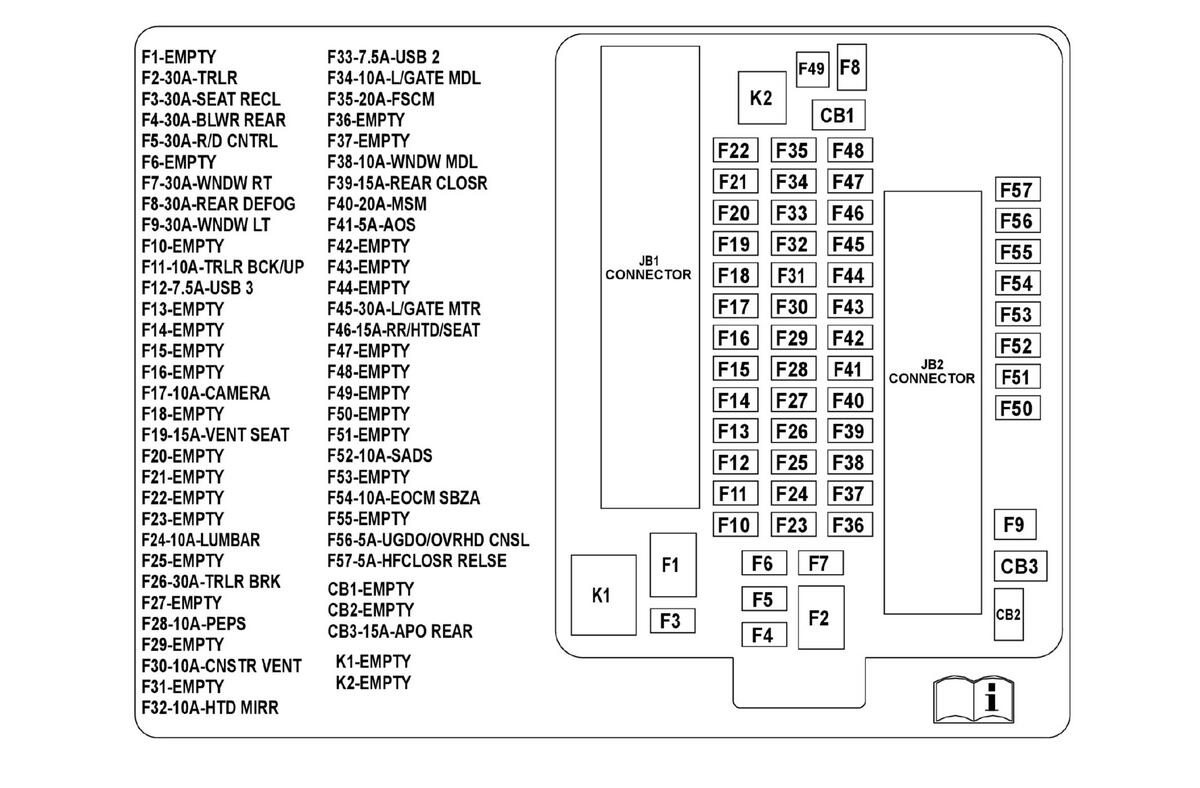

X53A Fuse Block - Rear Body Label
X53A Fuse Block - Rear Body Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
