Installation Procedure

  1. Clean the contact surfaces between the transmission and the transfer case.
  2. GM4702659Courtesy of GENERAL MOTORS COMPANY

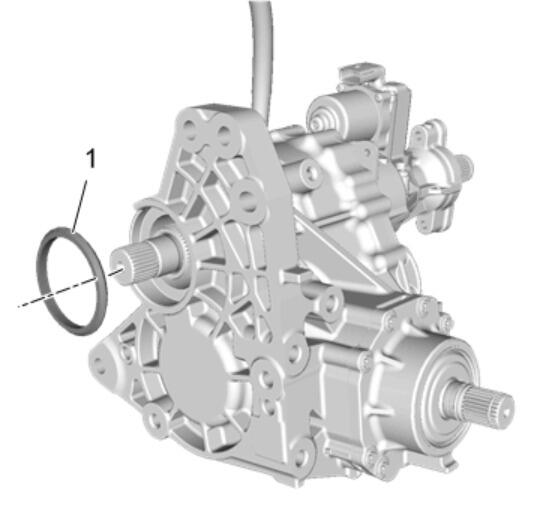

    Install a NEW the transfer case to interface O-ring seal (1).

  3. Install the power transfer unit. Power Transfer Unit Case Replacement
