Installation Procedure

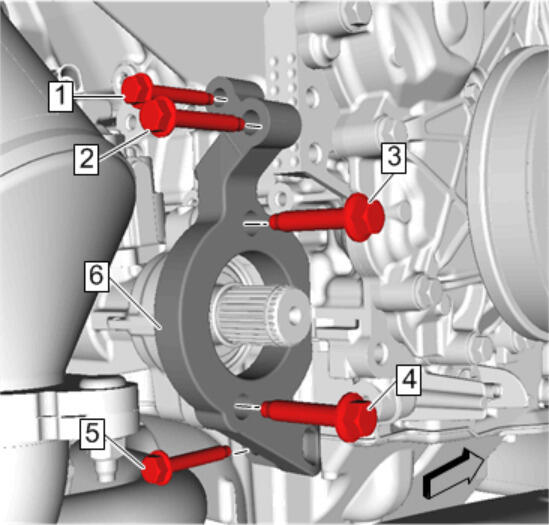

Position the bracket (6) to the transfer case.
- Install all bolts (1, 2, 3, 4, 5) finger tight.
- Tighten bolts (1, 2, 5) to 22 N.m (16 lb ft).
- Tighten bolts (3, 4) to 58 N.m (43 lb ft).
- Install the right wheel drive shaft. Front Wheel Drive Half Shaft Replacement - Right Side (AWD)
CAUTION:
Refer to Fastener Caution .
