Front Compartment Splash Shield Replacement - Left Side

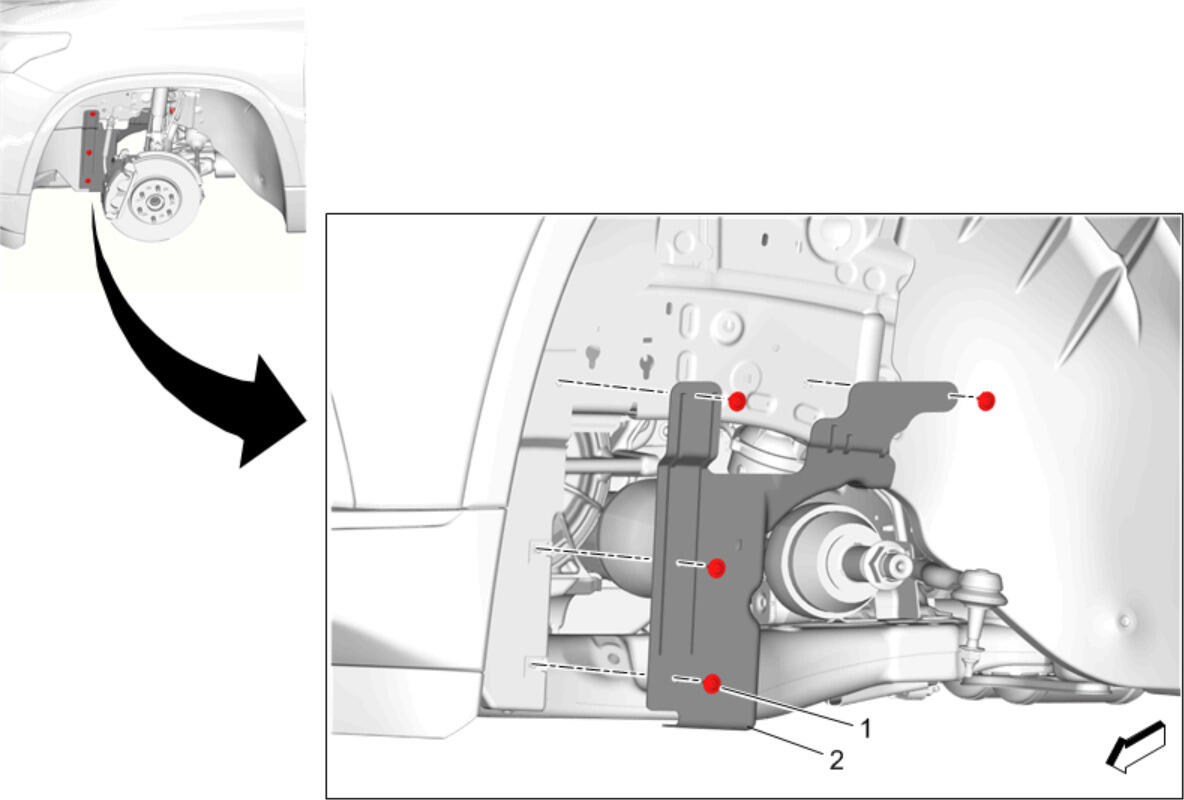

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Tire and Wheel Removal and Installation |
|
| 1 | Front Compartment Splash Shield Bolt [ 4x ]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Splash Shield - Left Procedure Install the tire and wheel assembly. Tire and Wheel Removal and Installation |
