Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur.

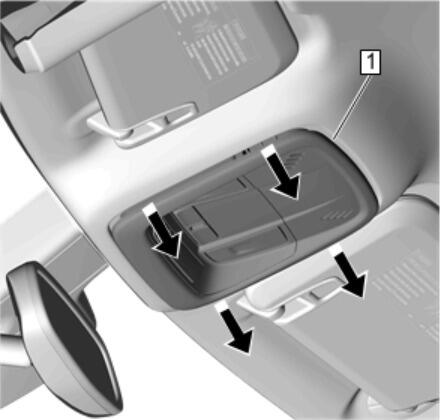

Grasp the roof console (1) on both sides in line with the microphone and OnStar buttons and pull down to disengage the clips.
Courtesy of GENERAL MOTORS COMPANY

Clear the rearward roof console (1) tabs from the headliner.
Courtesy of GENERAL MOTORS COMPANY

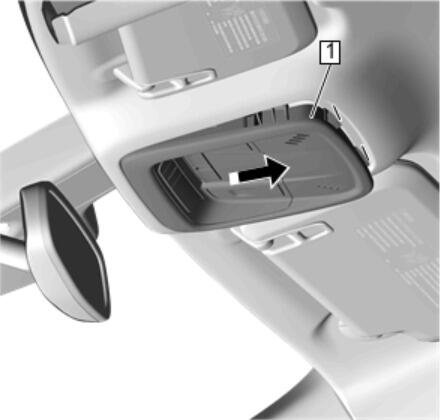

Pull rearward to clear the forward roof console (1) tabs.
Disconnect the electrical connectors.
