Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

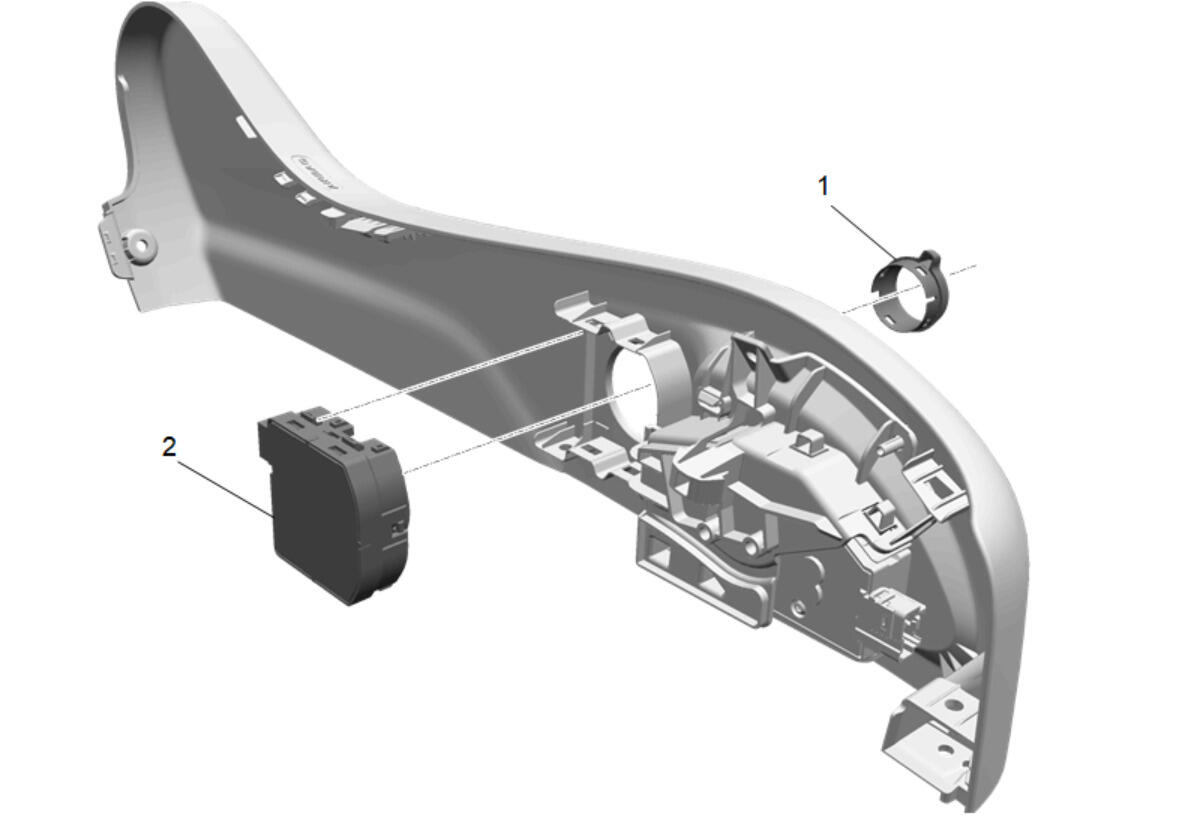

  1. GM5317853Courtesy of GENERAL MOTORS COMPANY

    Driver and Passenger Seat Lumbar Control Switch(2) - Install

  2. { If equipped }Driver or Passenger Seat Lumbar Support Actuator Knob(1) - Install
  3. GM5552551Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Front Seat Cushion Outer Finish Cover (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Front Seat Cushion Outer Finish Cover Bolt -Rear (1) - Install and tighten - Fastener Specifications
  6. GM5309114Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Front Finish Cover (3) - Install

  7. Front Seat Cushion Outer Finish Cover Bolt -Front (2) - Install and tighten - Fastener Specifications
  8. Front Seat Cushion Front Finish Cover Bolt (1) - Install and tighten - Fastener Specifications
  9. Return the seat to the original position.
