Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connectors.

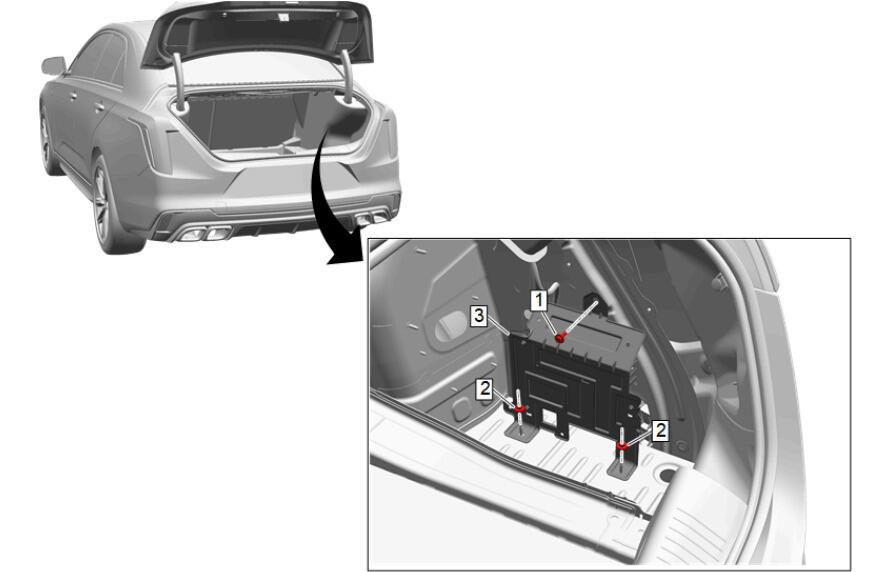

- Radio Speaker Amplifier (3) - Install
- Radio Speaker Amplifier Nut (2) - Install and tighten [ 2x ] - Fastener Specifications
- Radio Speaker Amplifier Bolt (1) - Install and tighten - Fastener Specifications
Rear Compartment Side Trim-Right Side (2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install [ 3x ]
Rear End Trim Finish Panel (1) - Install
Rear End Trim Finish Panel Opening Cover (1) - Install
Rear Compartment Floor Panel Trim (1) - Install
Cargo Tie Down Loop (3) - Install [ 2x ]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (1) - Install [ 2x ]
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
