Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

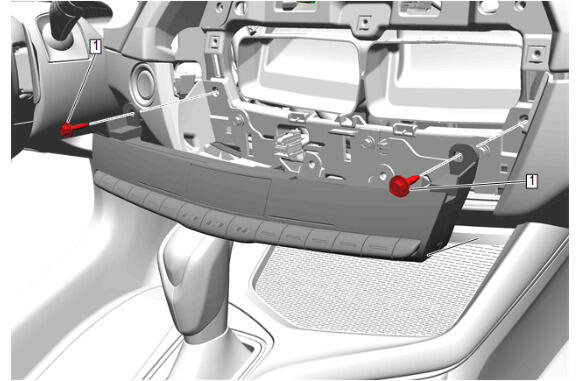

Heater and Air Conditioning User Interface Control
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Control Bolt [2x] | - | - | 2.5 (2 lb ft) | Heater and Air Conditioning User Interface Control Replacement |

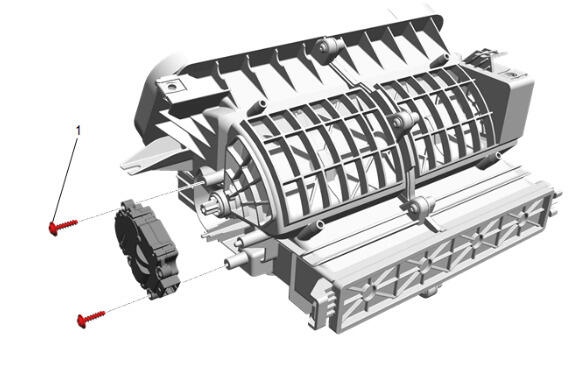

Programmable Temperature Valve Actuator - Air Inlet
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 2 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 (13 lb in) | Programmable Temperature Valve Actuator Replacement (Mode) Programmable Temperature Valve Actuator Replacement (Air Inlet) |

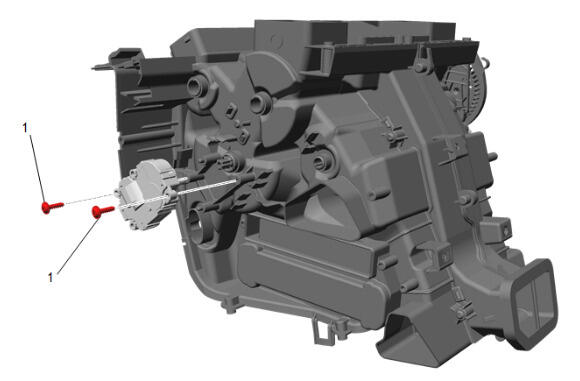

Programmable Temperature Valve Actuator - Left Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 (13 lb in) | Programmable Temperature Valve Actuator Replacement - Left Side |

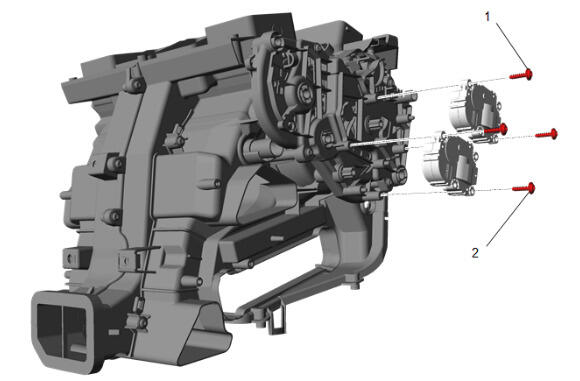

Programmable Temperature Valve Actuator - Mode and Temperature
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 (13 lb in) | Programmable Temperature Valve Actuator Replacement (Mode) Programmable Temperature Valve Actuator Replacement (Air Inlet) |
| 2 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 (13 lb in) | Programmable Temperature Valve Actuator Replacement - Right Side |
