Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

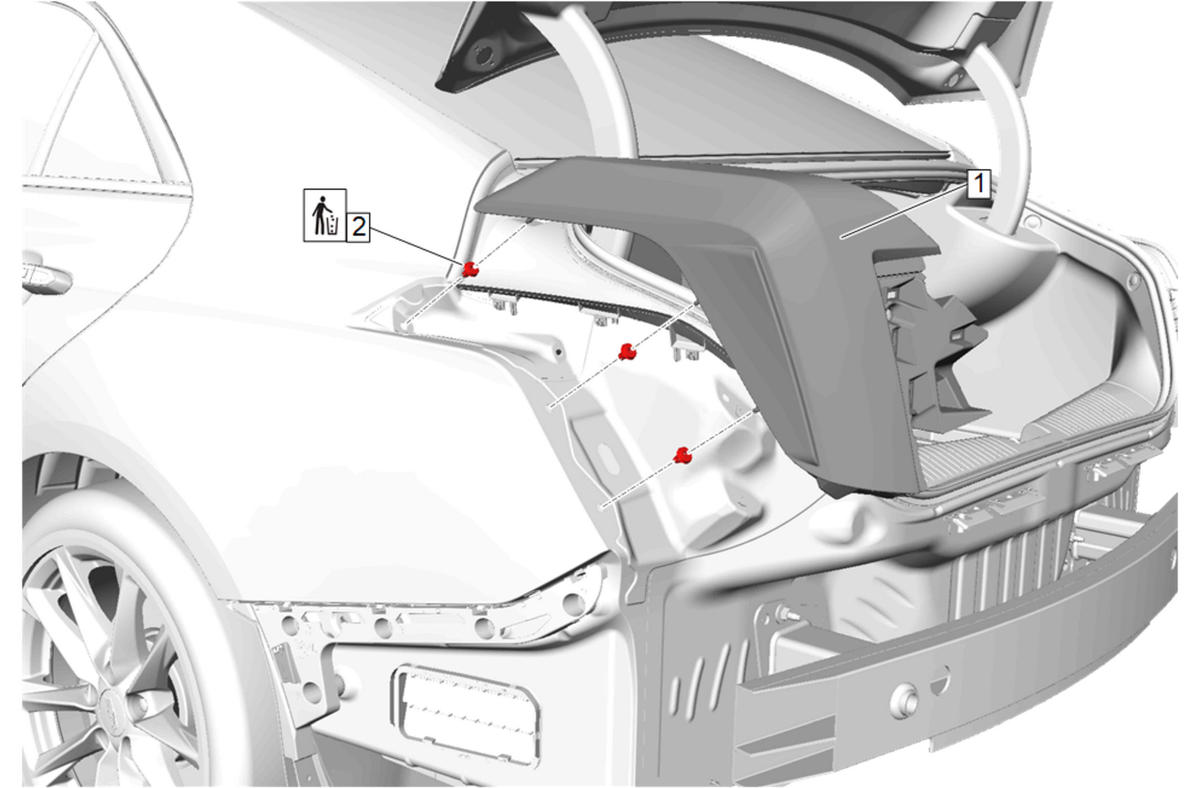

Rear Body Structure Stop Lamp Retainer (2) - Install NEW [3x] - Fastener Specifications
Rear Body Structure Stop Lamp (1) - Install
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

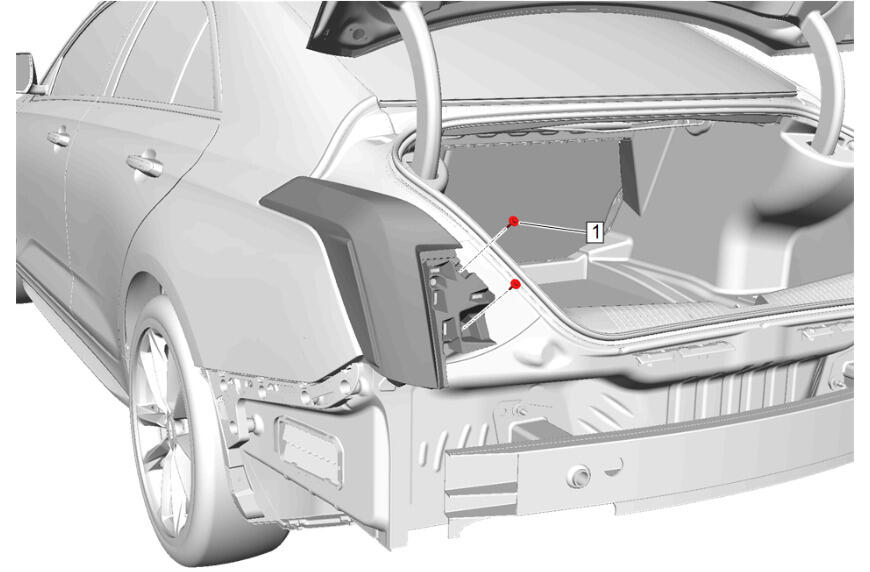

Rear Body Structure Stop Lamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Side Trim (2) - Install
Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Trim (2) - Install
Rear Compartment Floor Stowage Compartment Retainer (1) - Install [3x]
Courtesy of GENERAL MOTORS COMPANY

Rear End Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear End Trim Finish Panel Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Panel Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Cargo Tie Down Loop (3) - Install [2x]
Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

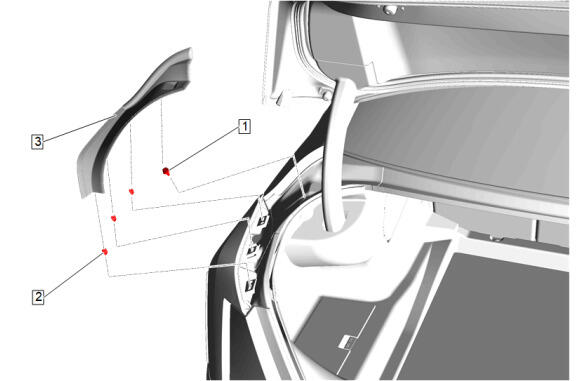

Back Body Opening Side Gutter (3) - Install
Install the 3 back body opening side gutter clips (2).
Back Body Opening Side Gutter Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
