Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

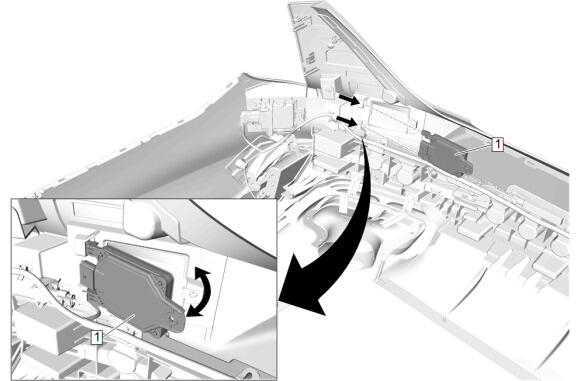

Ensure the retaining tabs are properly aligned.
Rear Short Range Radar Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

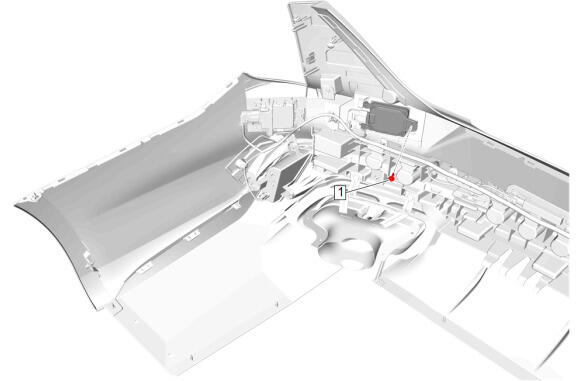

Short Range Radar Sensor Bolt @ Rear Bumper Fascia (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
Perform the necessary programming and setup procedure:Control Module References
