X50D Fuse Block - Battery X1

Courtesy of GENERAL MOTORS COMPANY

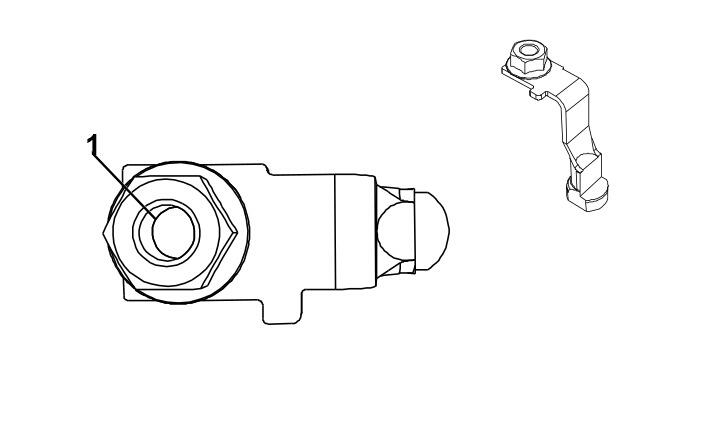

Connector Part Information Harness Type: Body OEM Connector: 13595262 Service Connector: Service by Cable Assembly - See Part Catalog Description: 1 -Way Ring Terminal

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	No Tool Required	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	20	RD / VT	1242	Battery Positive Voltage	I	-
