Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connectors.

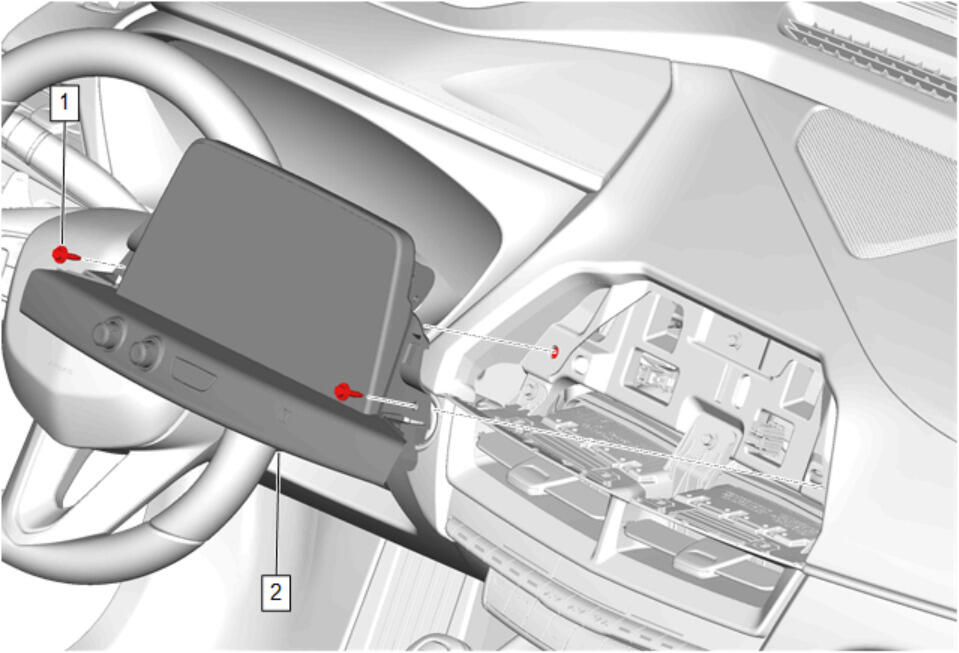

Radio Control (2) - Install
- Radio Control Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

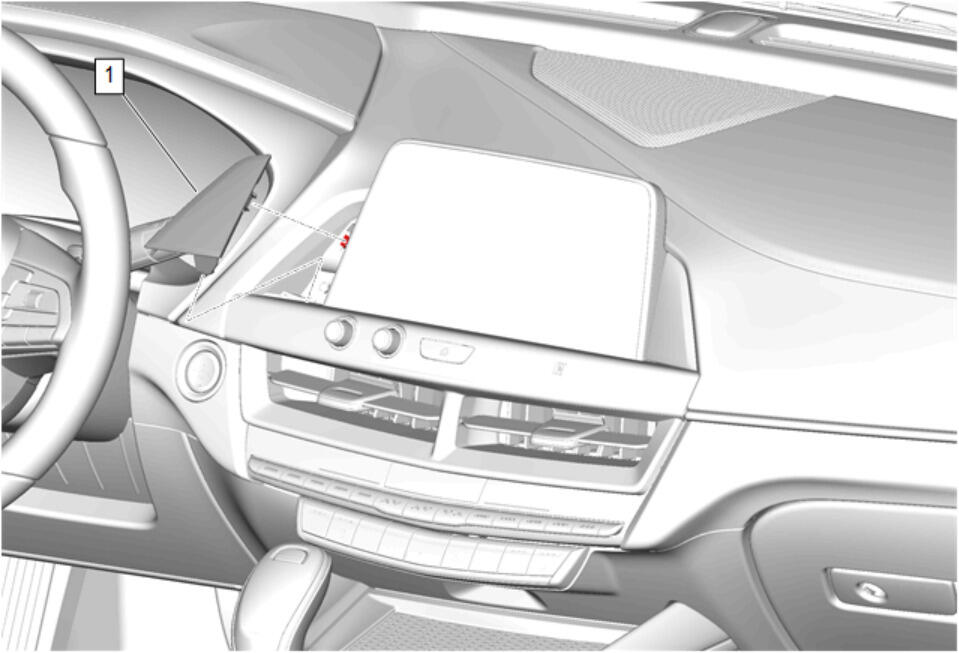

Instrument Panel Radio Front Trim Plate (1) - Install

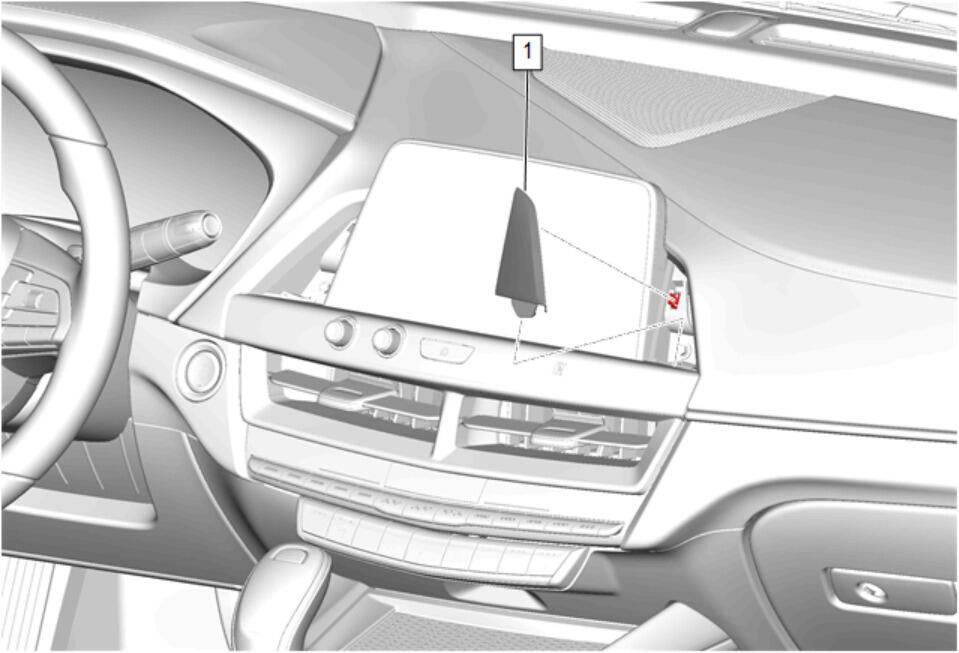

Instrument Panel Radio Front Trim Plate (1) - Install
CAUTION:
Refer to Fastener Caution .
