Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5436124Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Use a flat bladed trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).

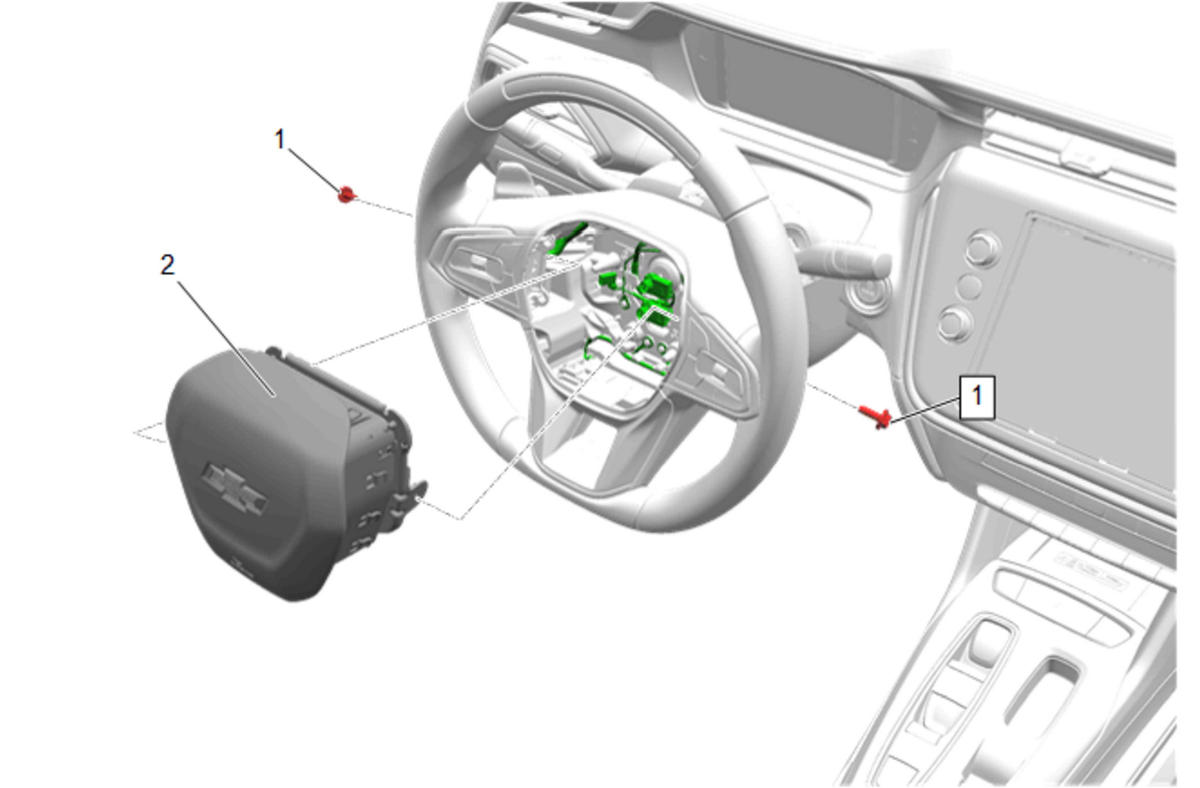

  3. GM5663078Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Bolt (1) - Remove [2x]

  4. Release the connector position assurance (CPA) retainer.
  5. Disconnect the electrical connectors.
  6. Steering Wheel Airbag (2) - Remove
  7. Inflatable Restraint Module Handling and Scrapping

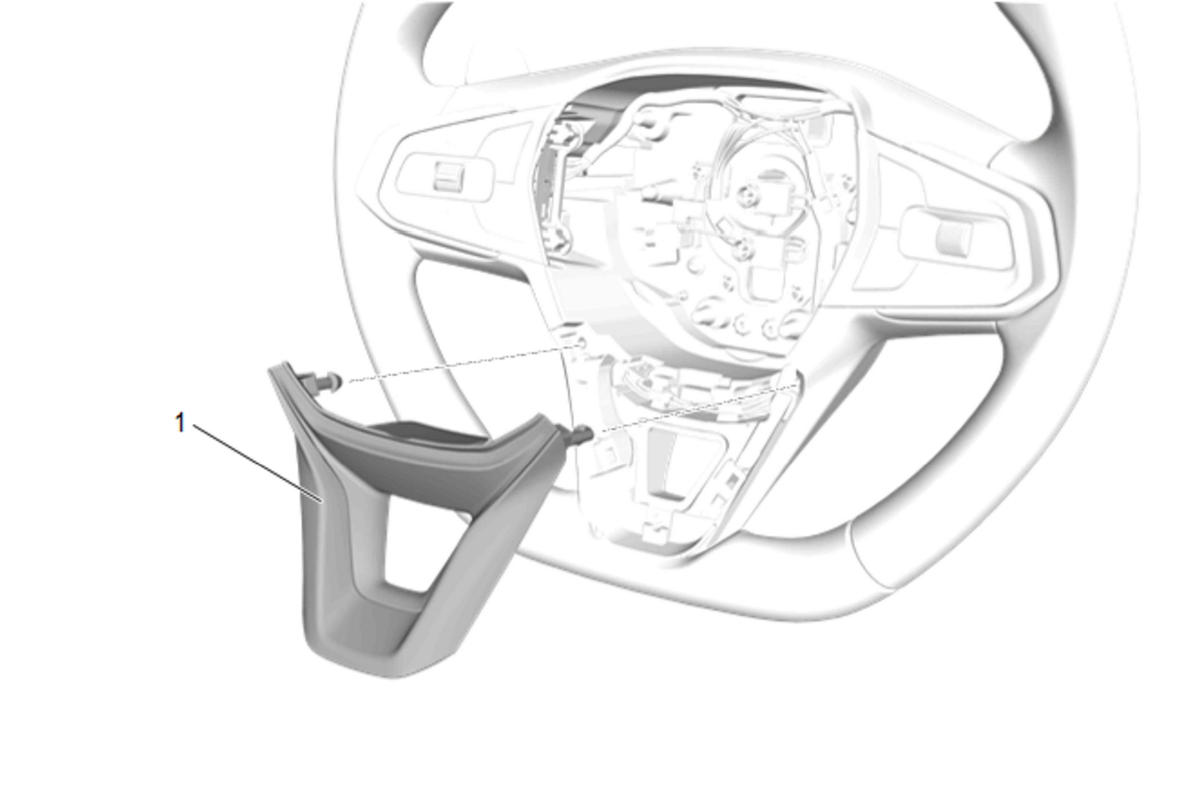

  8. GM5662755Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a flat bladed plastic tool to remove.

    Steering Wheel Trim Spoke Cover Applique (1) - Remove

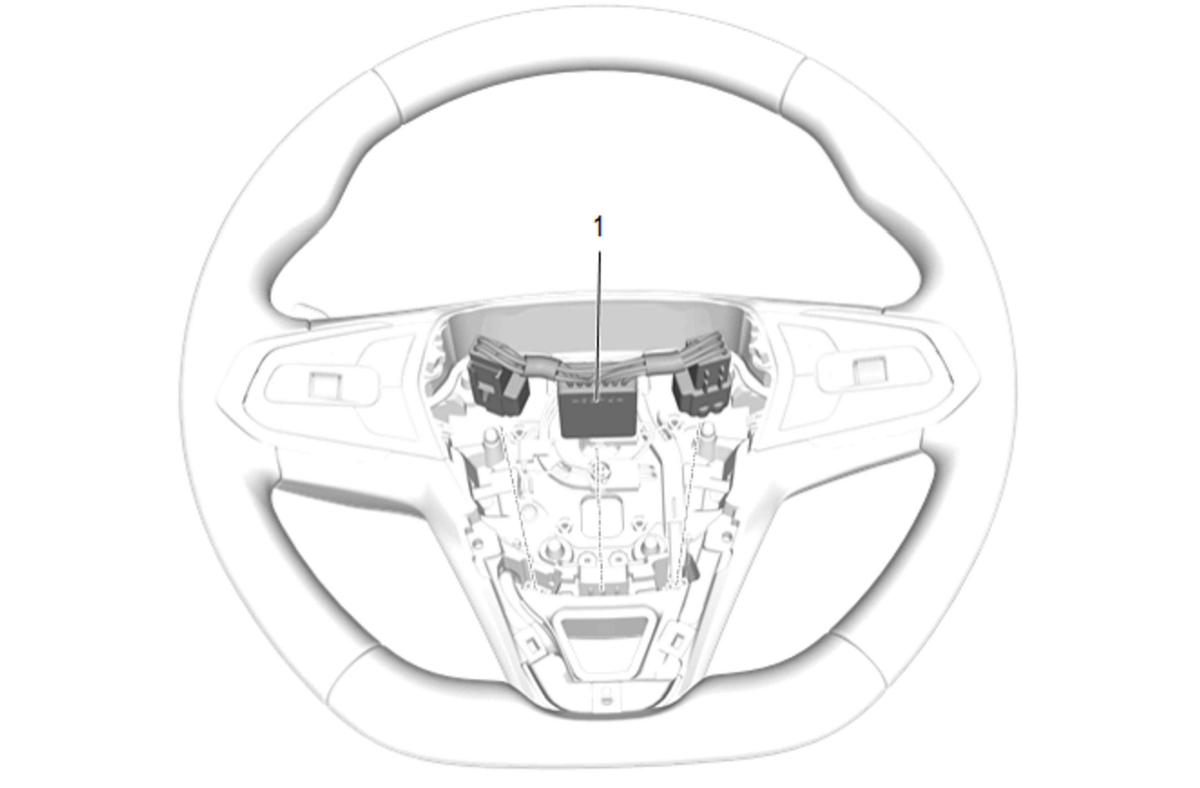

  9. GM5663077Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  10. Heated Steering Wheel Module (1) - Remove
