HVAC Assembly Components
HVAC Assembly Components

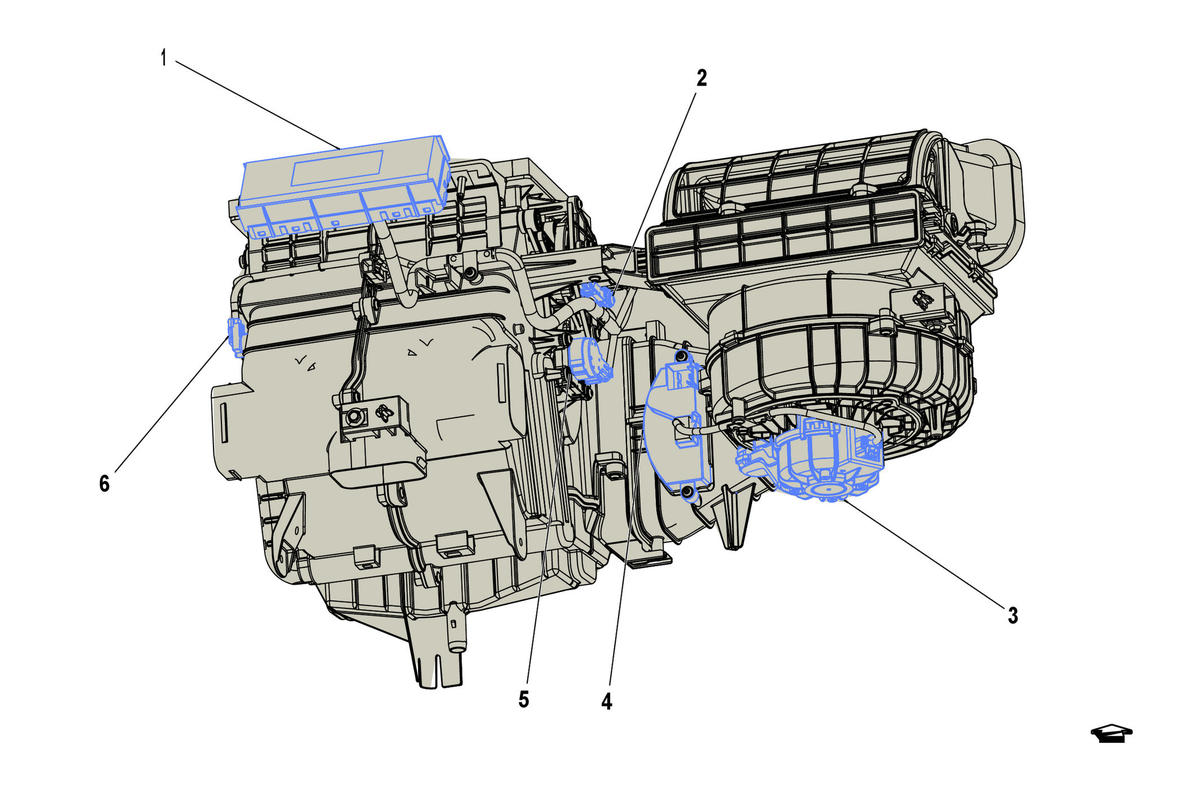

| Components |
|---|
| 1. K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 . |
| 2. M37 Mode Door Actuator M37 Mode Door Actuator |
| 3. M8 Blower Motor M8 Blower Motor |
| 4. K8 Blower Motor Control Module K8 Blower Motor Control Module X1 , or K8 Blower Motor Control Module X2 |
| 5. M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator |
| 6. B7F Air Temperature Sensor - Duct Upper B7F Air Temperature Sensor - Duct Upper |
