Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch (1)
Courtesy of GENERAL MOTORS COMPANY

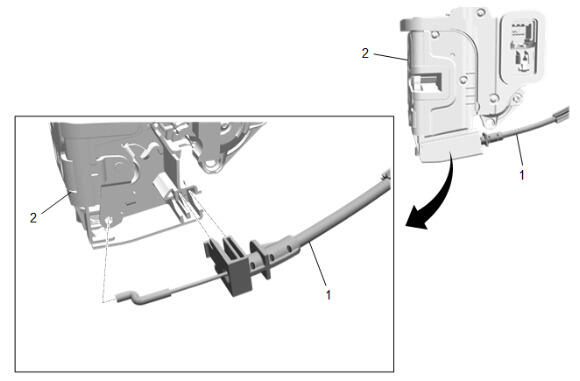

Front Side Door Inside Handle Cable (1) @ Front Side Door Latch (2) - Install
Using the appropriate tool, close the front side door latch access cover.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Cable (1) @ Front Side Door Latch (2) - Install
Courtesy of GENERAL MOTORS COMPANY

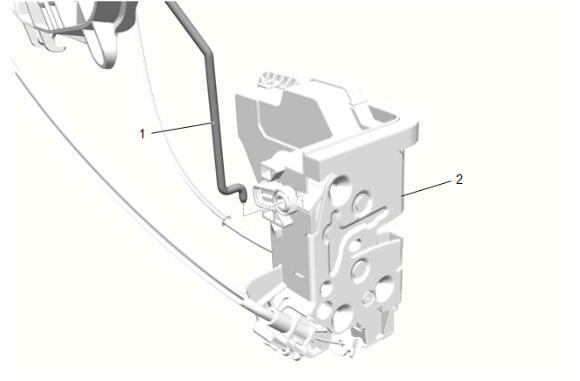

{ If equipped } Front Side Door Lock Cylinder Rod (1) @ Front Side Door Latch (2) - Install
Courtesy of GENERAL MOTORS COMPANY

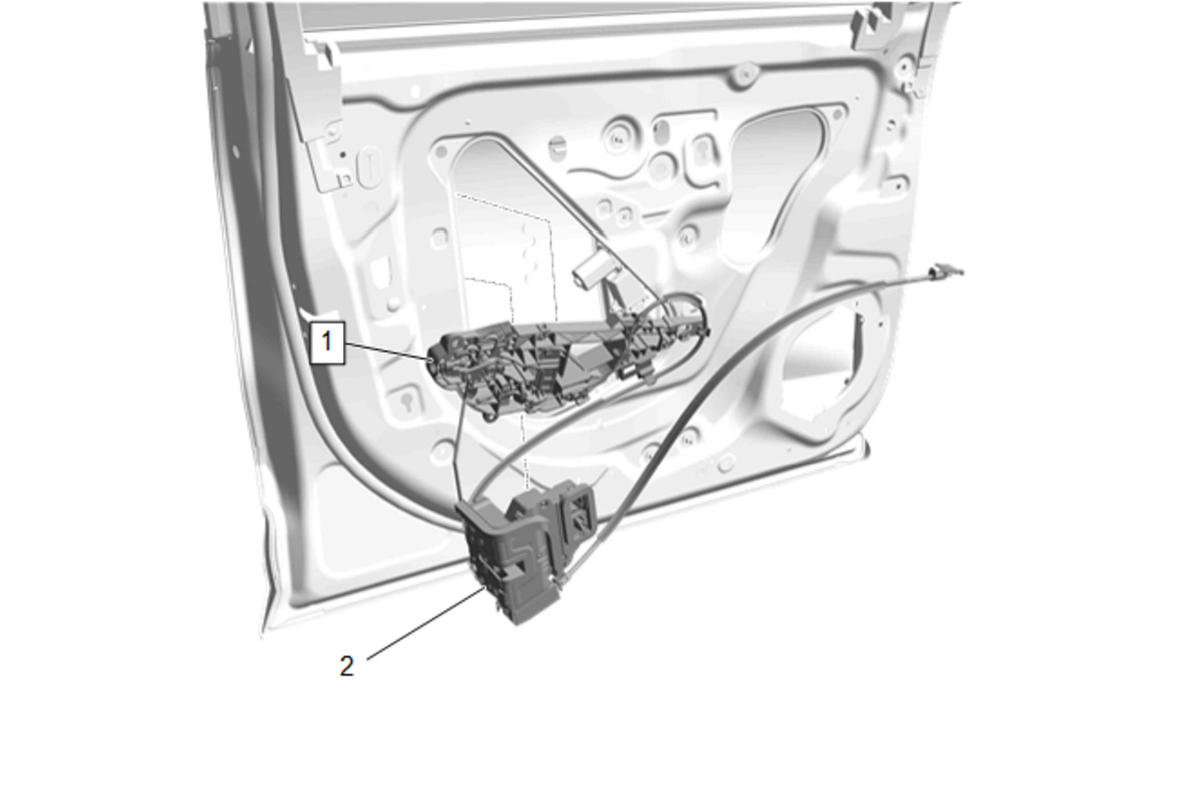

Install the front side door outside handle bracket (1) and the front side door latch (2) as an assembly.
Install the wiring harness to the front side door outside handle bracket (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Front Side Door Latch Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

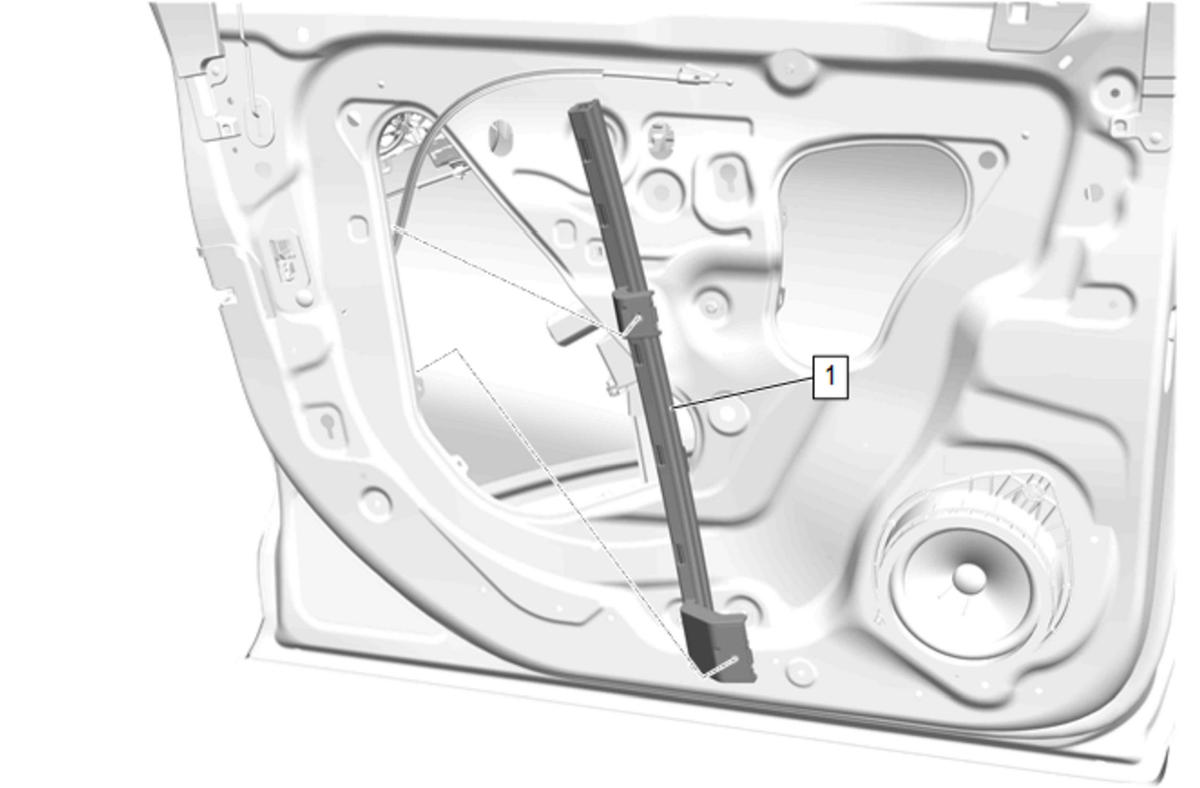

Front Side Door Window Channel Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Window Channel Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

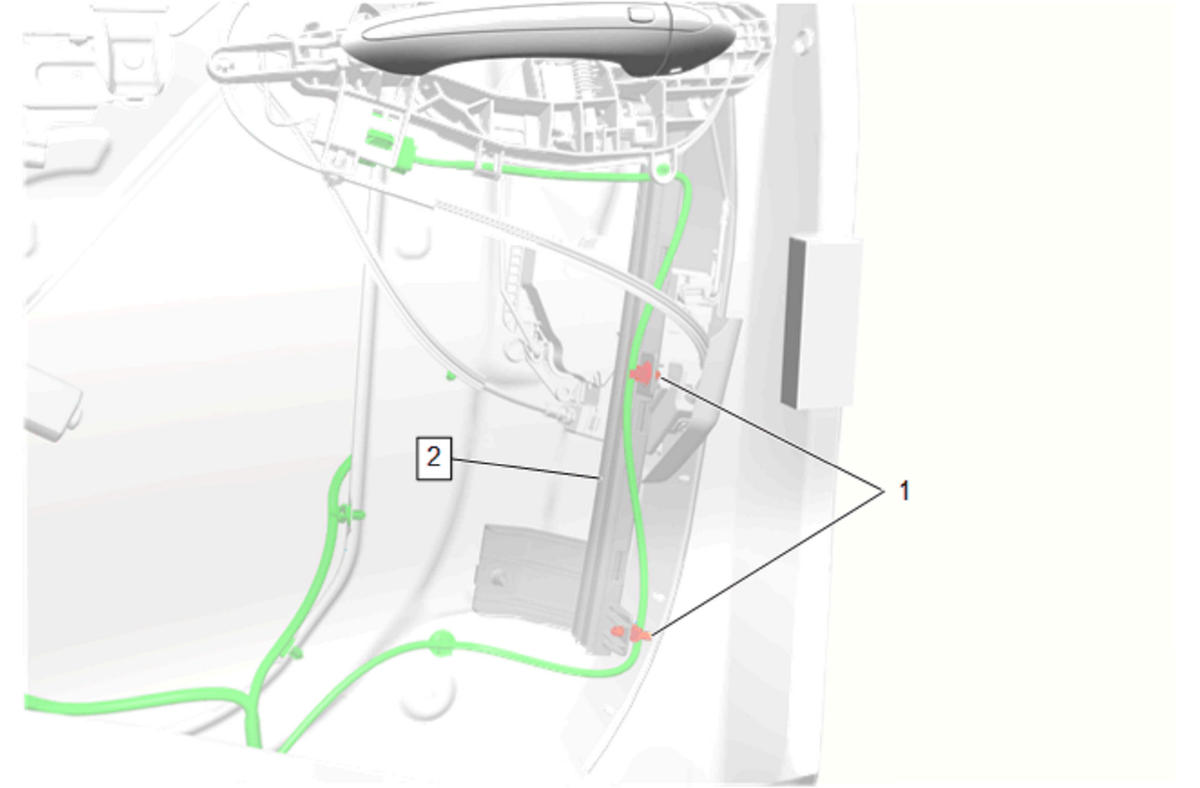

Front Side Door Wiring Harness Retainer (1) @ Front Side Door Window Channel Retainer (2) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

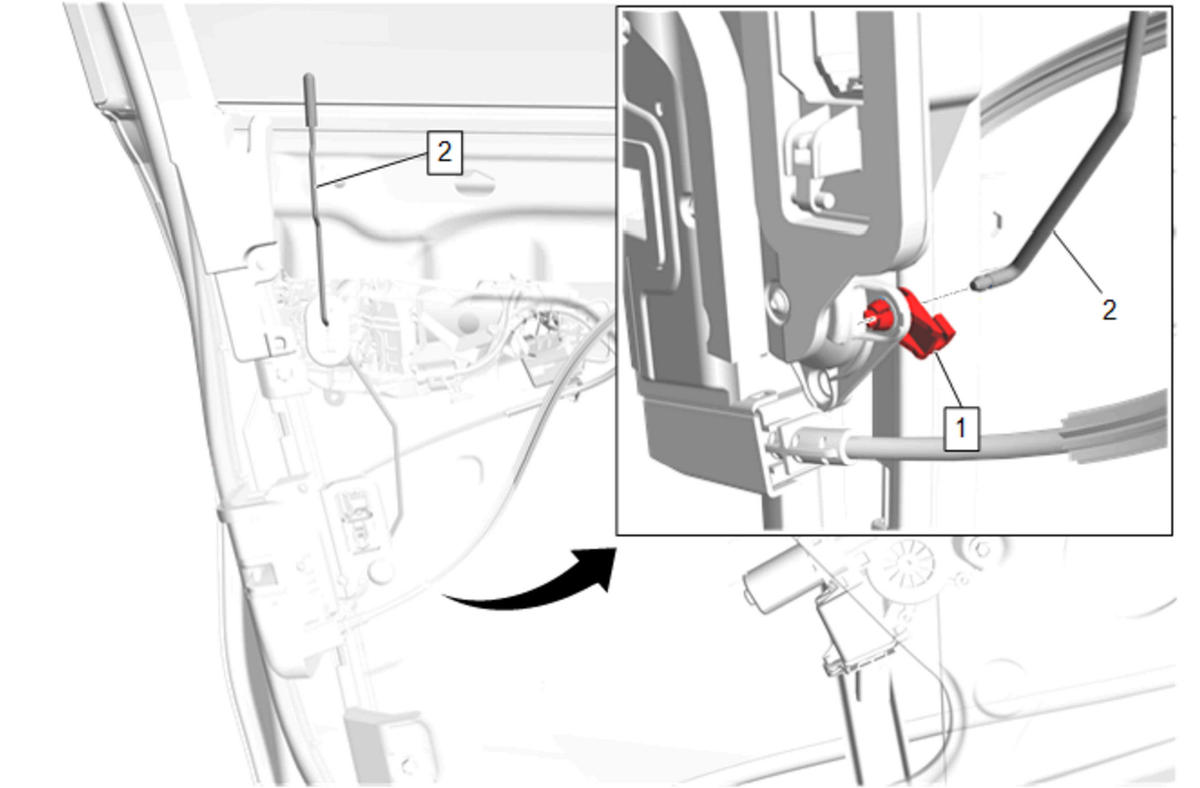

Front Side Door Locking Rod Knob (2) - Install
Front Side Door Locking Rod Knob Clip (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Fastener (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

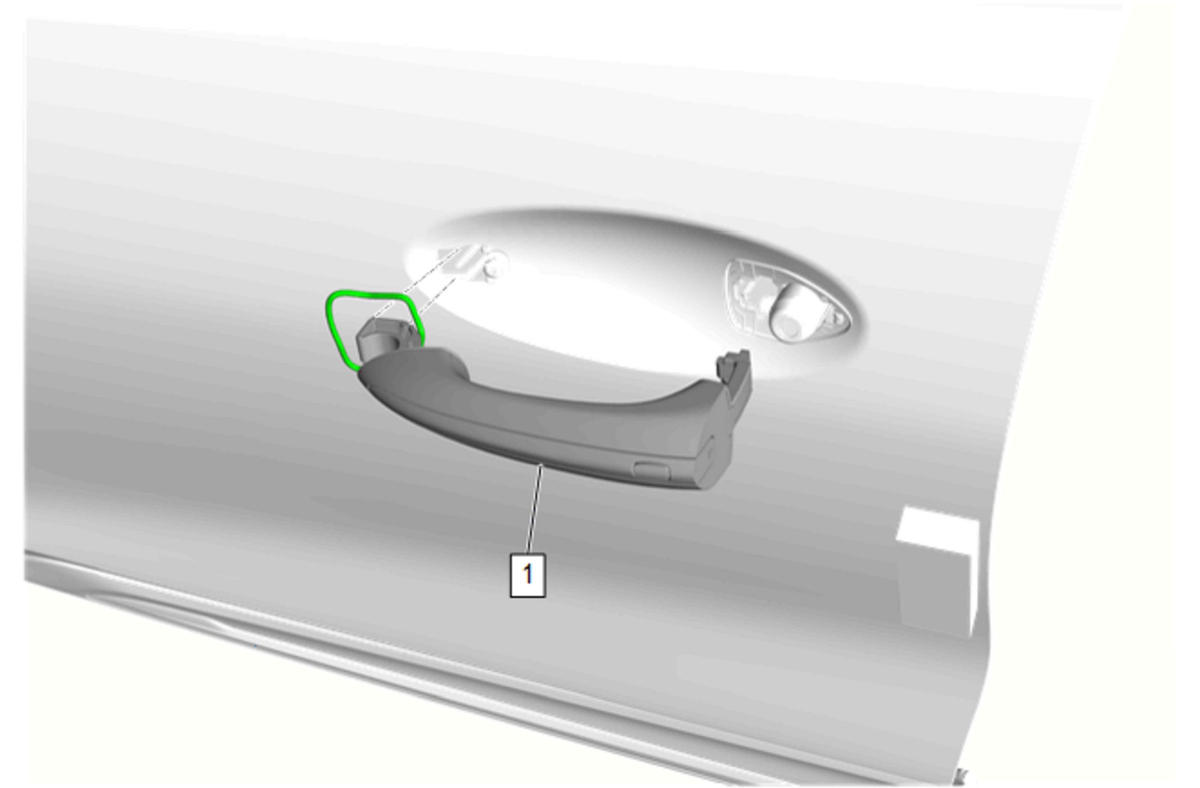

Install the front part of the front side door outside handle (1) into the front side door outside handle bracket.
Courtesy of GENERAL MOTORS COMPANY

Install the rear part of the front side door outside handle (1) into the front side door outside handle bracket and slide the front side door outside handle forward.
Courtesy of GENERAL MOTORS COMPANY

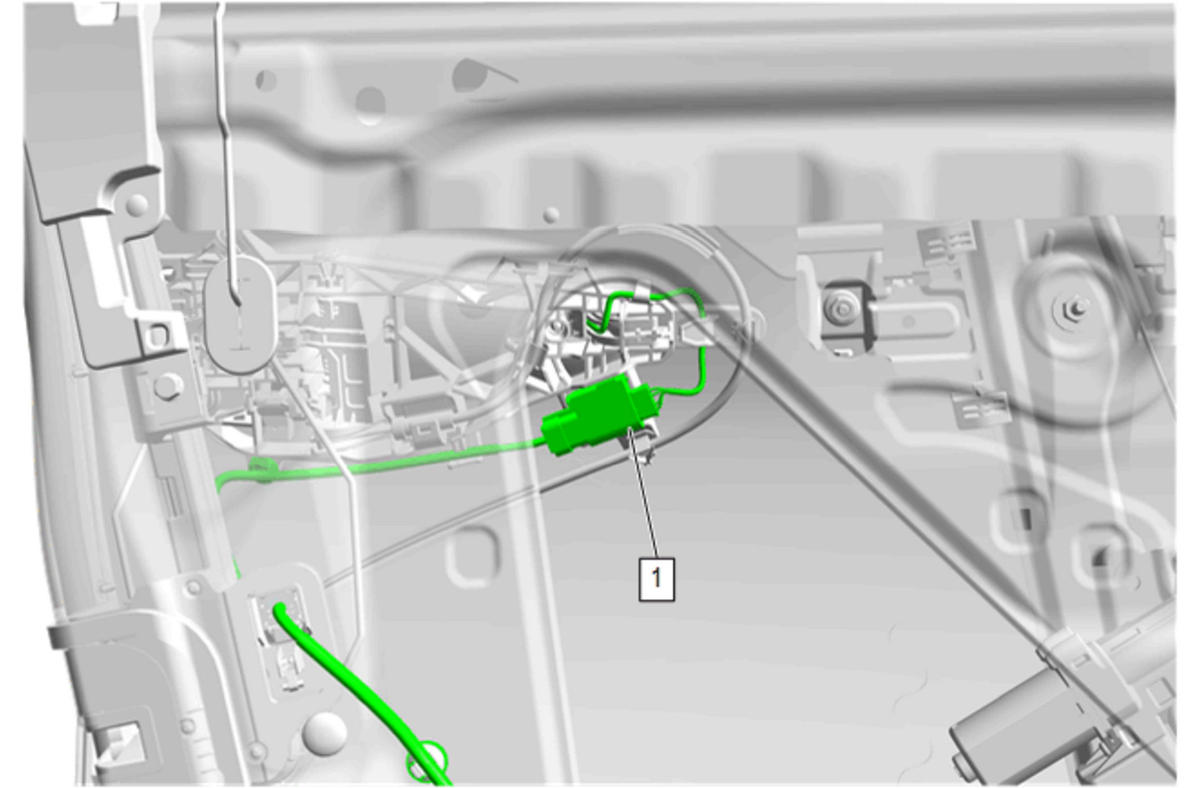

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

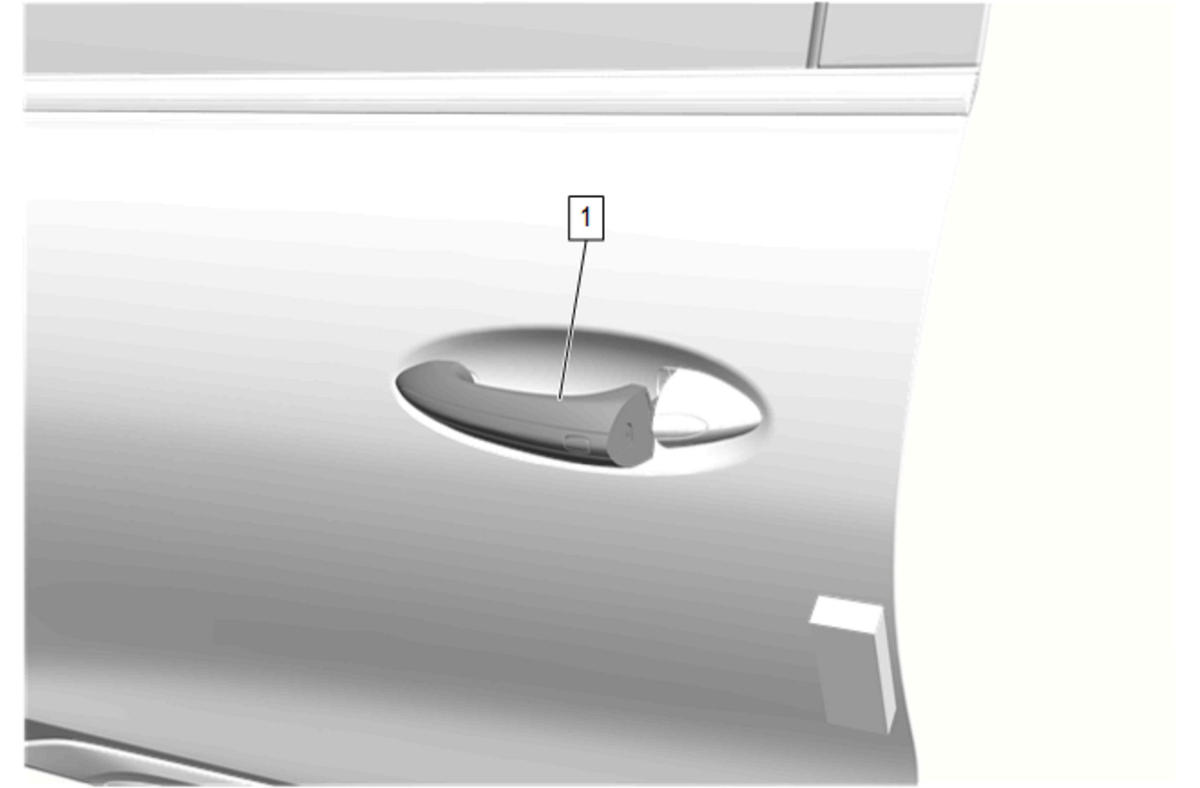

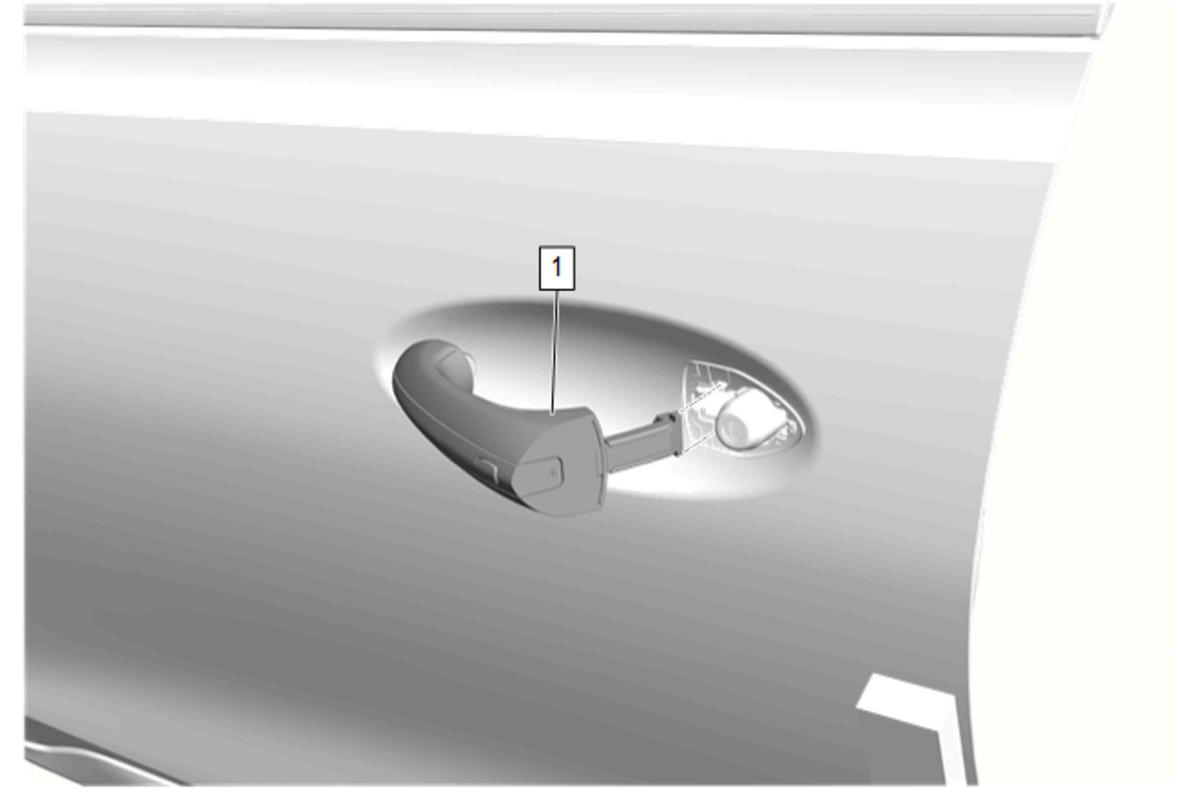

Pull the front side door outside handle (1) outwards to the open position.
Courtesy of GENERAL MOTORS COMPANY

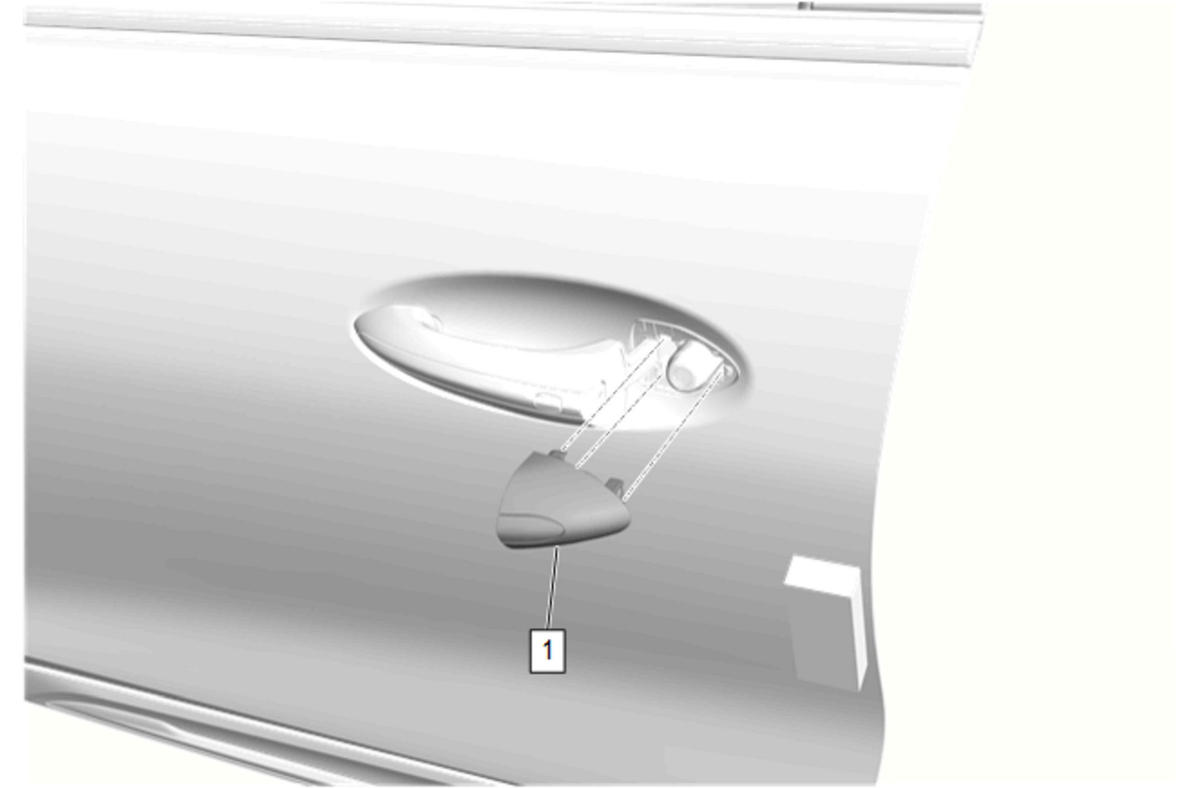

Front Side Door Lock Cylinder Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

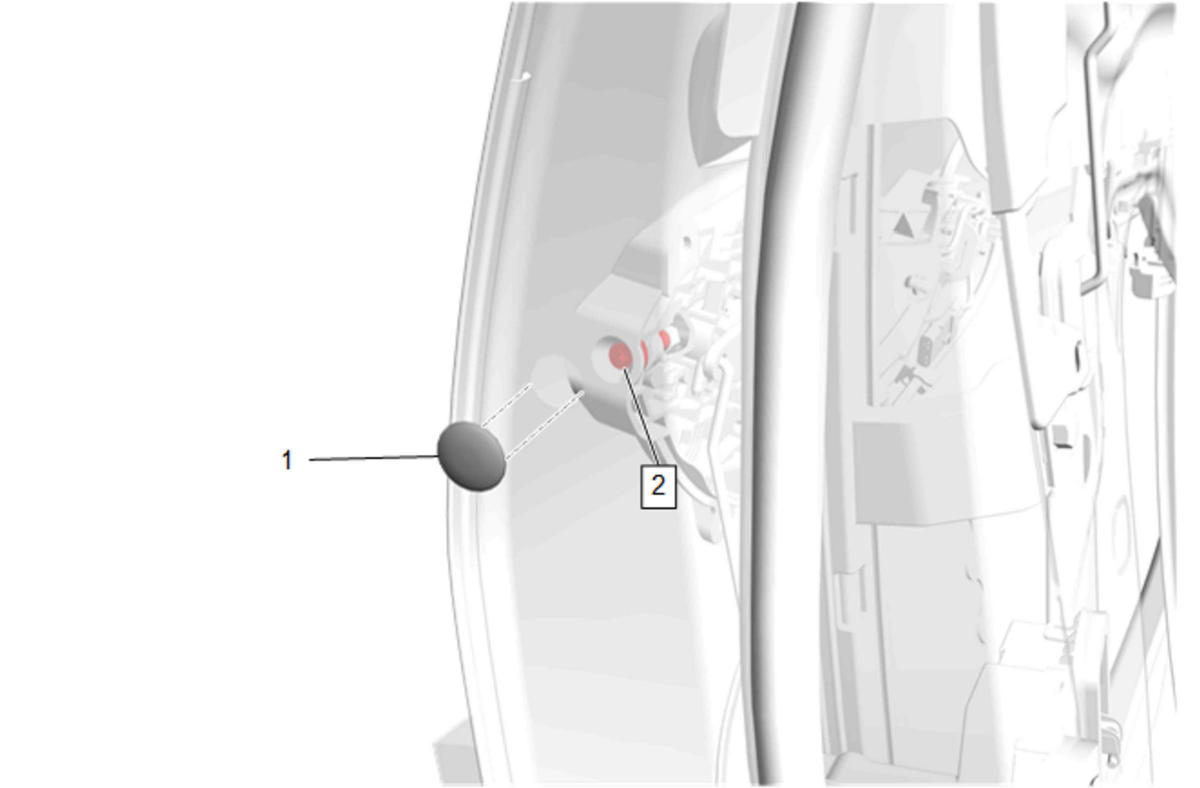

Front Side Door Outside Handle Bracket Bolt (2) - Tighten - Fastener Specifications
Front Side Door Opening Frame Hole Plug (1) - Install
Inspect the door latch, window, and outside handle for proper operation before installing the door trim.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Route front side door inside handle cable through hole in deflector (1).

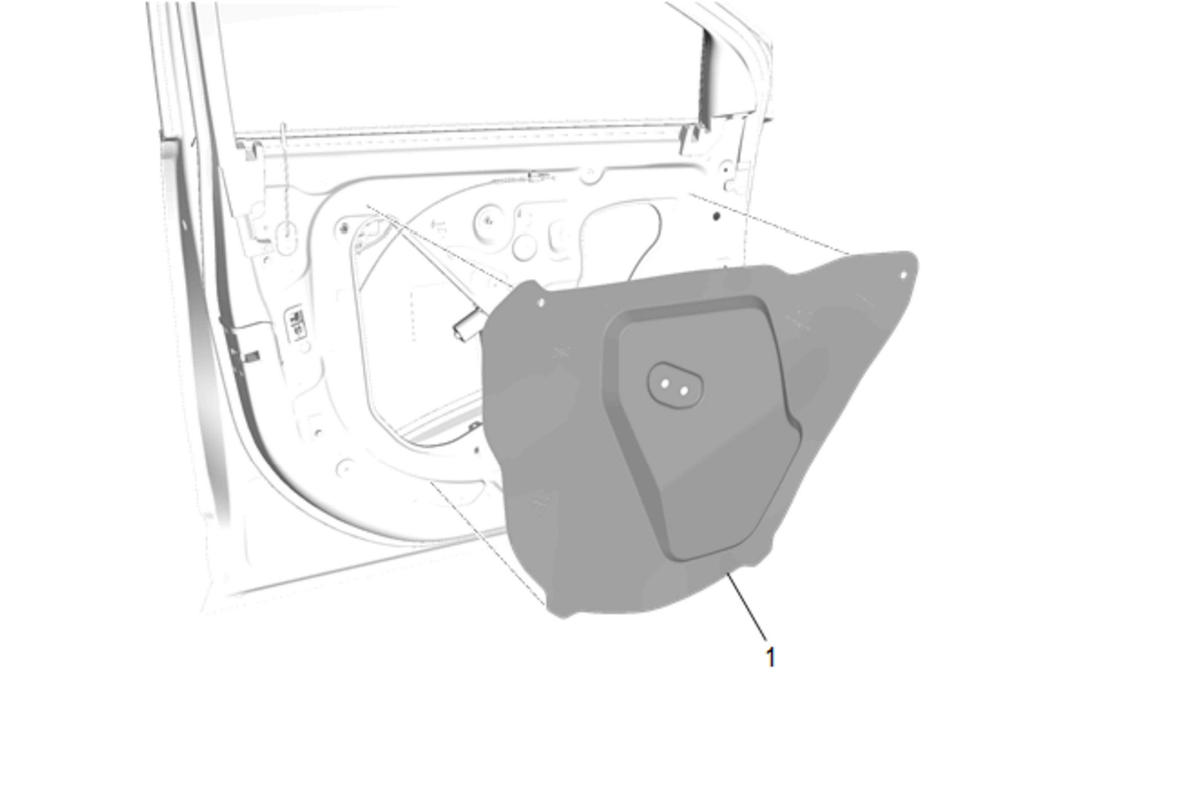

Front Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

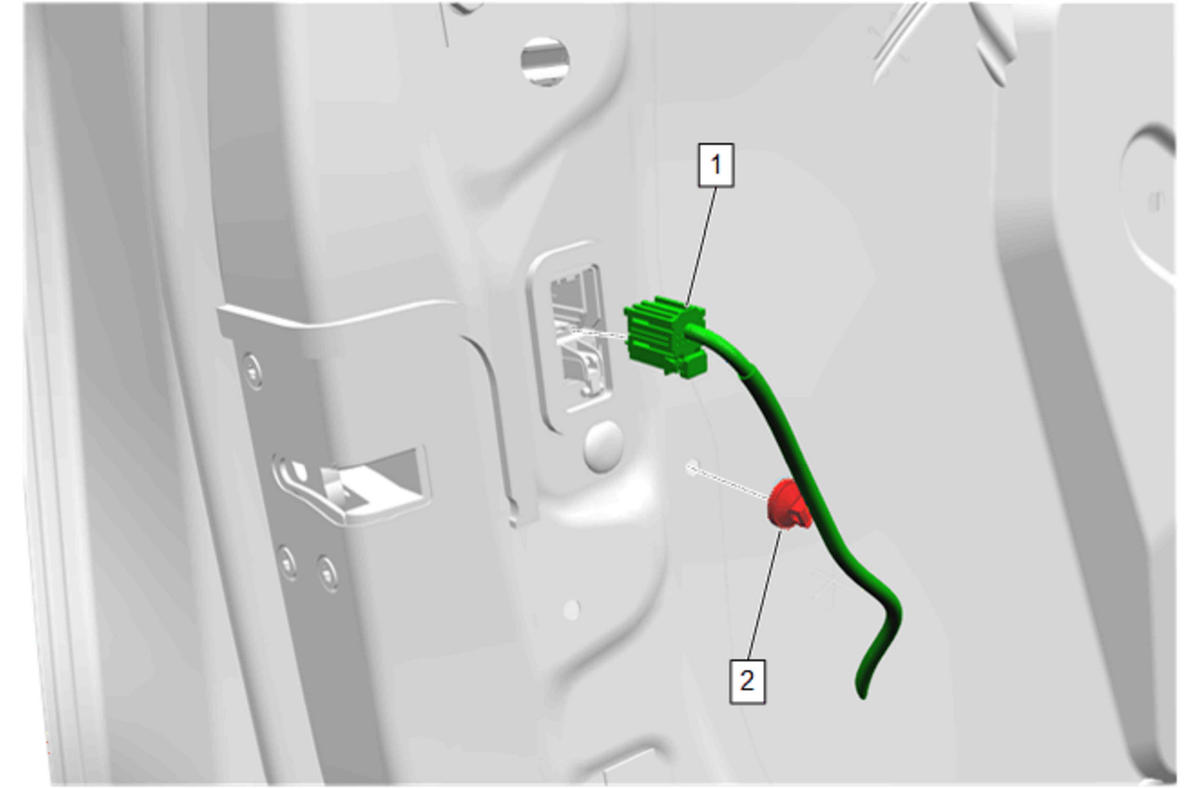

Electrical Connector (1) @ Front Side Door Latch - Connect
Wiring Harness Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

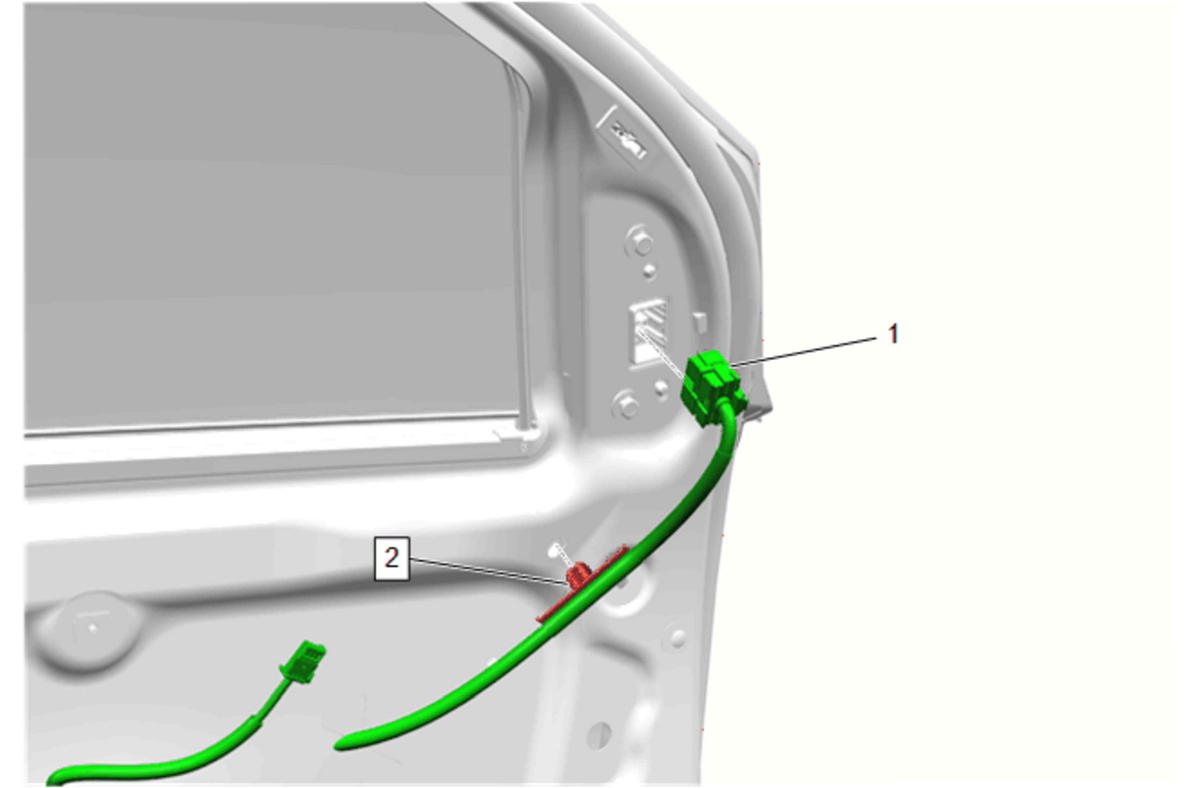

Electrical Connector (1) @ Outside Rearview Mirror - Connect
Wiring Harness Clip (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:

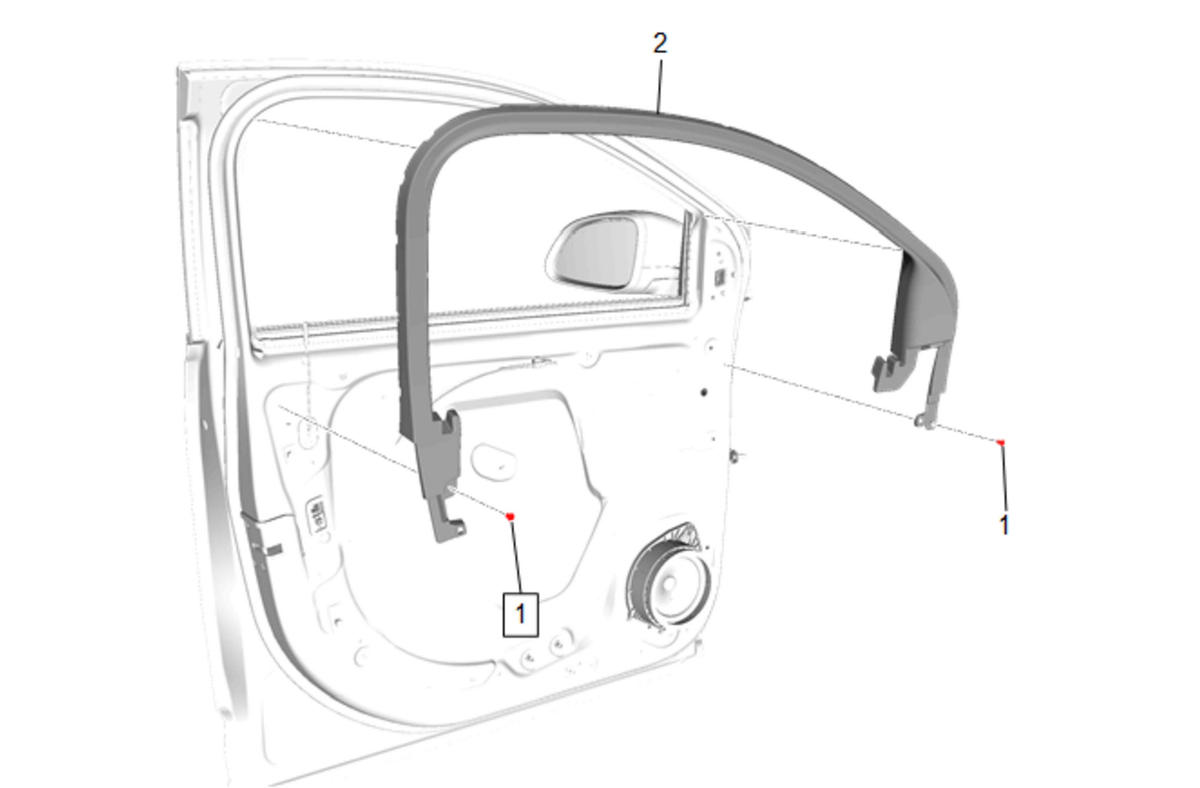

Ensure that the door weatherstrip is not trapped below the window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.

Front Side Door Window Garnish Molding (2) - Install
Front Side Door Window Garnish Molding Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

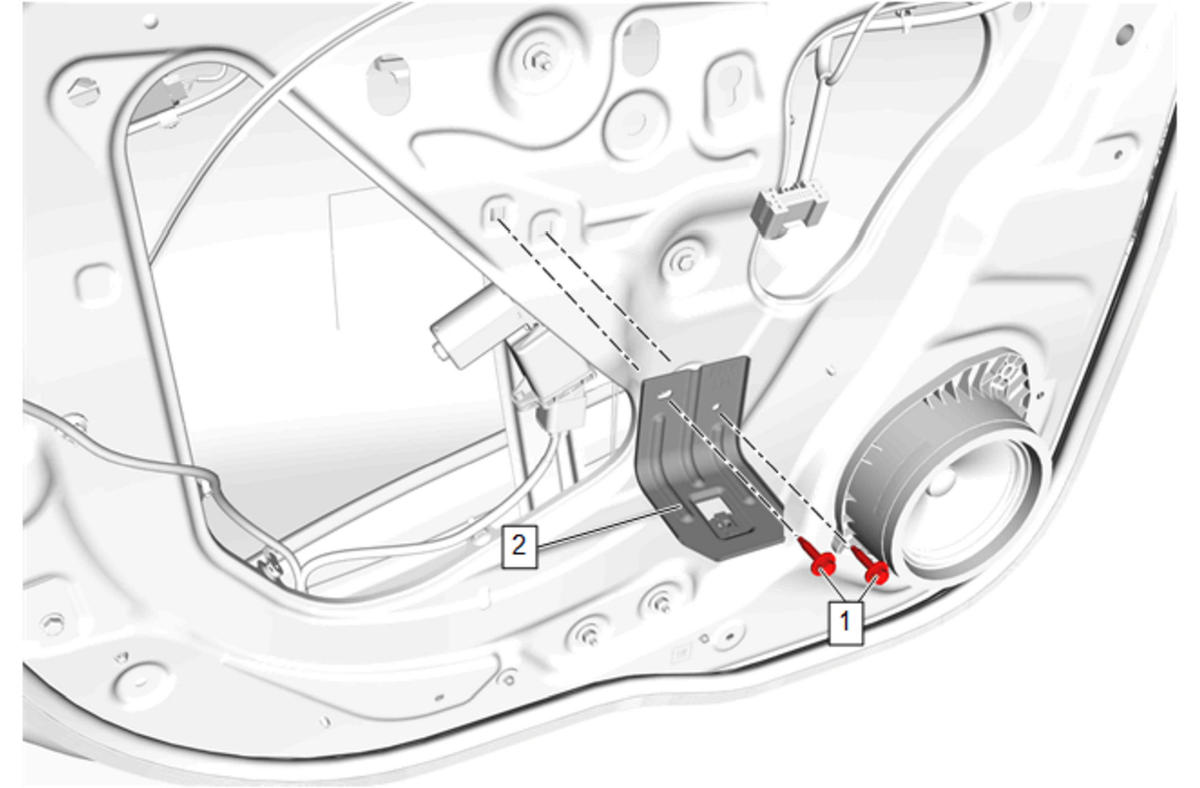

Front Side Door Armrest Bracket (2) - Install
Front Side Door Armrest Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (1) - Install - Front Side Door Trim Removal and Installation
