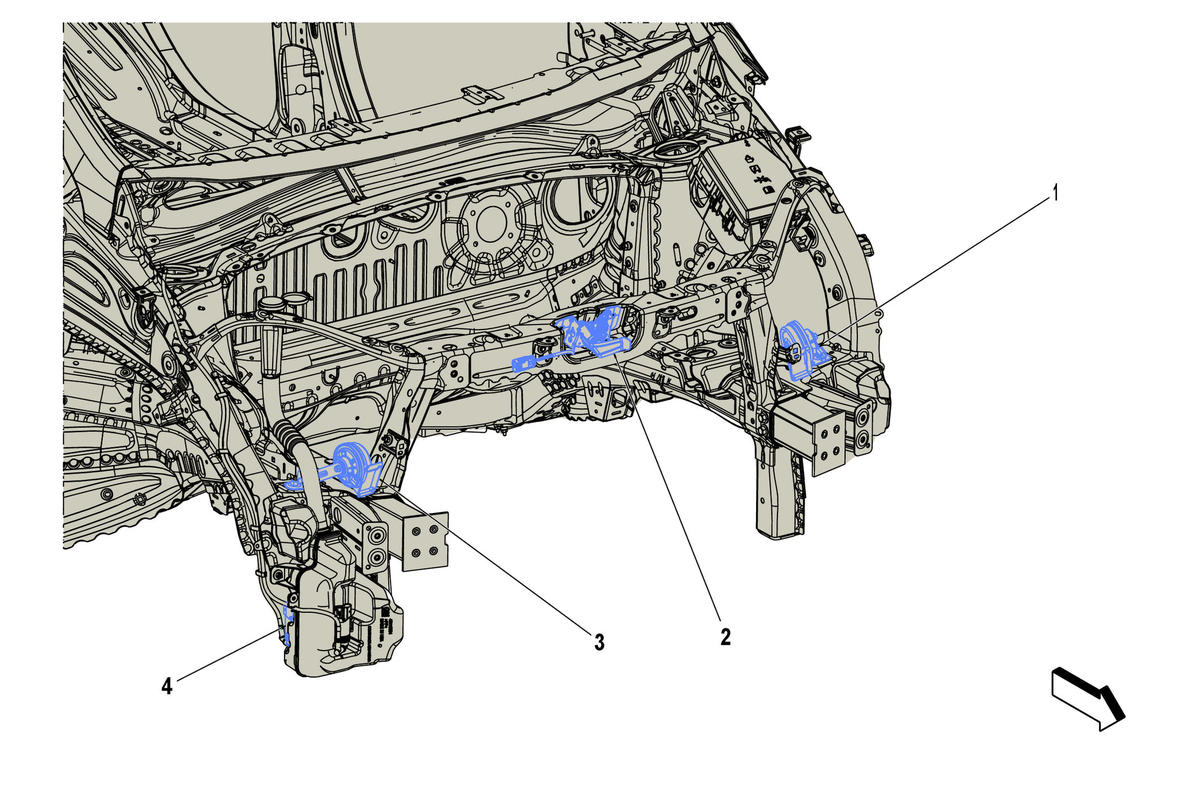

Front of Engine Compartment
Front of Engine Compartment
| Harness Name | Callout |
|---|---|
| P12L Horn - Left P12L Horn - Left | 1 |
| B55 Engine Hood Switch B55 Engine Hood Switch | 2 |
| P12R Horn - Right P12R Horn - Right | 3 |
| G24 Windshield Washer Pump G24 Windshield Washer Pump | 4 |
