Fastener Specifications

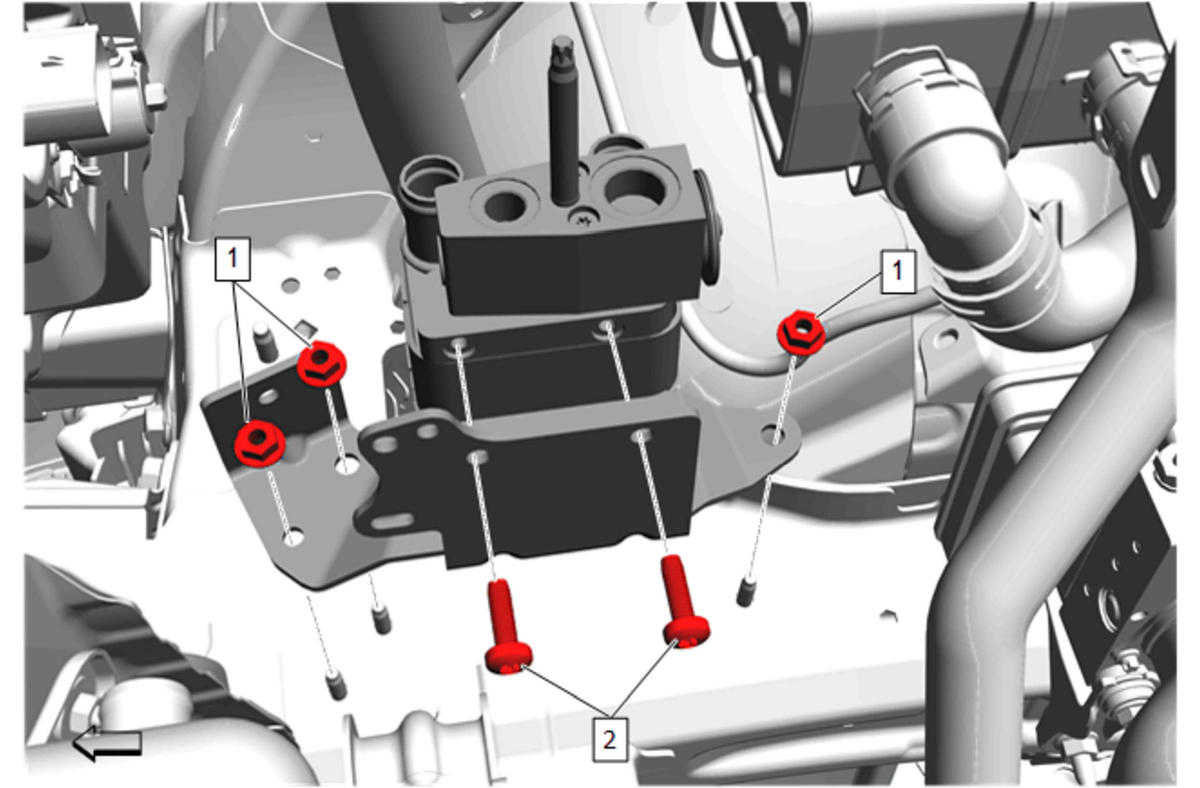

GM5760487Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Coolant Cooler Bracket

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Coolant Cooler Bracket Nut [3x] - - 9 N.m (80 lb in) Drive Motor Battery Coolant Cooler Replacement
2 Drive Motor Battery Coolant Cooler Bracket Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Coolant Cooler Replacement

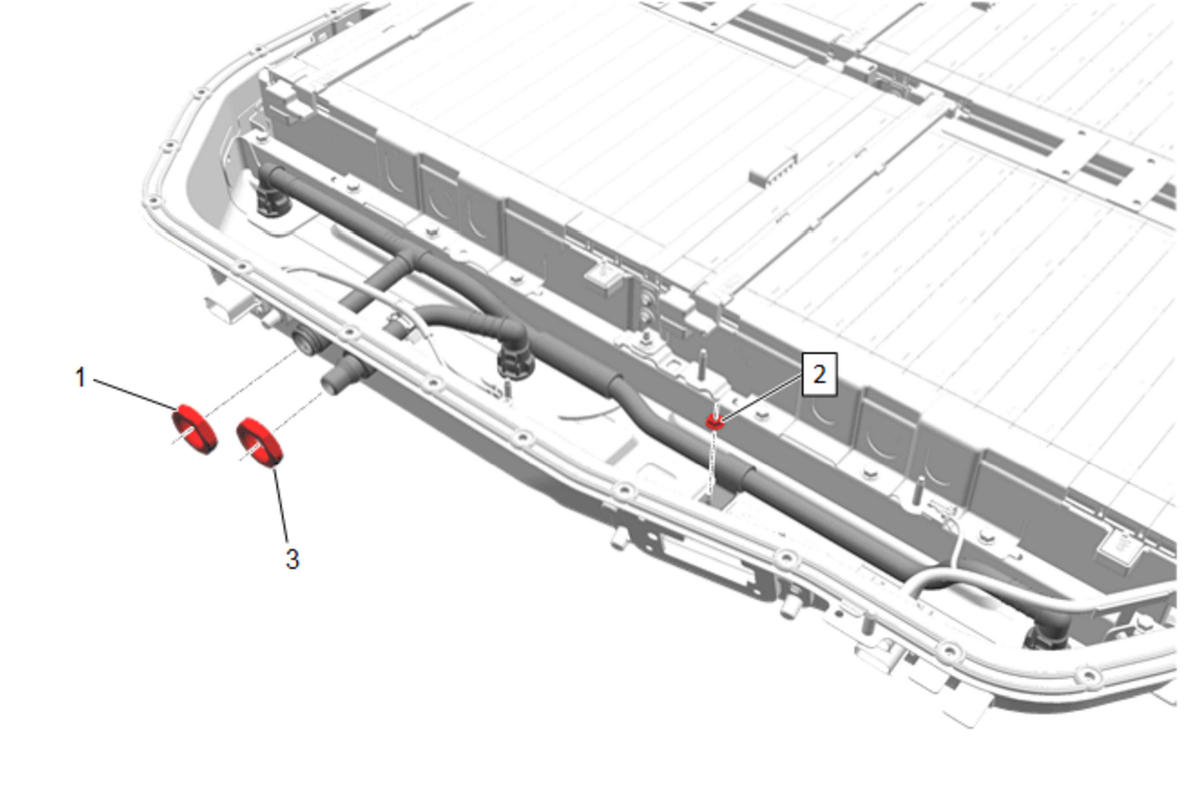

GM5760488Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Coolant Inlet and Outlet Hose

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Coolant Port Nut - - 40 N.m (30 lb ft) Drive Motor Battery Coolant Inlet Pipe Replacement
2 Drive Motor Battery Coolant Inlet Hose Nut - - 5 N.m (44 lb in) Drive Motor Battery Coolant Inlet Pipe Replacement
3 Drive Motor Battery Coolant Port Nut - - 40 N.m (30 lb ft) Drive Motor Battery Coolant Outlet Hose Replacement

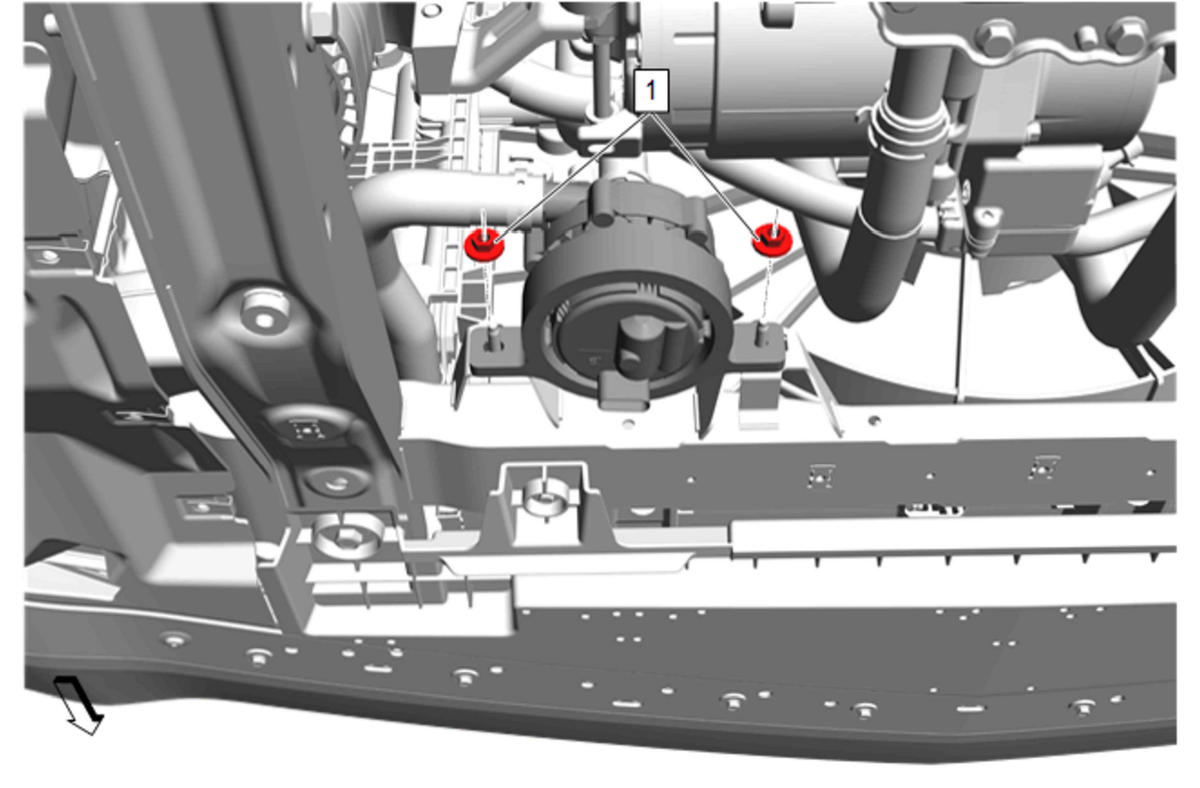

GM5760489Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Coolant Pump (PE Pump)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Coolant Pump Bracket Nut [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Coolant Pump Replacement (PE Pump) , or Hybrid/Electric Vehicle Battery Coolant Pump Replacement (RESS Pump)

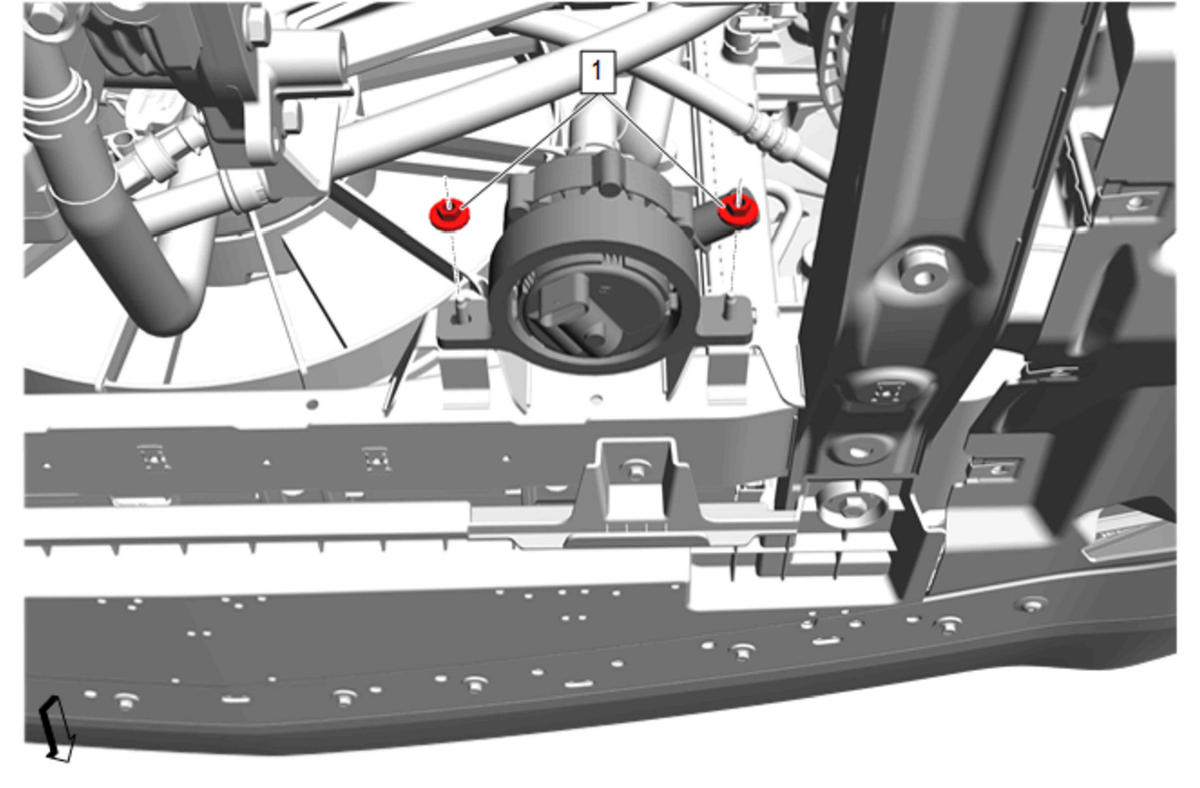

GM5760490Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Coolant Pump (RESS Pump)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Coolant Pump Bracket Nut [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Coolant Pump Replacement (PE Pump) , or Hybrid/Electric Vehicle Battery Coolant Pump Replacement (RESS Pump)

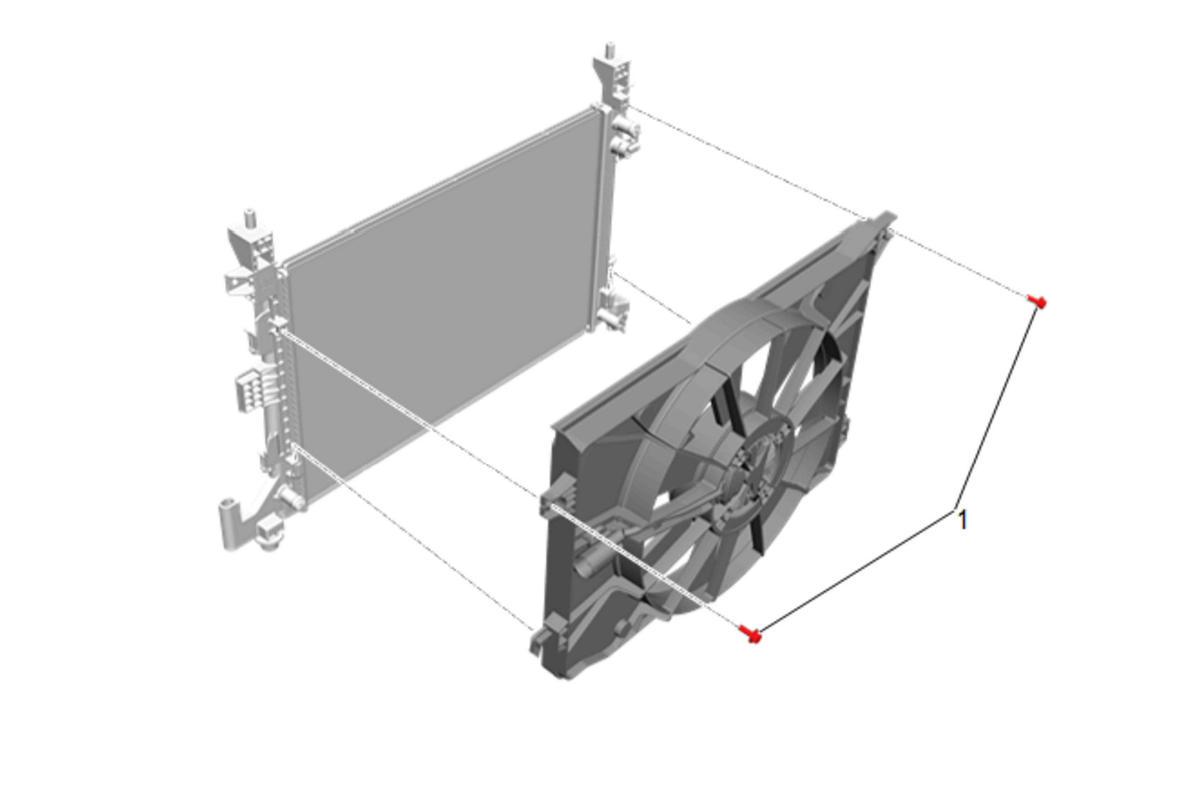

GM5760491Courtesy of GENERAL MOTORS COMPANY
Engine Cooling Fan

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cooling Fan Bolt [2x] - - 5 N.m (44 lb in) Radiator Replacement

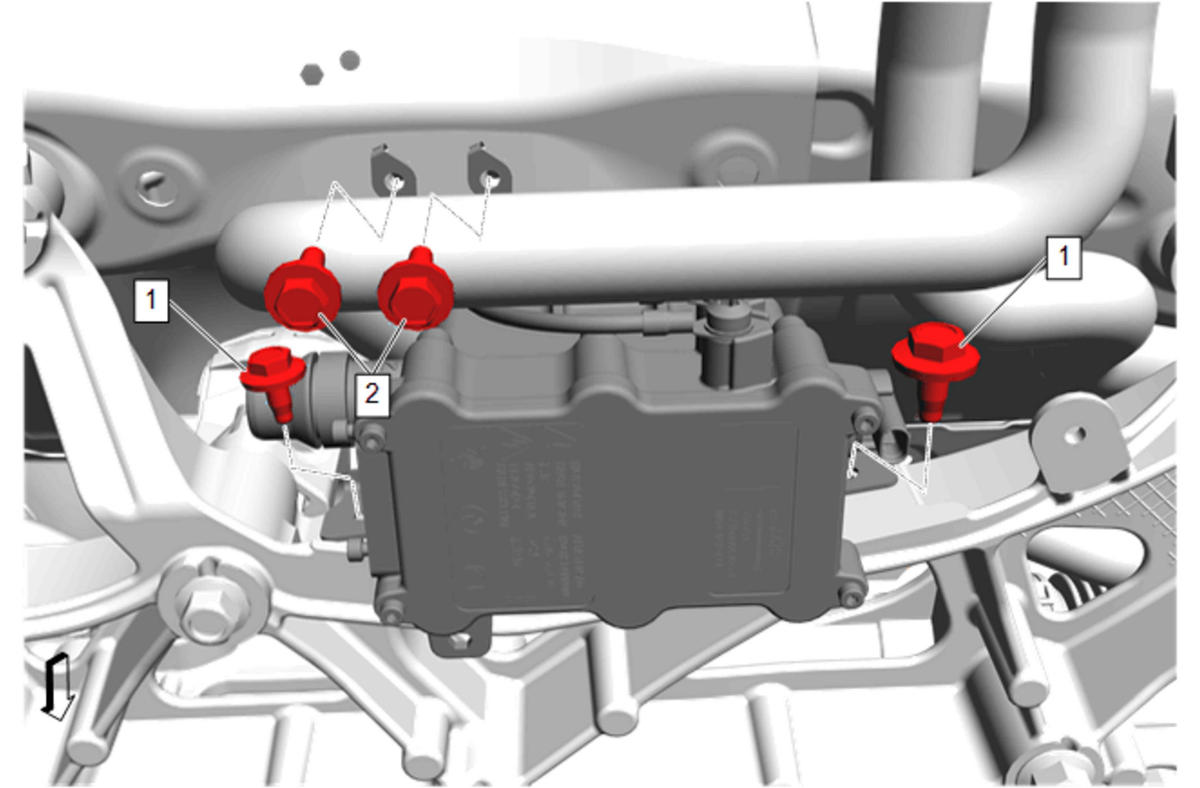

GM5760492Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Heater

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Heater Bracket Bolt [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Coolant Heater Replacement
2 Ground Cable Bolt [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Coolant Heater Replacement
GM5760493Courtesy of GENERAL MOTORS COMPANY
Radiator Air Lower Baffle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Air Lower Baffle Bolt [2x] - - 9 N.m (80 lb in) Radiator Air Lower Baffle and Deflector Replacement

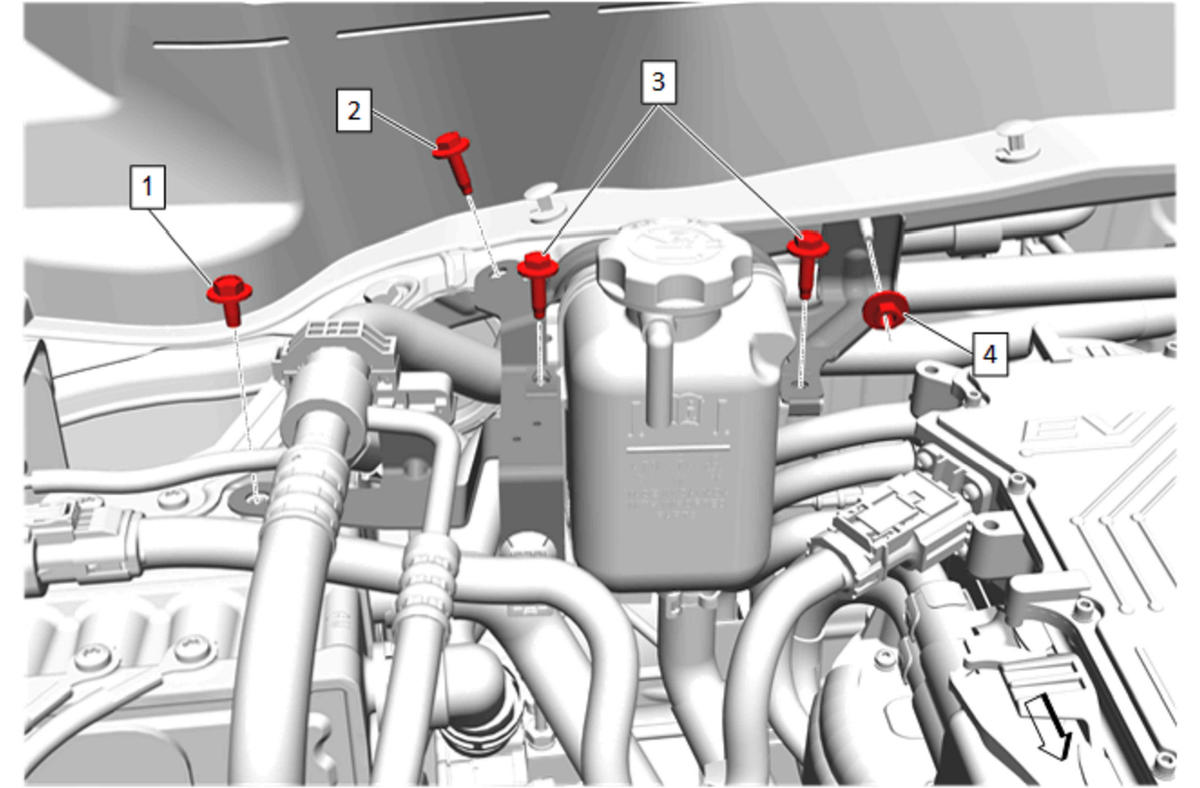

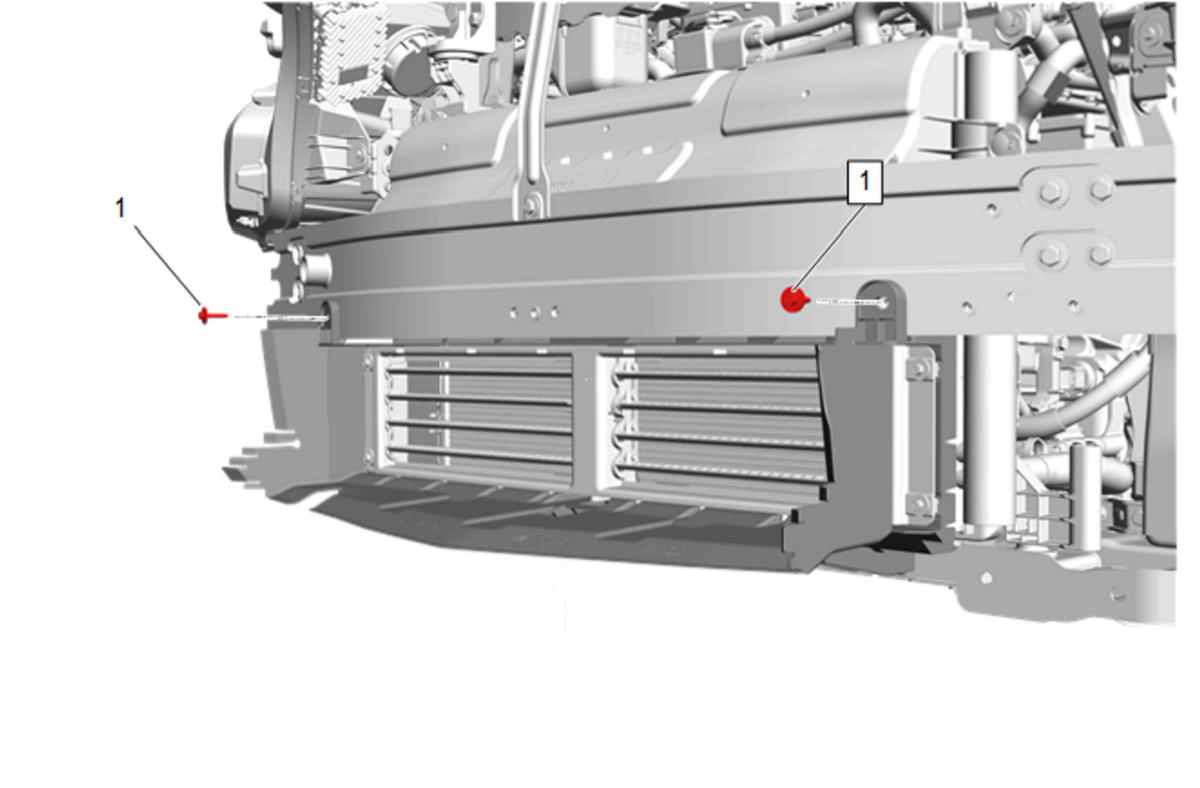

GM5760494Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank Support Bracket (Heater)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater Water Flow Control Valve Bolt - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
2 Radiator Surge Tank Bracket Bolt - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
3 Radiator Surge Tank Bolt [2x] - - 4.5 N.m (40 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
4 Radiator Surge Tank Bracket Nut - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)

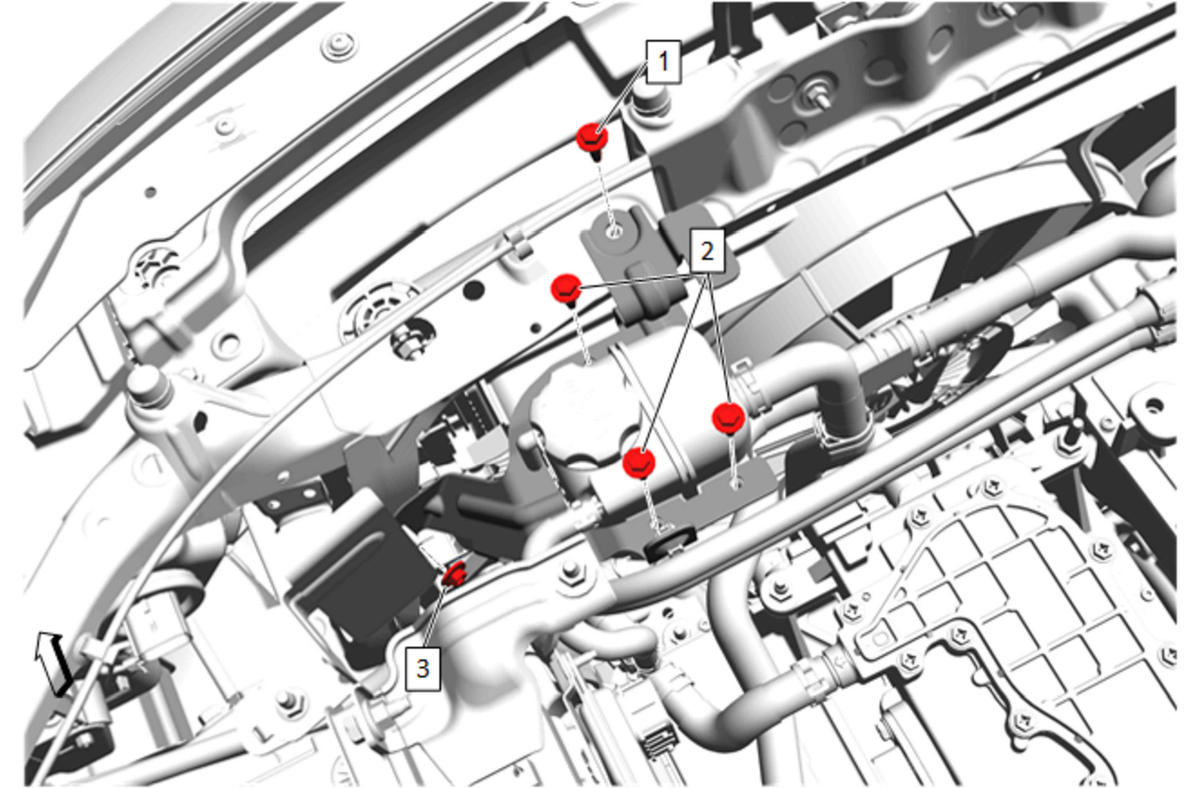

GM5760495Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank Support Bracket (Radiator)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Surge Tank Bracket Bolt - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
2 Radiator Surge Tank Bolt [3x] - - 4.5 N.m (40 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
3 Radiator Surge Tank Bracket Nut - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)

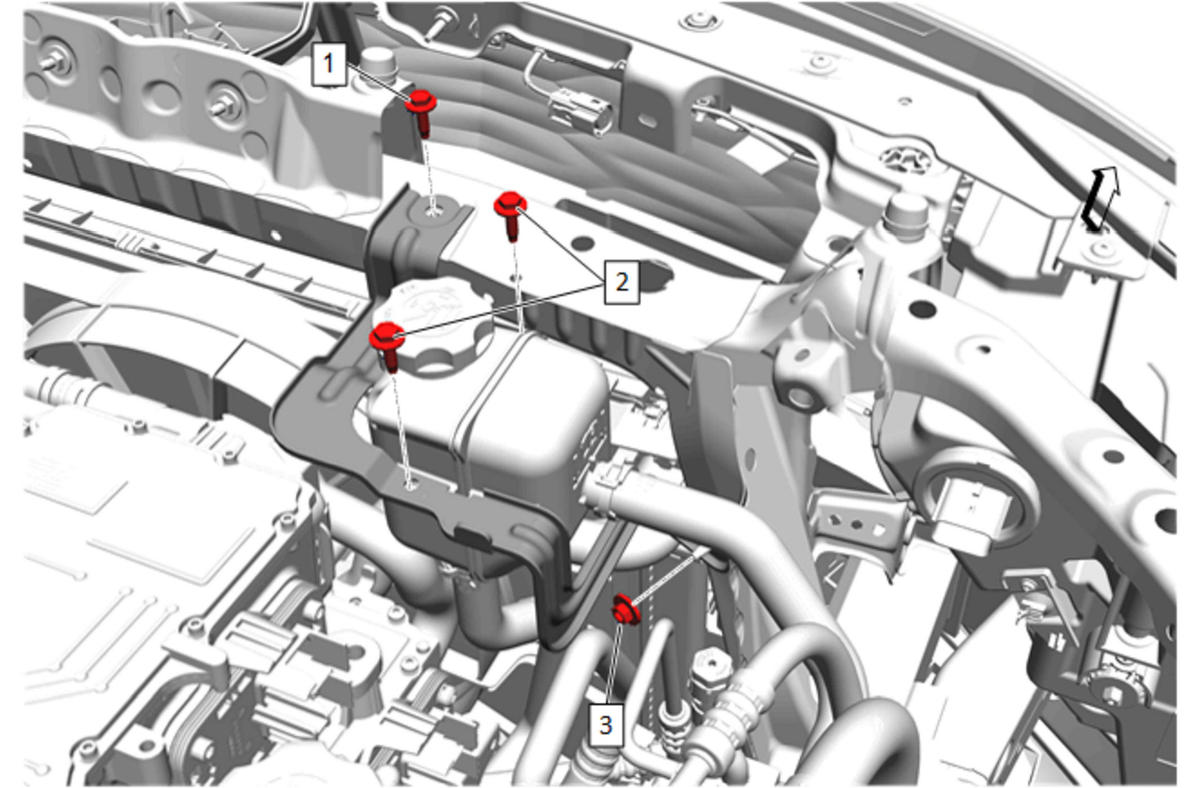

GM5760496Courtesy of GENERAL MOTORS COMPANY
Radiator Surge Tank Support Bracket (RESS)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Radiator Surge Tank Bracket Bolt - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
2 Drive Motor Battery Radiator Surge Tank Bolt [2x] - - 4.5 N.m (40 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)
3 Drive Motor Battery Radiator Surge Tank Bracket Nut - - 9 N.m (80 lb in) Radiator Surge Tank Support Bracket Replacement (Radiator) , or Radiator Surge Tank Support Bracket Replacement (RESS) , or Radiator Surge Tank Support Bracket Replacement (Heater)

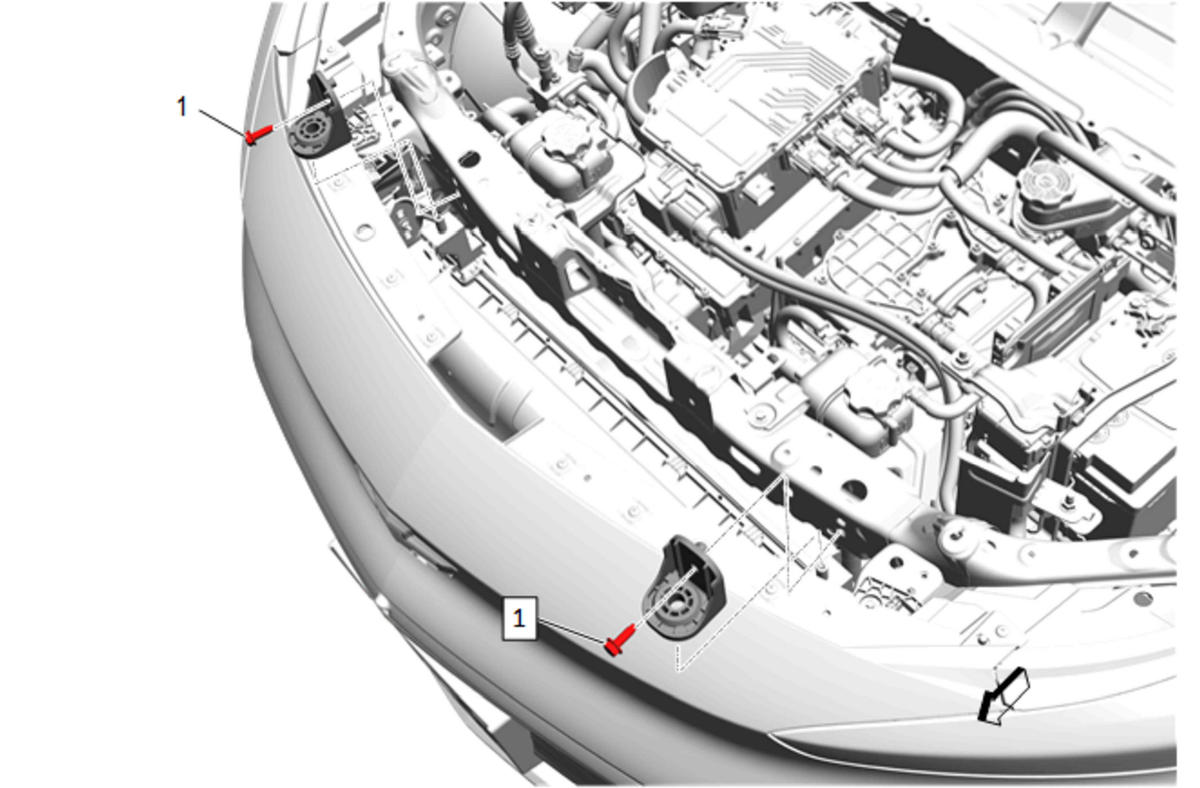

GM5760497Courtesy of GENERAL MOTORS COMPANY
Radiator Upper Bracket

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Upper Bracket Bolt [2x] - - 22 N.m (16 lb ft) Radiator Upper Bracket Replacement

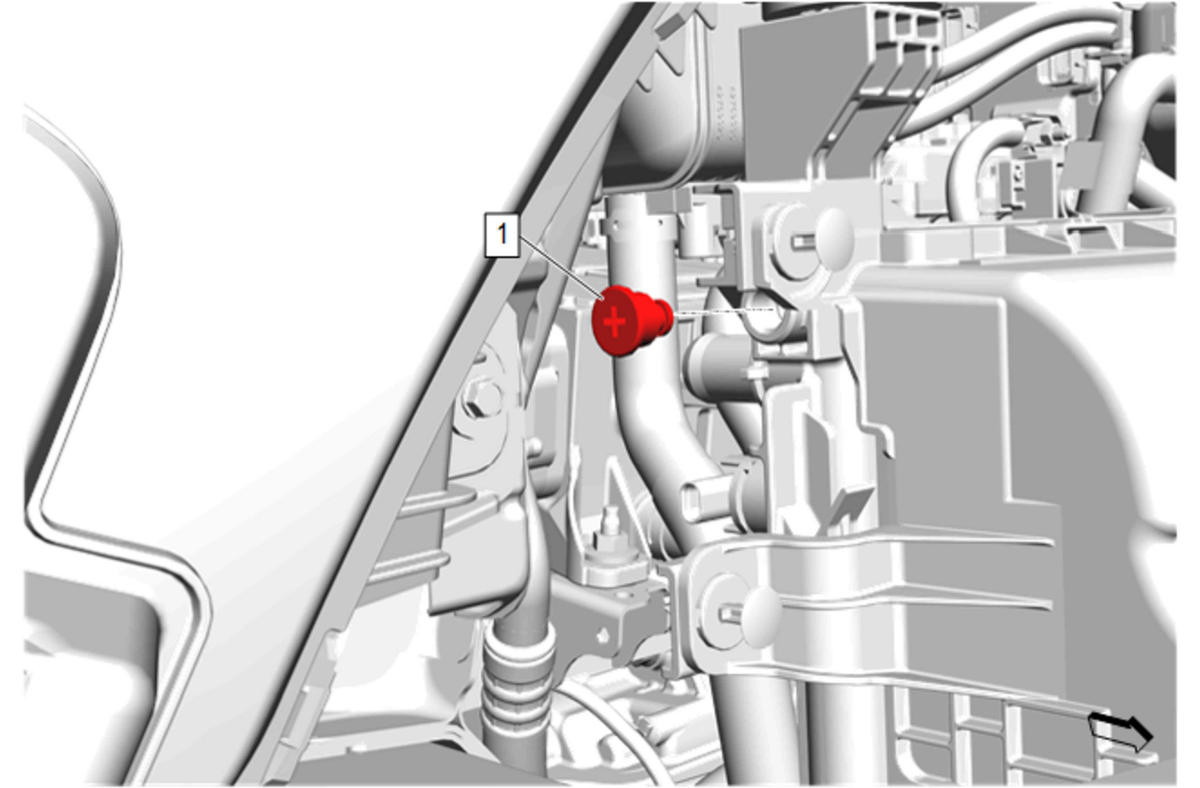

GM5671066Courtesy of GENERAL MOTORS COMPANY
Radiator Vent Valve

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Vent Valve - - 1.9 N.m (17 lb in) Radiator Vent Valve Replacement
