Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Manual Shift Auxiliary Position Switch (1) - Remove - Automatic Transmission Manual Shift Auxiliary Position Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

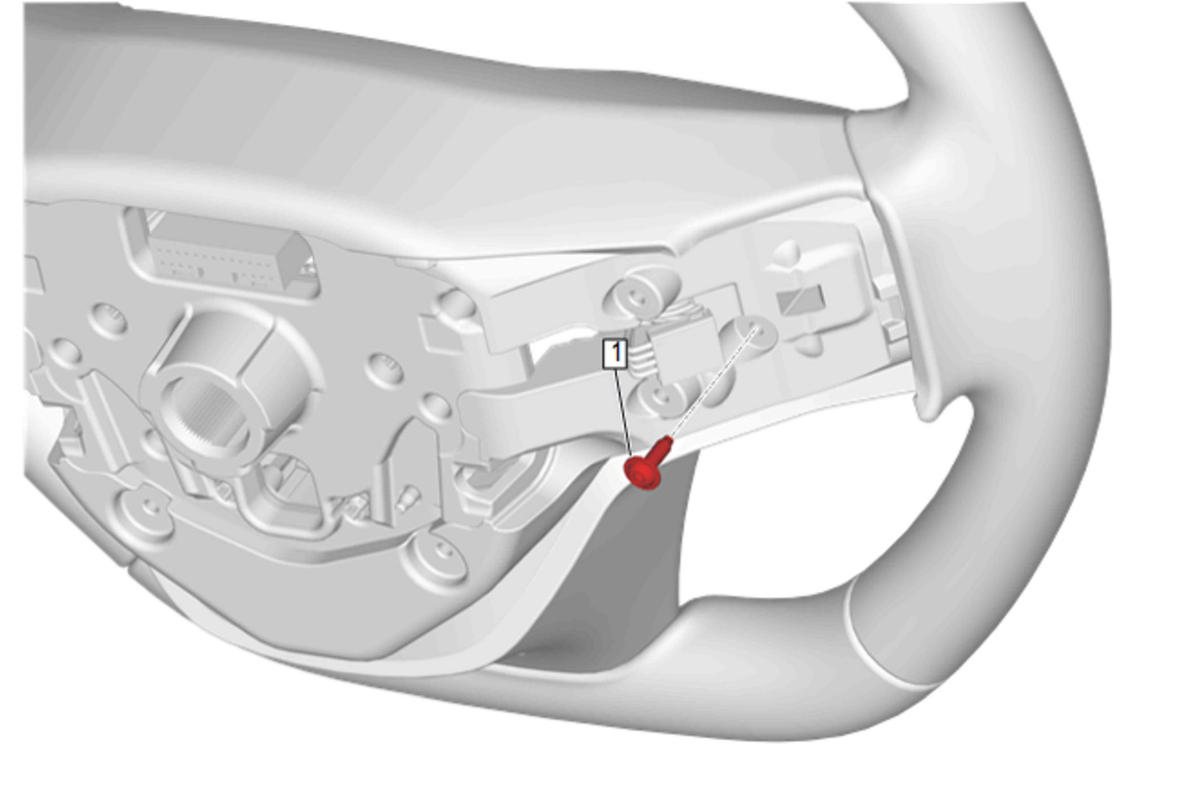

Steering Wheel Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch (1) - Remove
Disconnect the electrical connector (2).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Bolt (1) - Remove [3x]
Radio Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Trim Spoke Cover Applique (1) @ Cruise Control Switch (2) - Remove
