Communication Interface Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

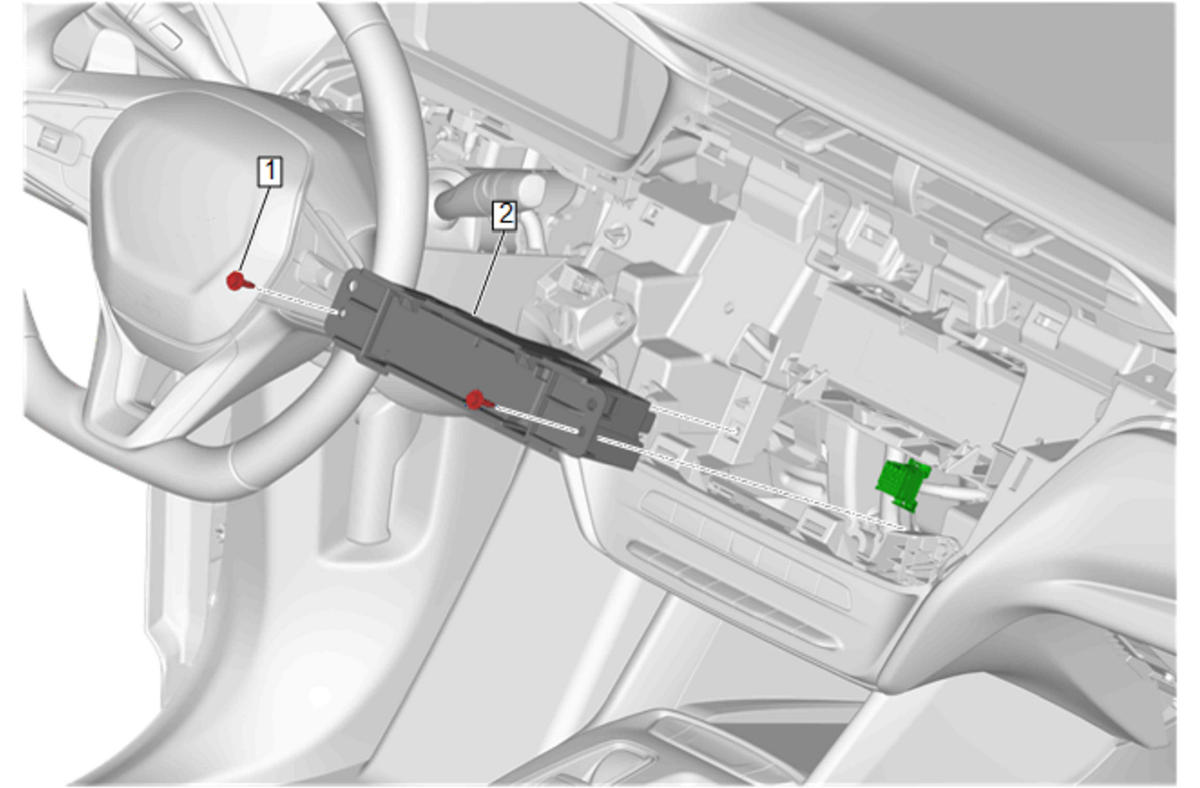

Callout	Component Name
Preliminary Procedure  Instrument Panel Accessory Center Trim Plate Replacement
1	Communication Interface Module Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure  Disconnect the electrical connectors.
