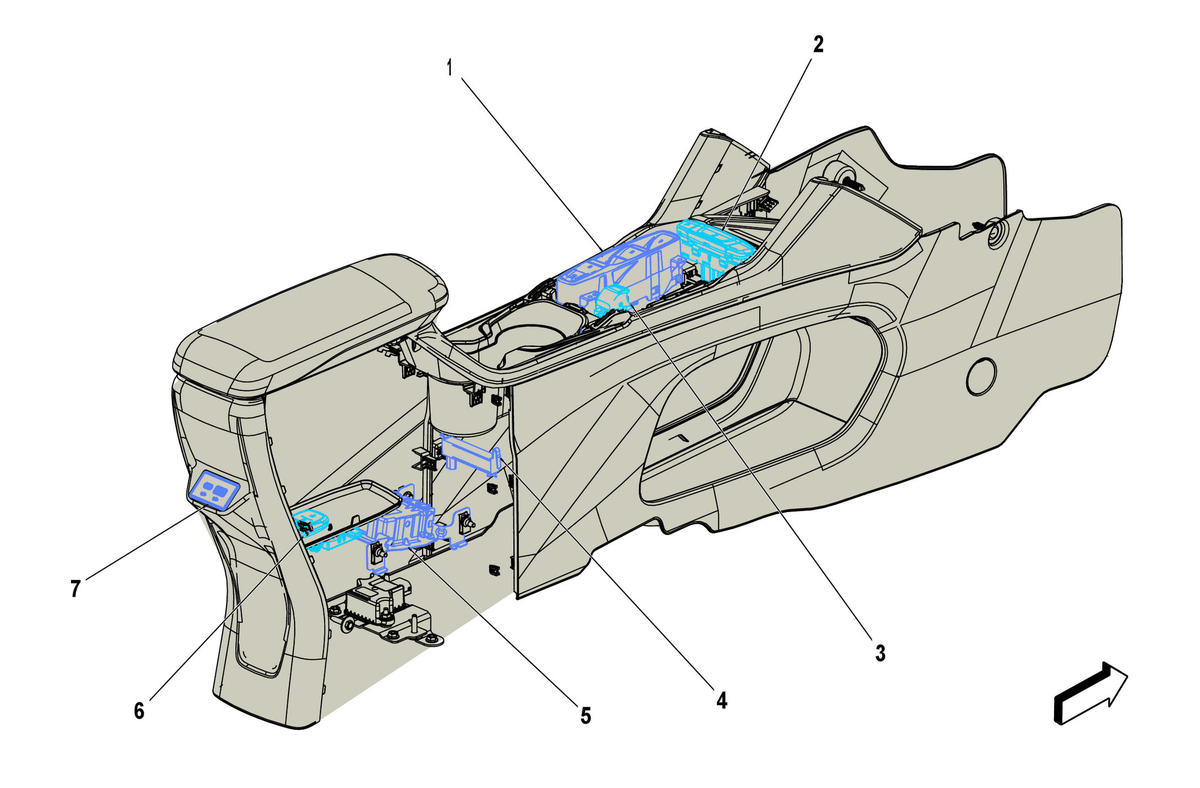

Center Console Components Top
Center Console Components Top
| Component Name | Callout |
|---|---|
| K212 Electronic Transmission Shift Control Push-button Circuit Board K212 Electronic Transmission Shift Control Push-button Circuit Board | 1 |
| S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel | 2 |
| S91 Park Brake Control Switch S91 Park Brake Control Switch | 3 |
| T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear | 4 |
| K132 Pedestrian Alert Sound Control Module K132 Pedestrian Alert Sound Control Module | 5 |
| K89 Immobilizer Control Module K89 Immobilizer Control Module | 6 |
| X92 USB Receptacle X92 USB Receptacle | 7 |
