Installation Procedure
Using a flat-bladed tool, release the engine control module (ECM) bracket retainer and slide the ECM and bracket assembly to the battery tray.

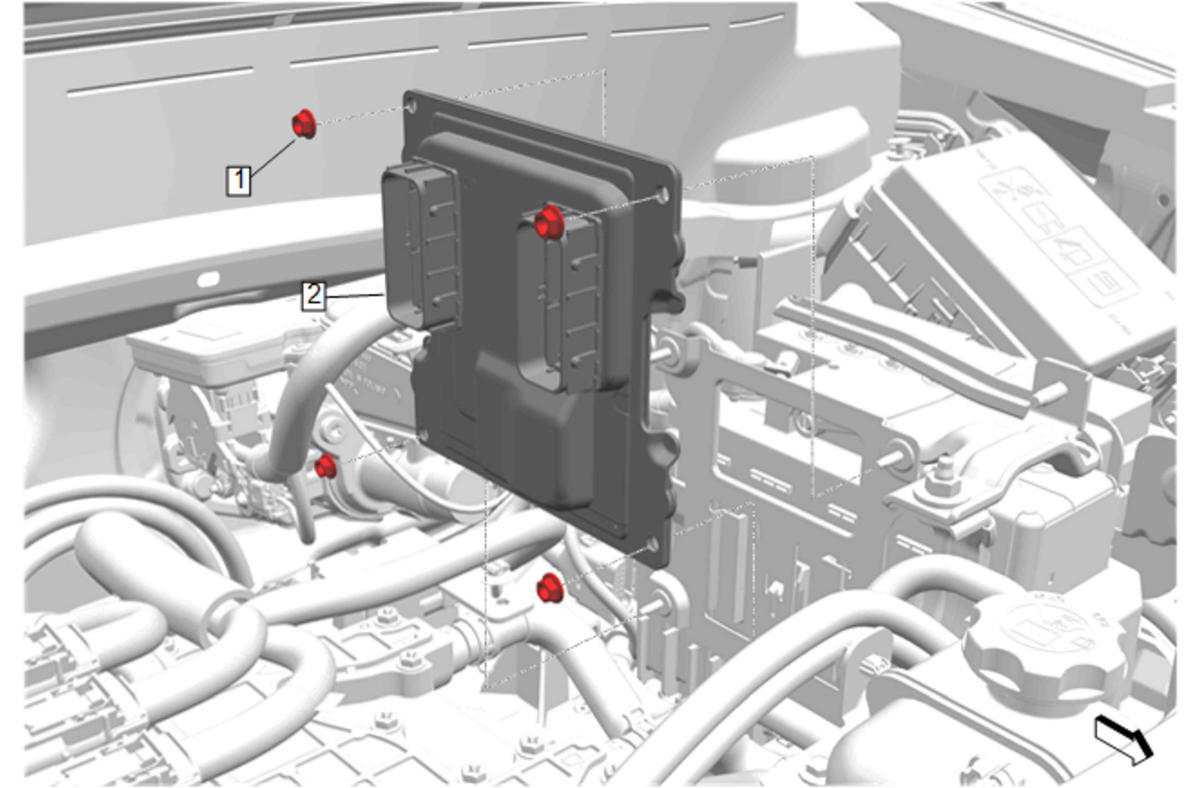

- Engine Control Module (2) - Install
- Engine Control Module Bracket Nut (1) - Install and tighten [4x] 4.7 N.m (42 lb in)

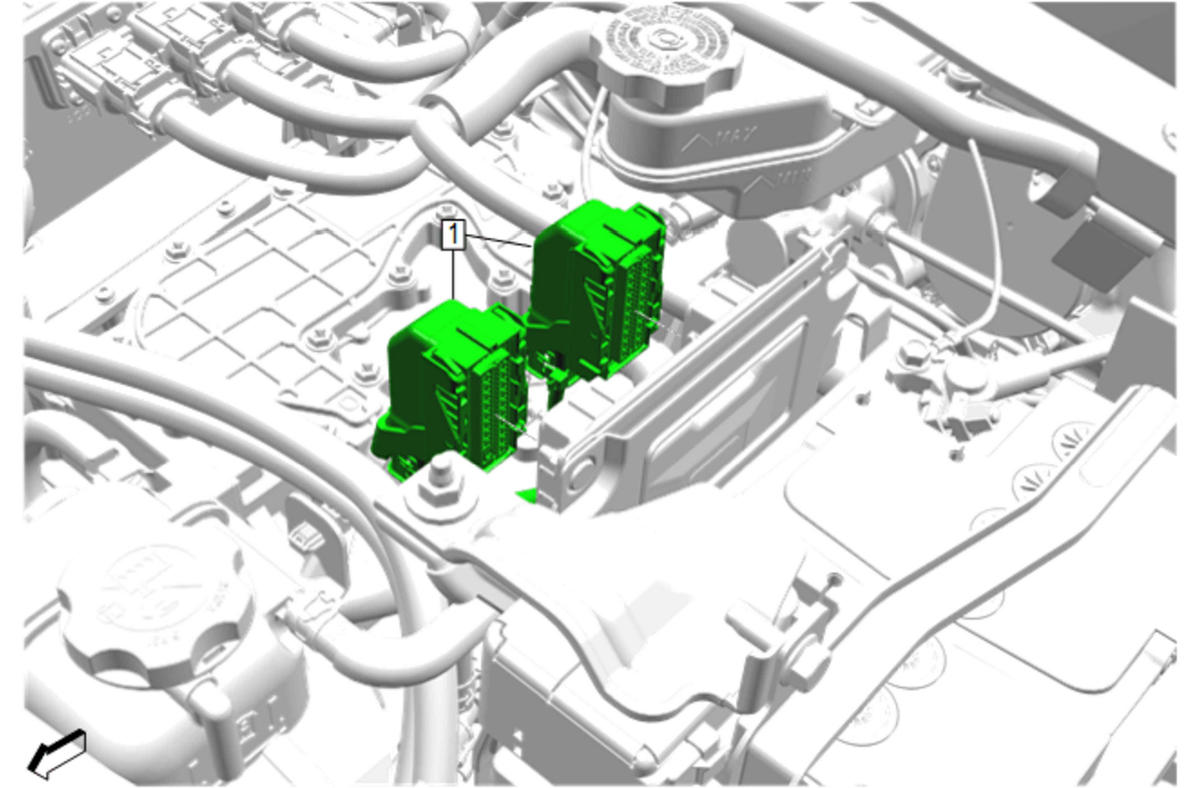

Connect the electrical connectors (1).
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- If replacing the engine control module, reprogram the module. Control Module References
CAUTION:
Refer to Fastener Caution .
