Installation Procedure

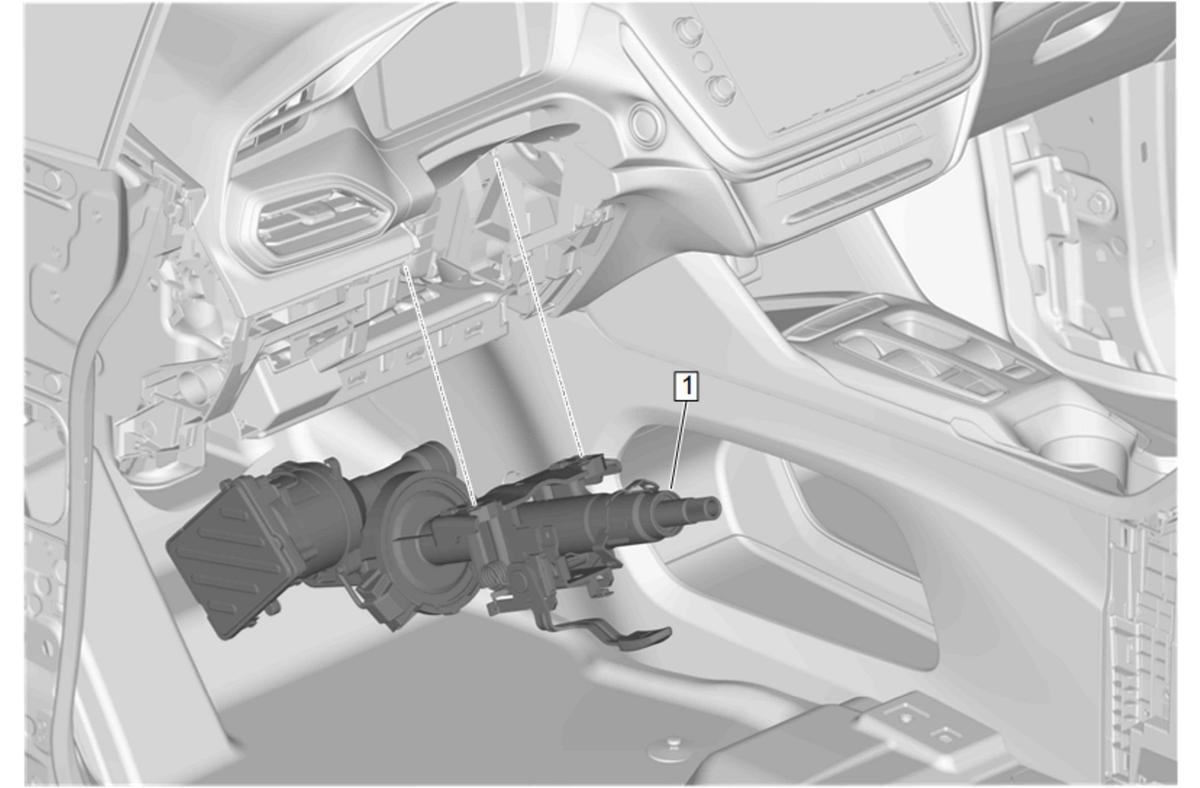

Steering Column (1) - Install
- Support the steering column.

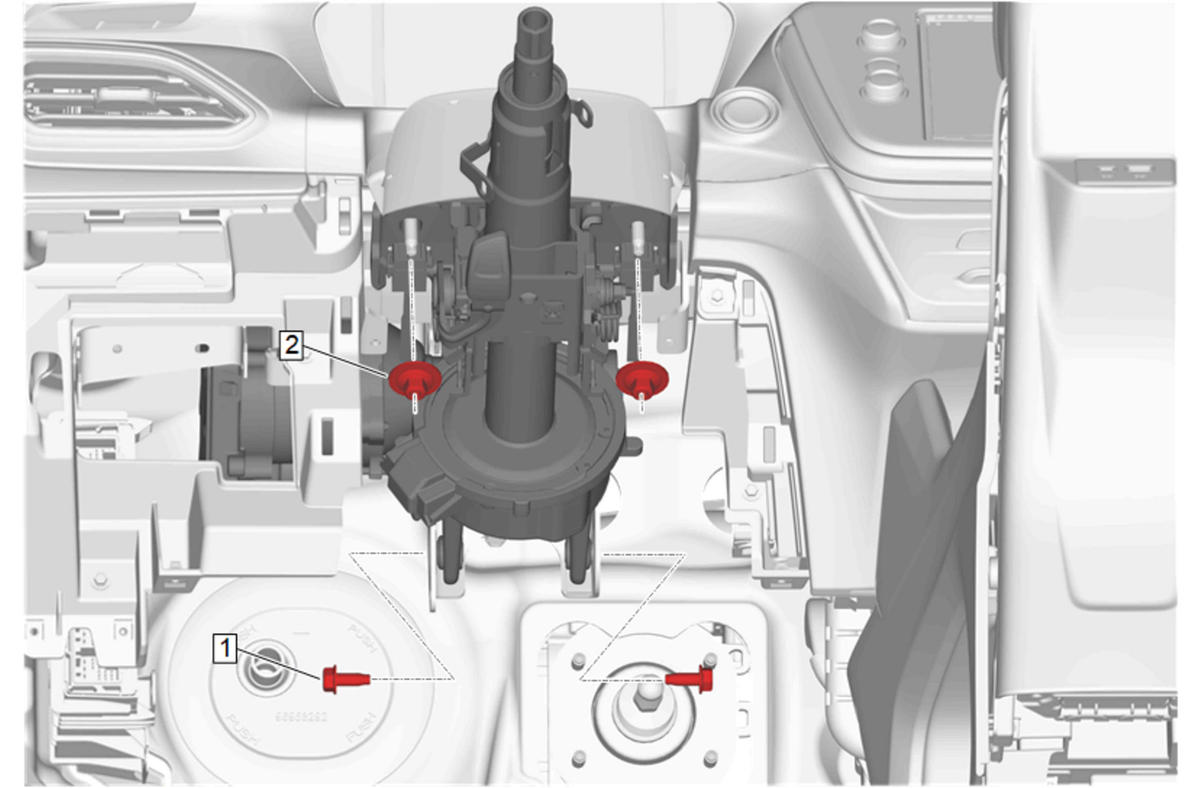

Steering Column Upper Support Bracket Nut (2) - Hand tighten [2x]
- Steering Column Lower Support Bracket Bolt (1) - Hand tighten [2x]
-
Courtesy of GENERAL MOTORS COMPANY
CAUTION:Refer to Fastener Caution .
CAUTION:Ensure all fasteners are securely seated before applying needed torque. Failure to do so may result in component damage or malfunctioning of steering column.
Tighten the 2 steering column lower support bracket bolts (1) and the 2 steering column upper support bracket nuts (2) in the sequence shown to 22 N.m (16 lb ft).
- Remove the support from the steering column.
- Position the wiring harness and connect the electrical connectors as necessary.

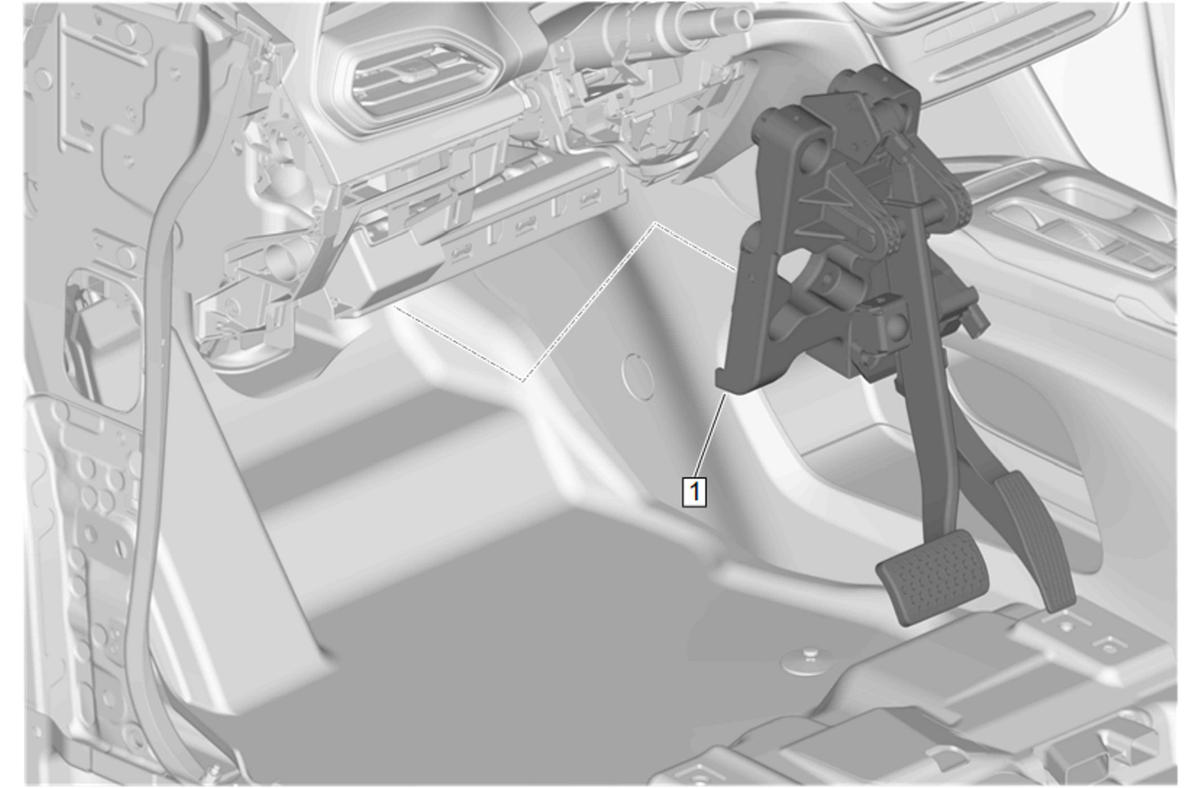

Brake and Accelerator Pedal Assembly (1) - Install - Brake and Accelerator Pedal Assembly Replacement

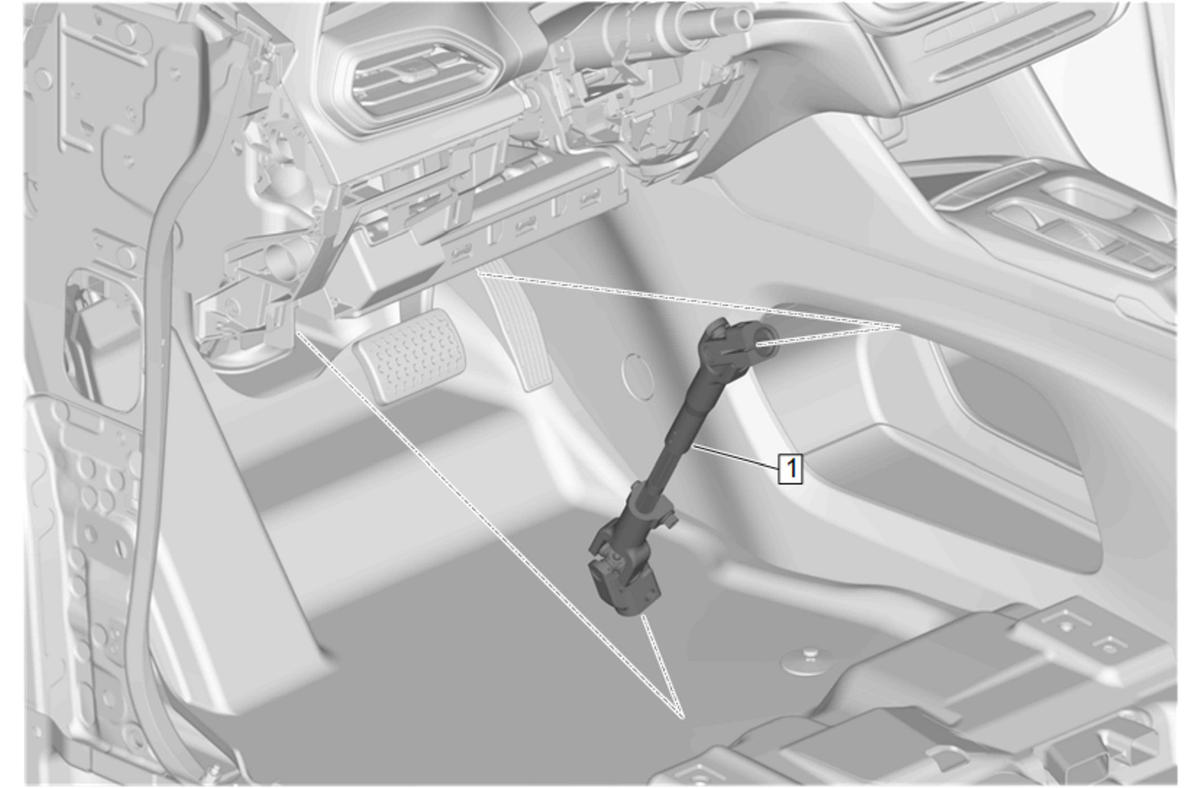

Intermediate Steering Shaft (1) - Install - Intermediate Steering Shaft Replacement

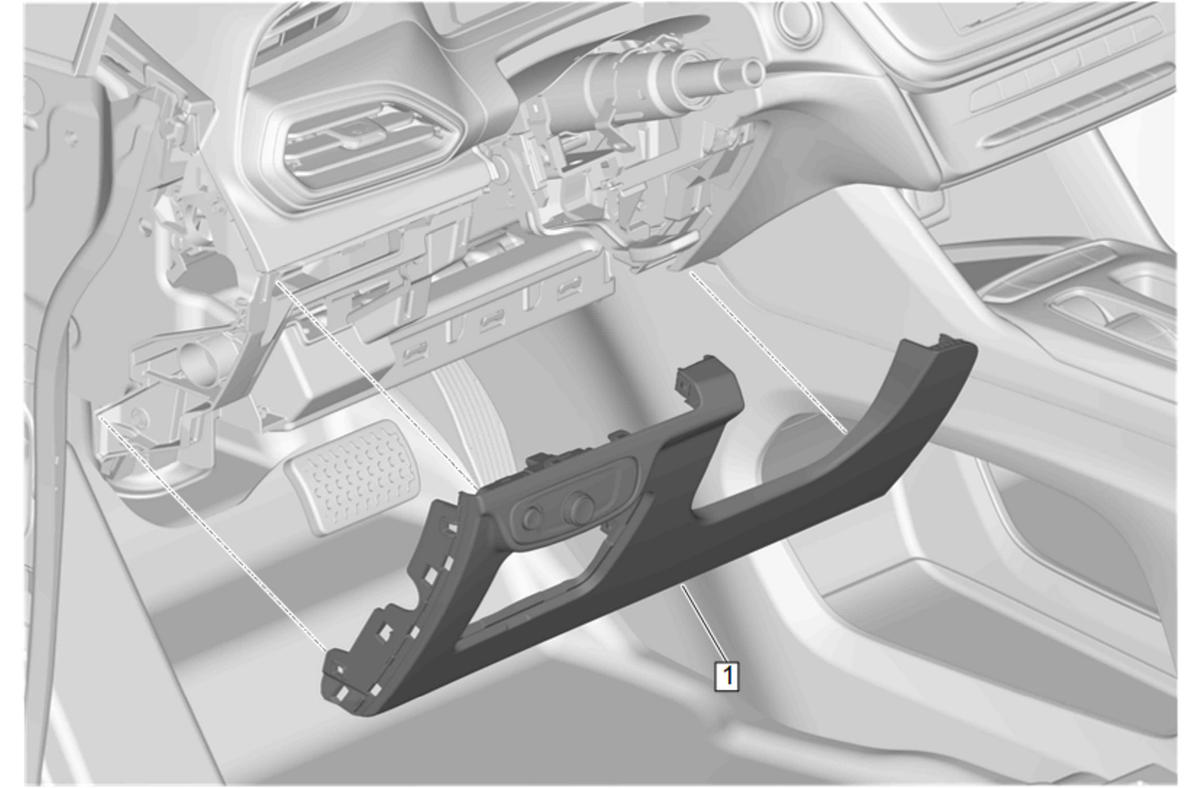

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

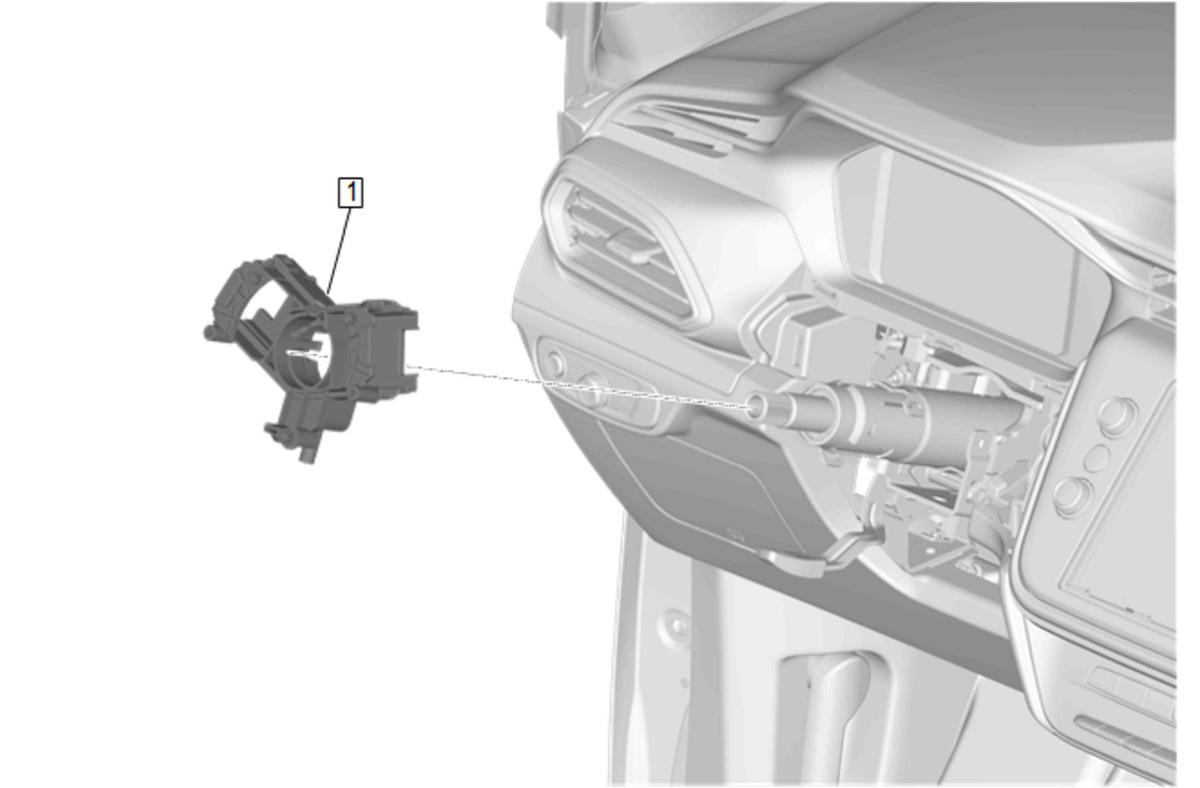

Turn Signal Switch Bracket (1) - Install - Turn Signal Switch Bracket Replacement

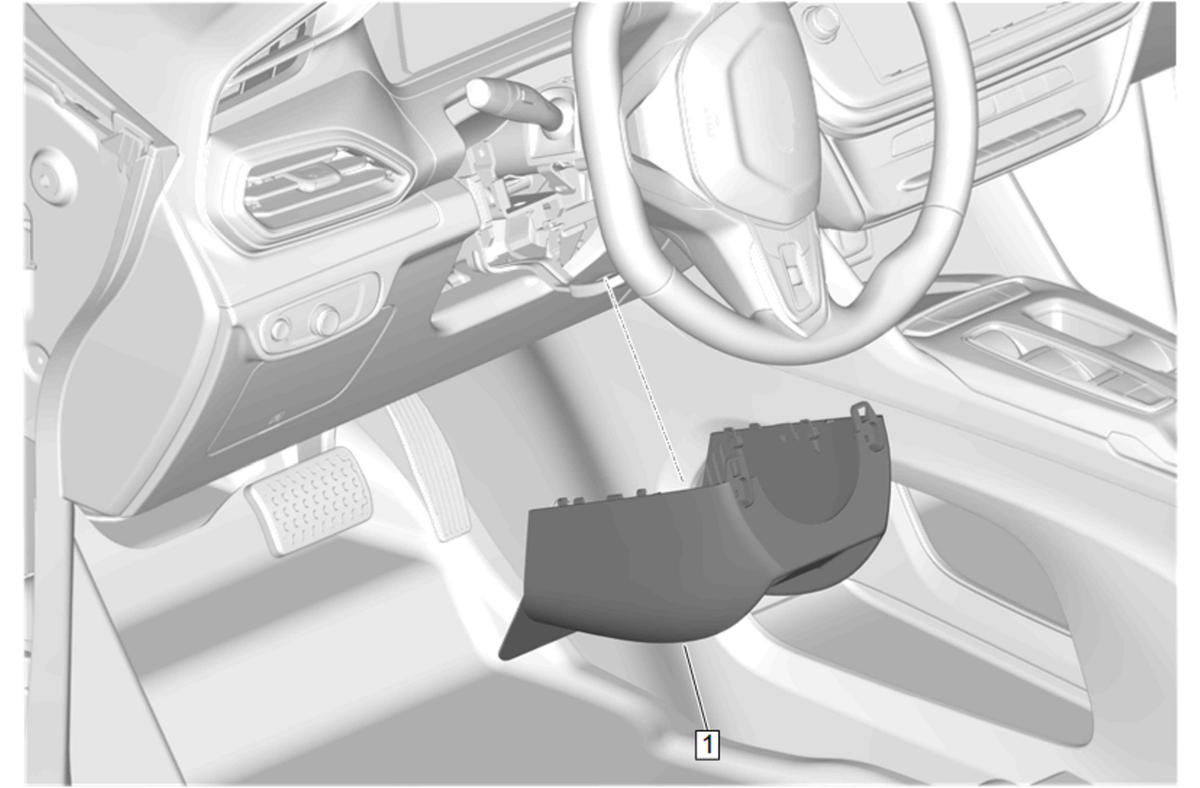

Steering Column Lower Trim Cover (1) - Install - Steering Column Lower Trim Cover Replacement

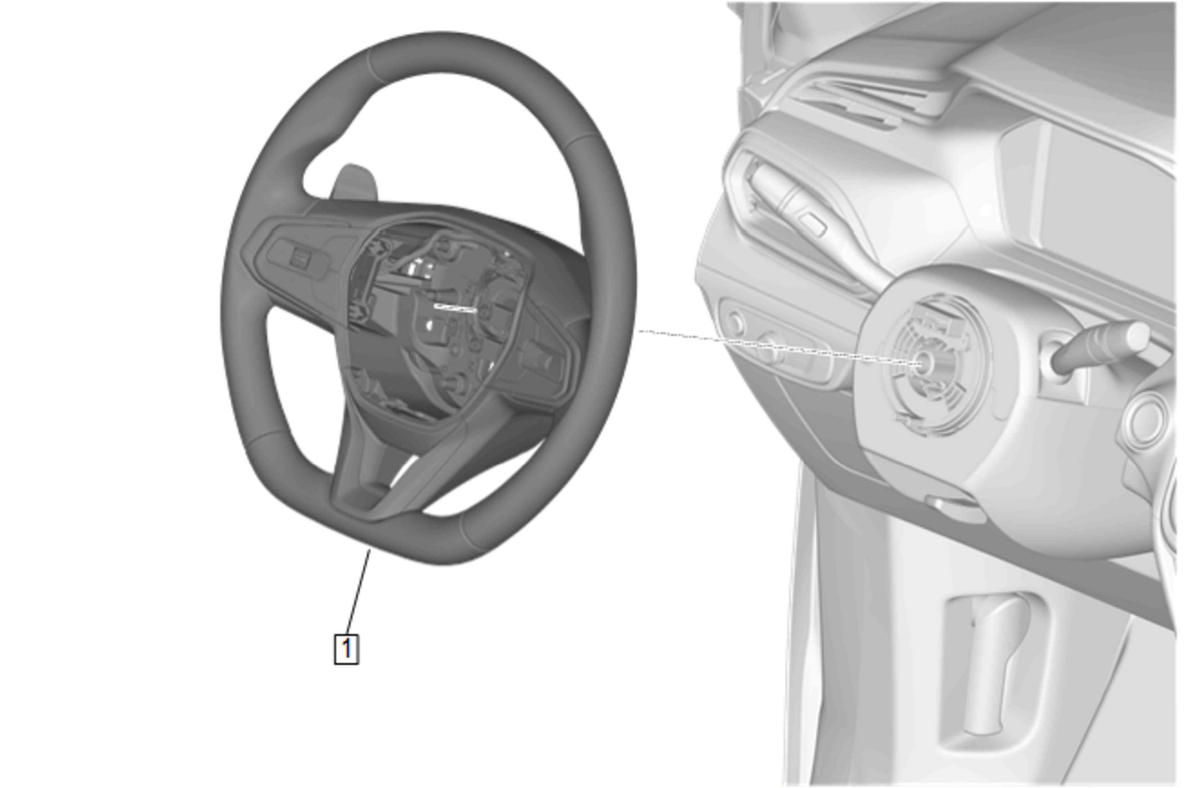

Steering Wheel (1) - Install - Steering Wheel Replacement
- Enable the SIR System. SIR Disabling and Enabling
- Perform any necessary programming and setup procedures: Control Module References
- Center the steering angle sensor. Steering Wheel Angle Sensor Centering
