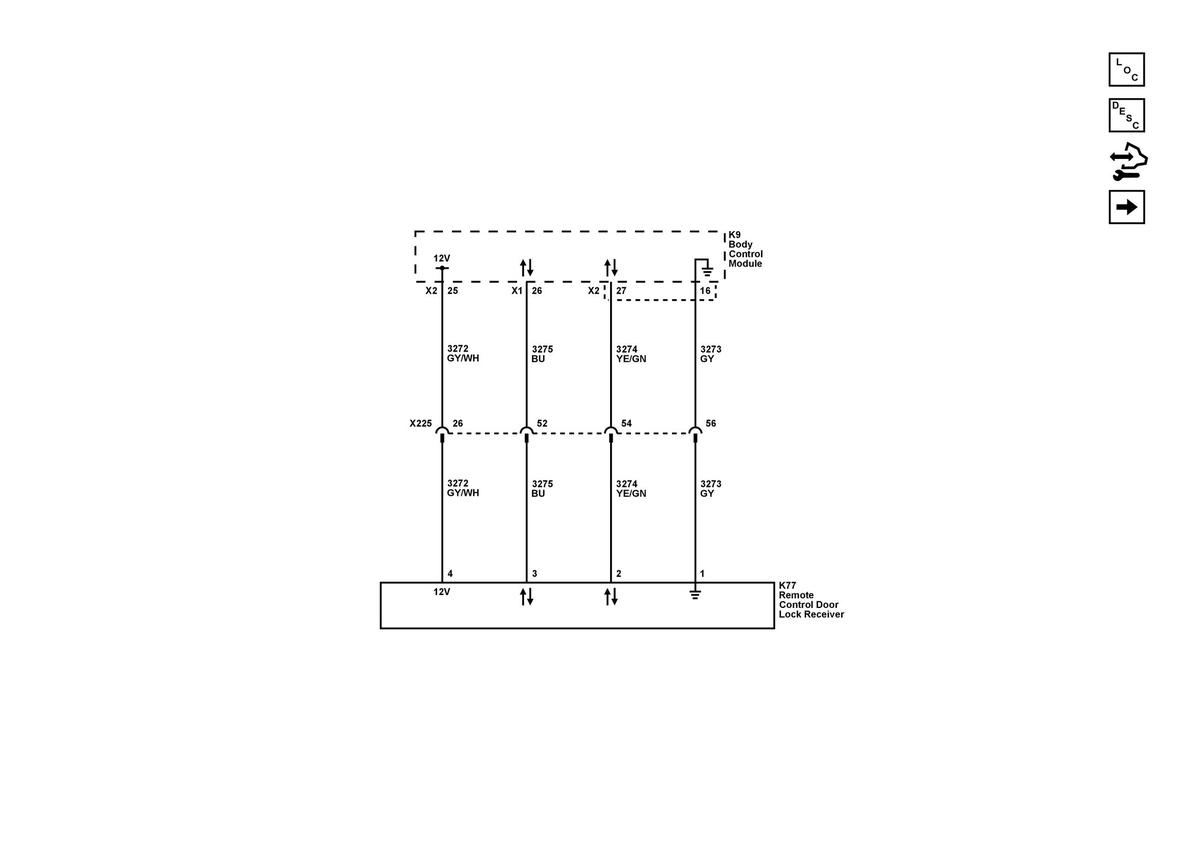

Home › Chevrolet › 2022 › Camaro LS, Automatic Trans › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
