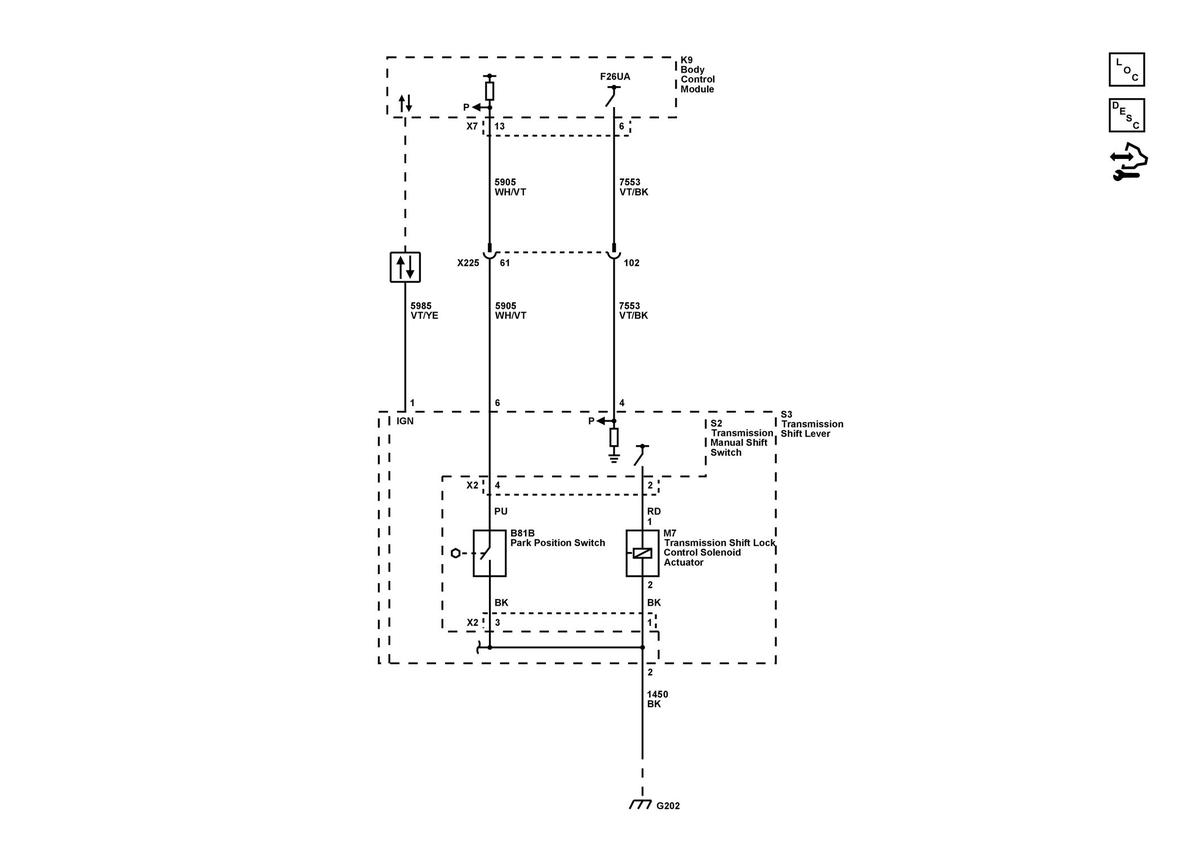

Home › Chevrolet › 2022 › Camaro LS, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
